Drop Deck Extendable trailers for sale

Designed for flexibility and strength, our drop deck extendable trailers are engineered to transport oversized loads safely across Australia’s most challenging environments. Each trailer is custom-built to fit your specific hauling demands. We also customise our trailers for your business with striking, hand-painted scrollwork that represents your brand.

Get in touch today to find the ideal drop deck extendable trailer for your business needs.

Call Us Now Send An Enquiry

About Our Drop Deck Extendable

Because cargo comes in all sizes, our extendable drop decks telescope to match your load, providing the adaptability you need for diverse transport operations.

Telescopic extension system
Adjustable length for varying loads
Secure locking when extended
Flexible configuration options
Reliable extension mechanism
Customised hand-painted scrollwork

Call Us Now

why choose our drop deck extendable

Your cargo changes, so our trailers keep pace. We design extendable trailers that adapt to your requirements, giving you the freedom to transport with fewer limits.

We are also known for:

Flexibility where one trailer can handle multiple load sizes

Brand new, fully customisable trailers

Australia-wide delivery and support

Building trailers for versatility

Quality engineering throughout

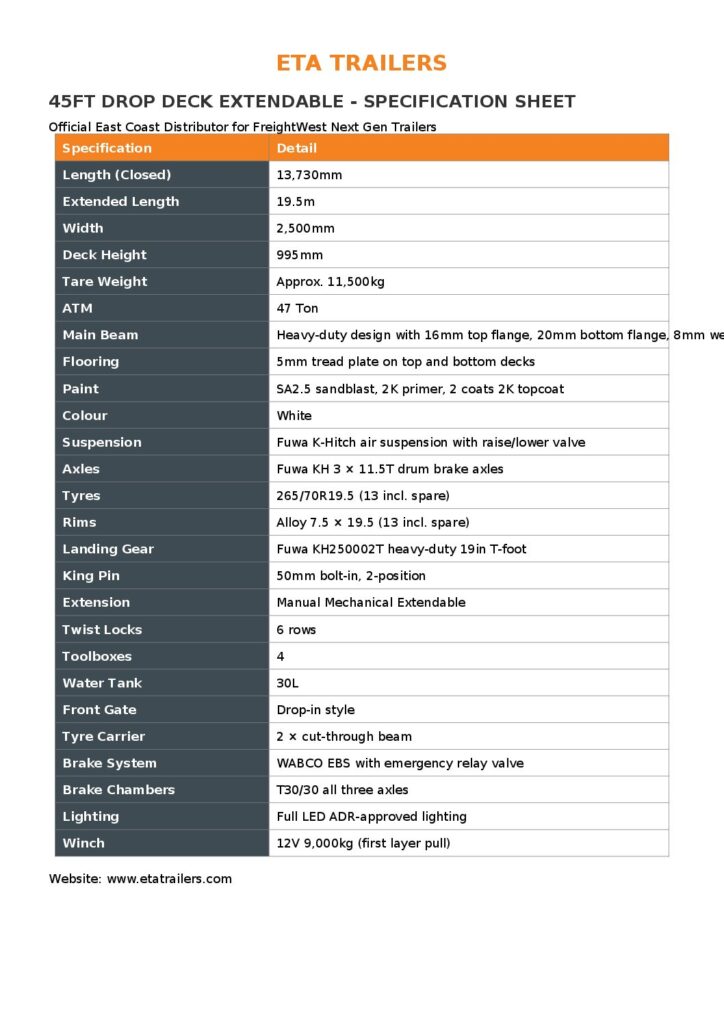

trailer specifications

Specification	Detail
Length (Closed)	13,730mm
Extended Length	19.5m
Width	2,500mm
Deck Height	995mm
Tare Weight	Approx. 11,500kg
ATM	47 Ton
Main Beam	Heavy-duty design with 16mm top flange, 20mm bottom flange, 8mm we
Flooring	5mm tread plate on top and bottom decks
Paint	SA2.5 sandblast, 2K primer, 2 coats 2K topcoat
Colour	White
Suspension	Fuwa K-Hitch air suspension with raise/lower valve
Axles	Fuwa KH 3 × 11.5T drum brake axles
Tyres	265/70R19.5 (13 incl. spare)
Rims	Alloy 7.5 × 19.5 (13 incl. spare)
Landing Gear	Fuwa KH250002T heavy-duty 19in T-foot
King Pin	50mm bolt-in, 2-position
Extension	Manual Mechanical Extendable
Twist Locks	6 rows
Toolboxes	4
Water Tank	30L
Front Gate	Drop-in style
Tyre Carrier	2 x cut-through beam
Brake System	WABCO EBS with emergency relay valve
Brake Chambers	T30/30 all three axles
Lighting	Full LED ADR-approved lighting
