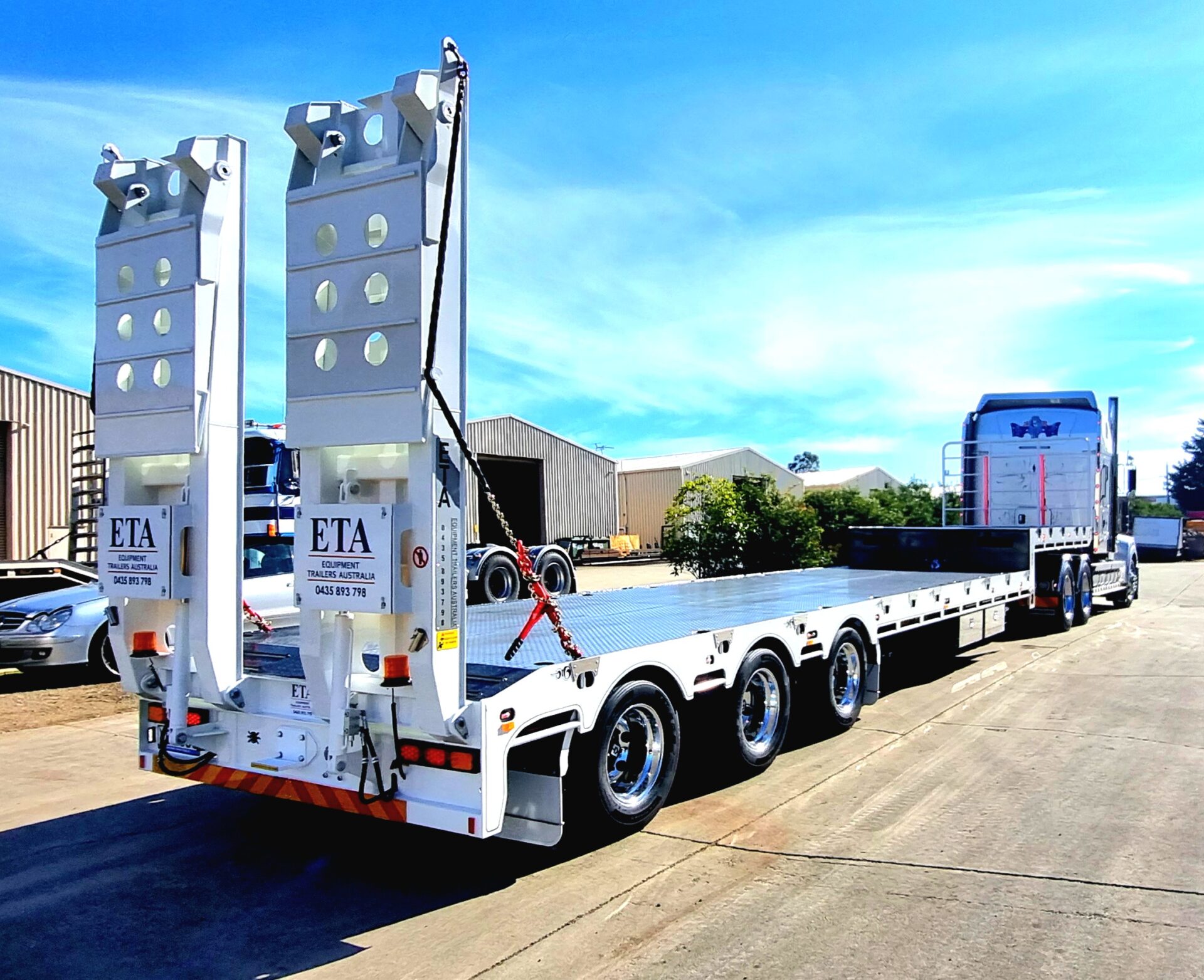

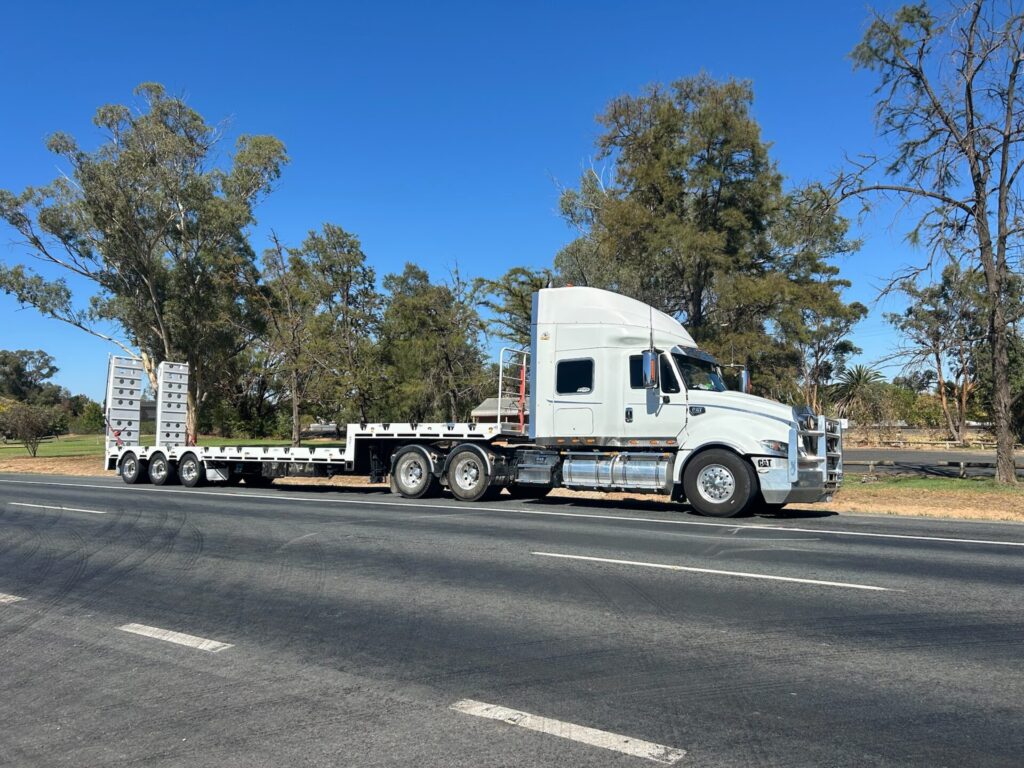

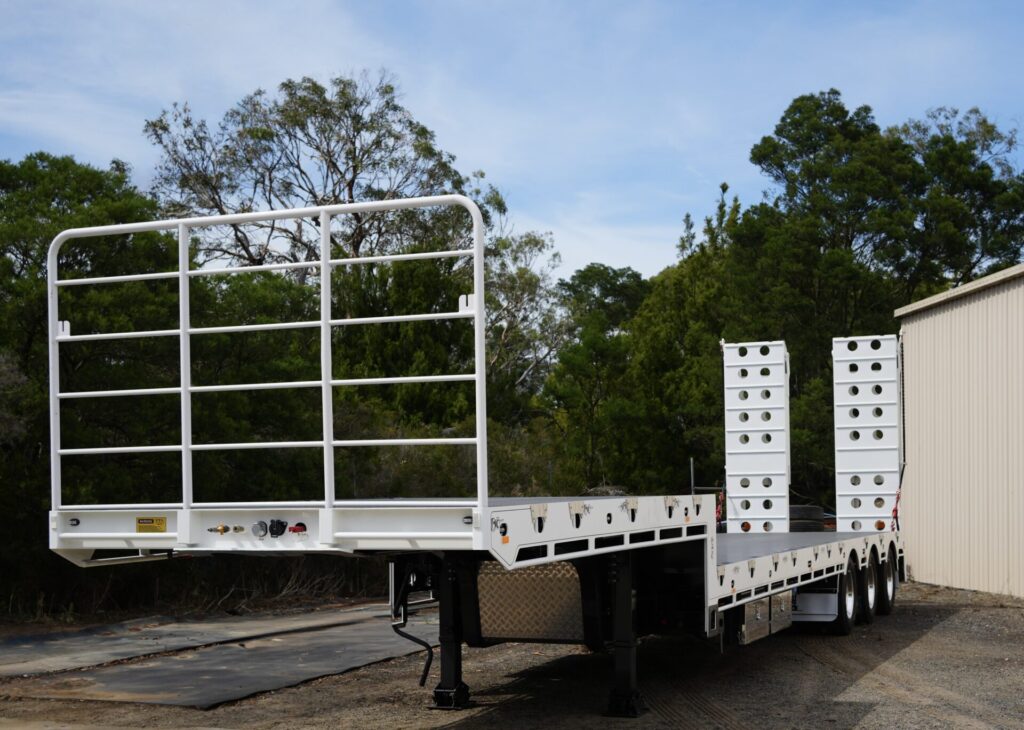

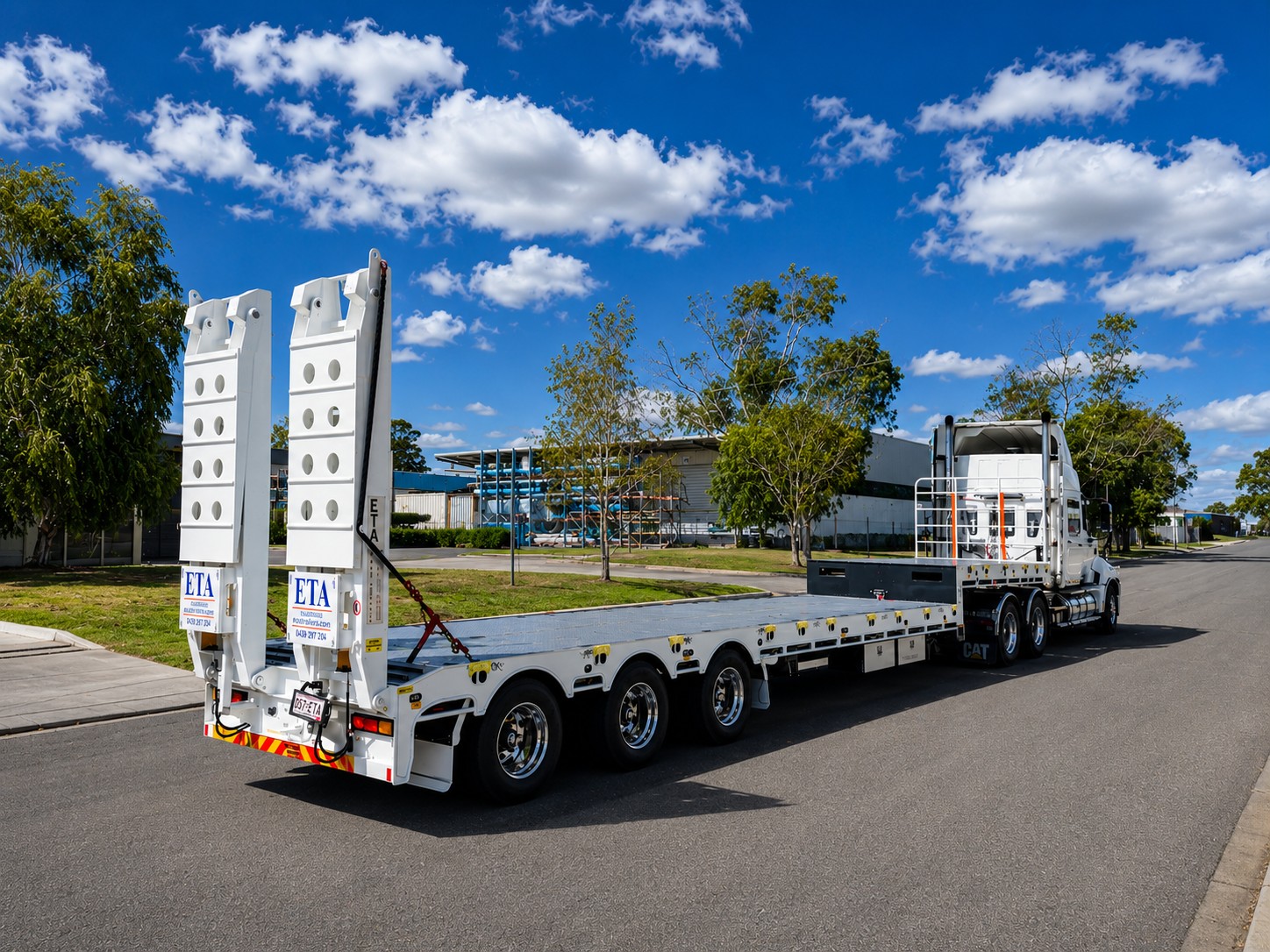

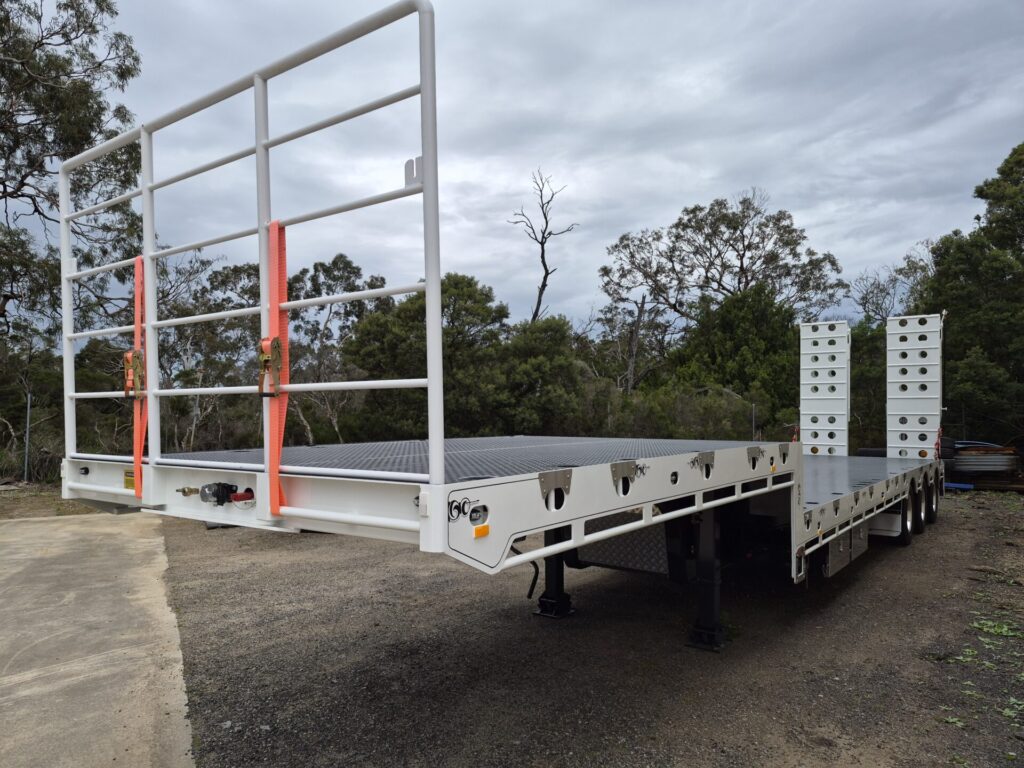

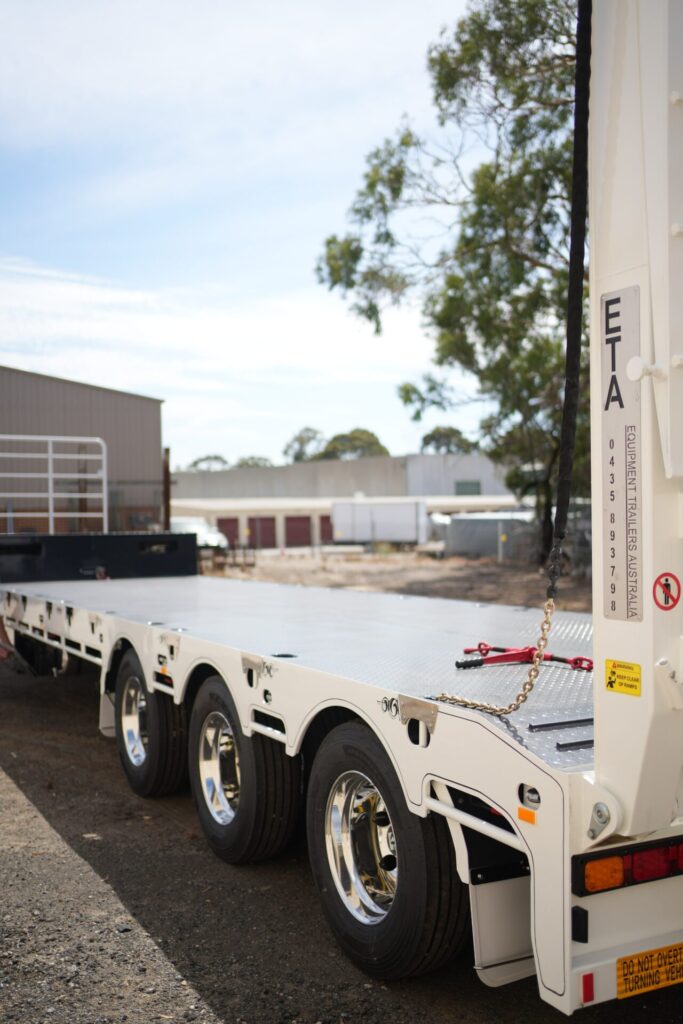

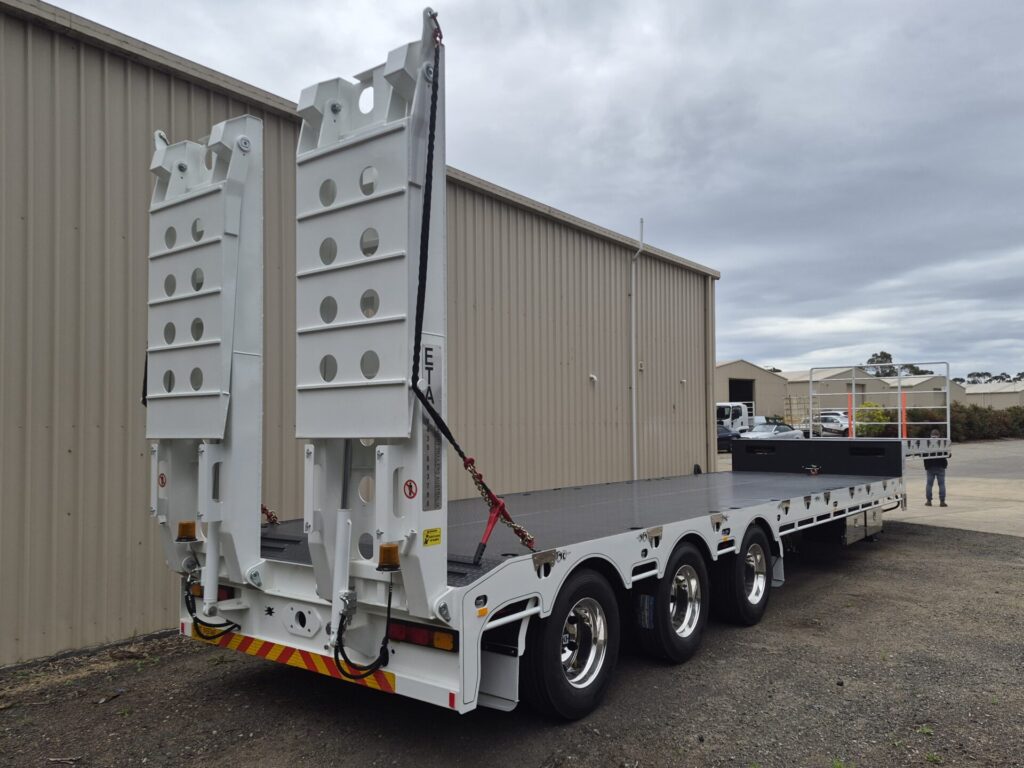

45ft Freightwest Next Gen Drop Deck
Official East Coast Distributor for FreightWest Next Gen Trailers.
Built with Australian-spec running gear, WABCO EBS and a premium finish, the FreightWest Next Gen 45ft Drop Deck is designed for serious transport operators.
Contact us today to discuss the perfect drop deck trailer for your business.

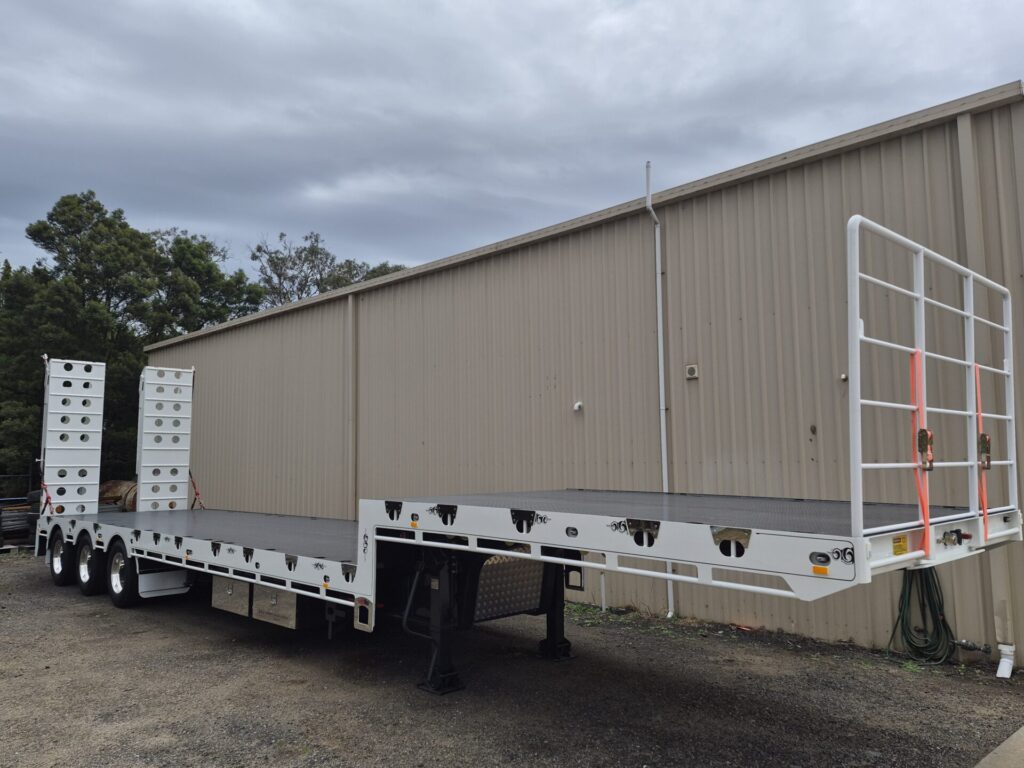

About Our 45ft Drop Deck
Built to deliver strength and versatility, our drop deck trailers handle heavy loads and delivered Australia wide. Every trailer is built to suit individual business hauling requirements, combining rugged construction with finishes that reflect quality and dependability.
why choose our drop deck
Our Drop Deck ensure easy loading, versatile equipment handling, safer access and robust reliability.
We are also known for:
Australian Owned Company
Nationwide Delivery
Backed by ETA Warranty & Support
trailer features
General Specifications
| Length | 13,730mm |
| Width | 2,500mm |
| Deck Height | 995mm |
| Tare Weight | Approx. 10,200kg |
| ATM | 47 Ton |
Construction
| Main Beam | Heavy-duty design with 16mm top flange, 20mm bottom flange, 8mm web plate |

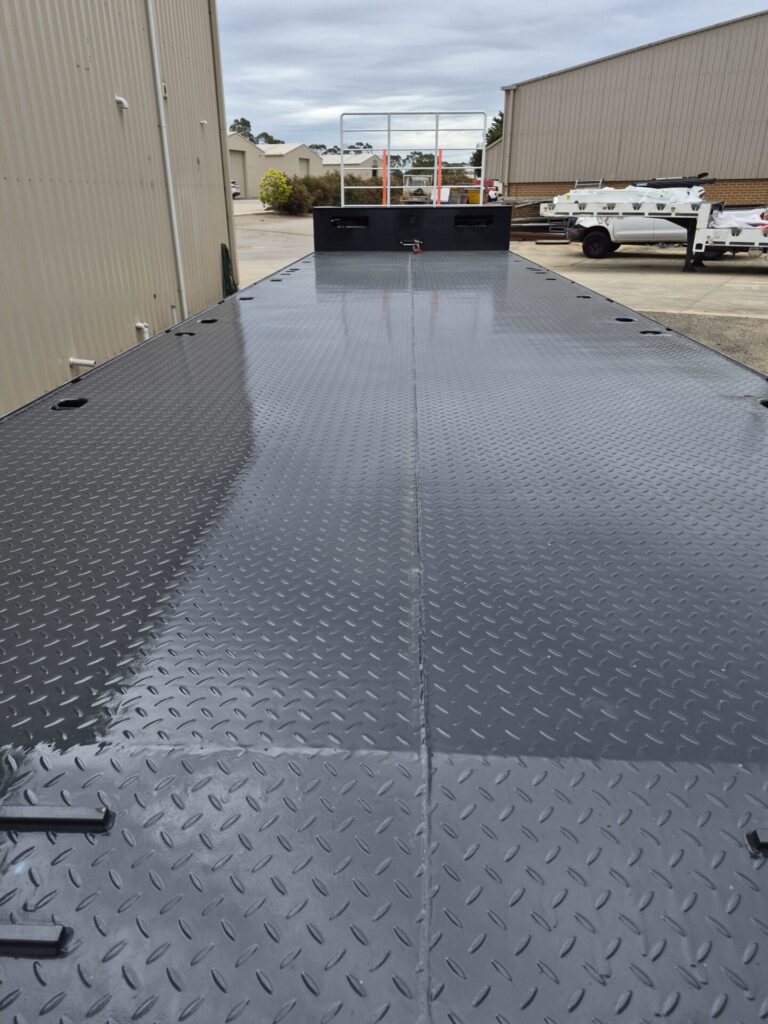

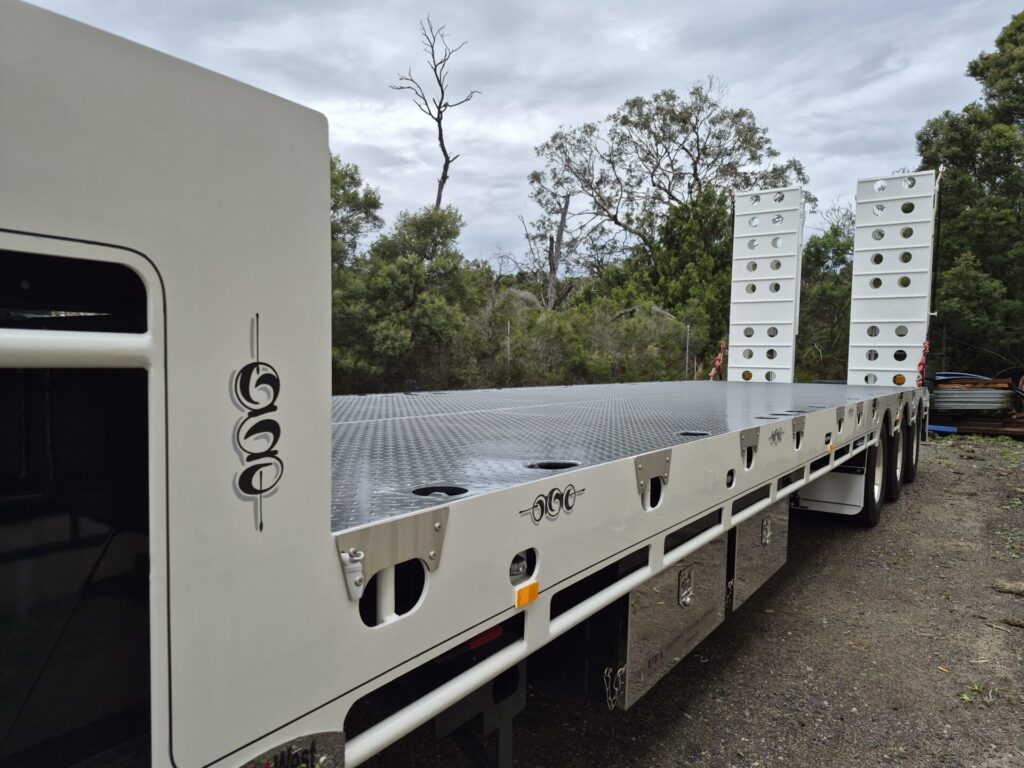

| Flooring | 5mm tread plate on both top and bottom decks |
| Sandblasting & Paint | Sa2.5 sandblasting, 2K primer, finished with 2 coats of 2K topcoat |
| Colour | White |

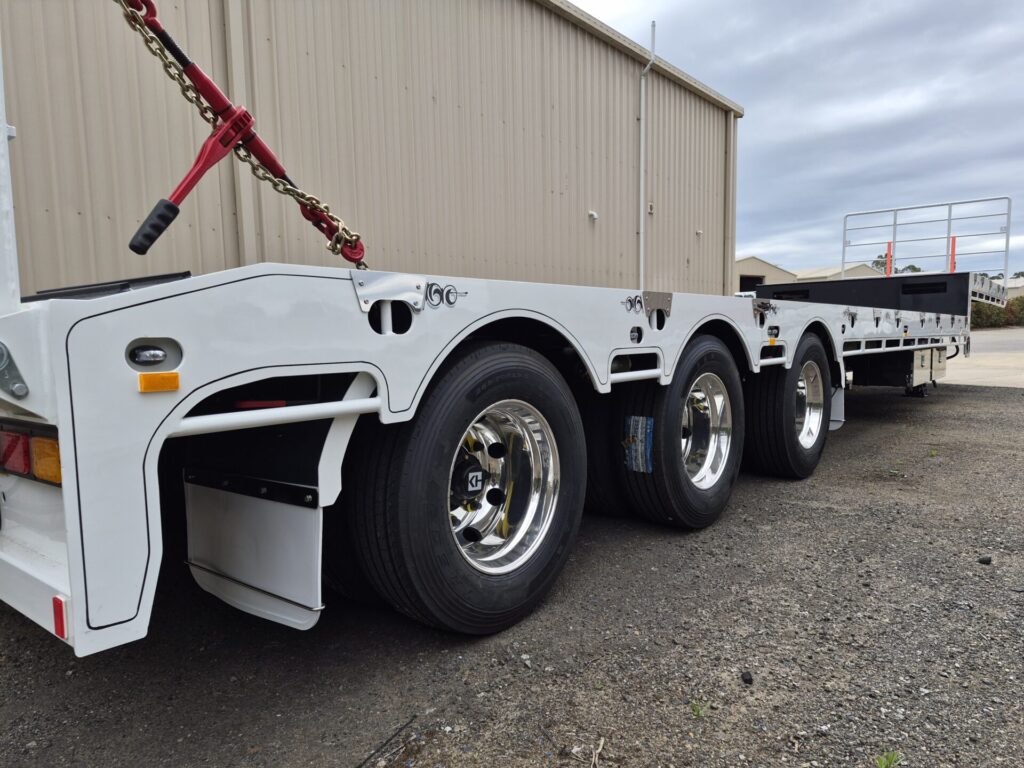

Running Gear
| Suspension | Fuwa K-Hitch air suspension with raise/lower valve |
| Axles | Fuwa KH 3 x 11.5T drum brake axles |
| Tyres | 265/70 R19.5, 18-ply – 13 supplied (includes spare) |
| Rims | Alloy 7.5 x 19.5 – 13 supplied (includes spare) |

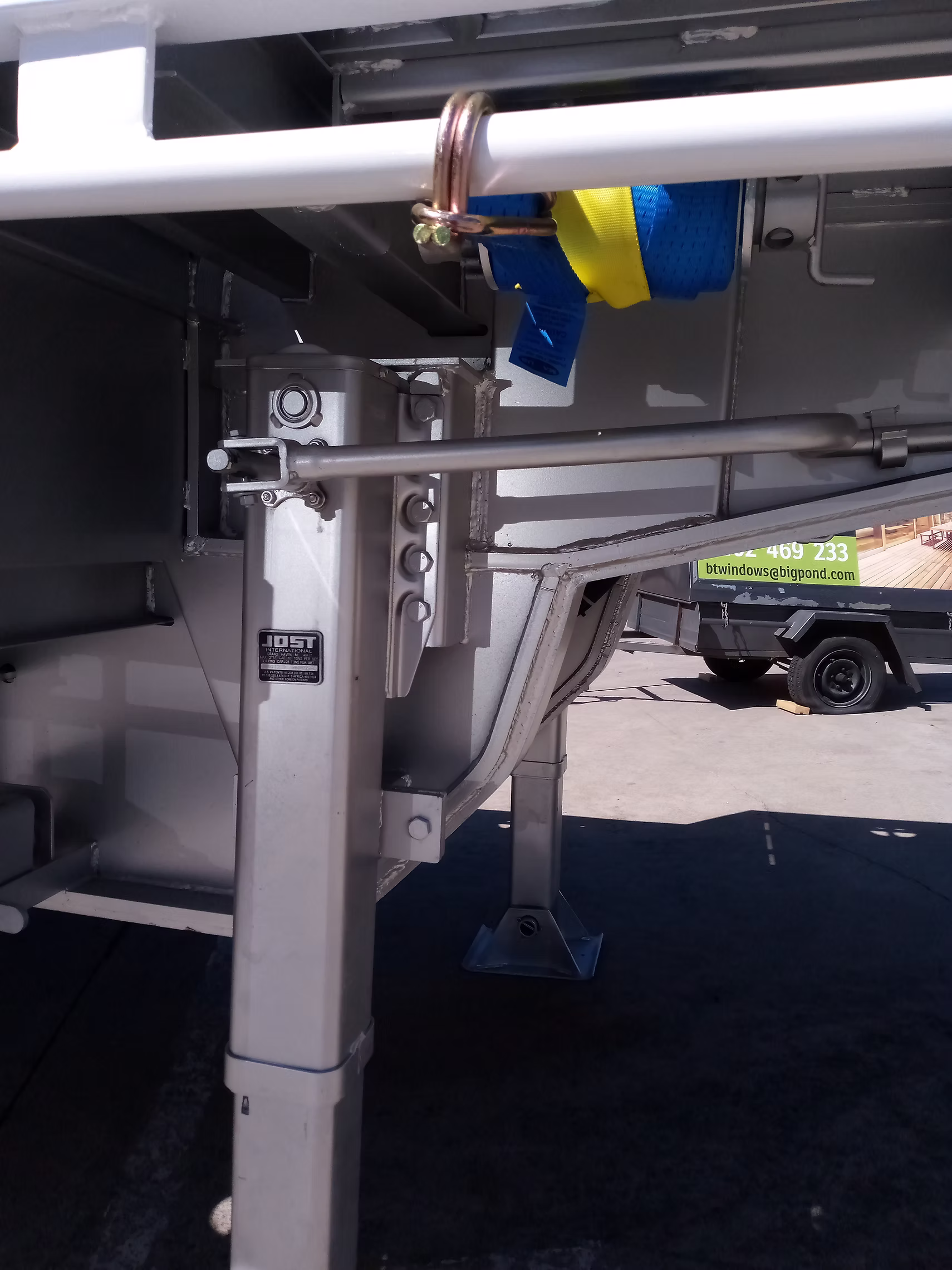

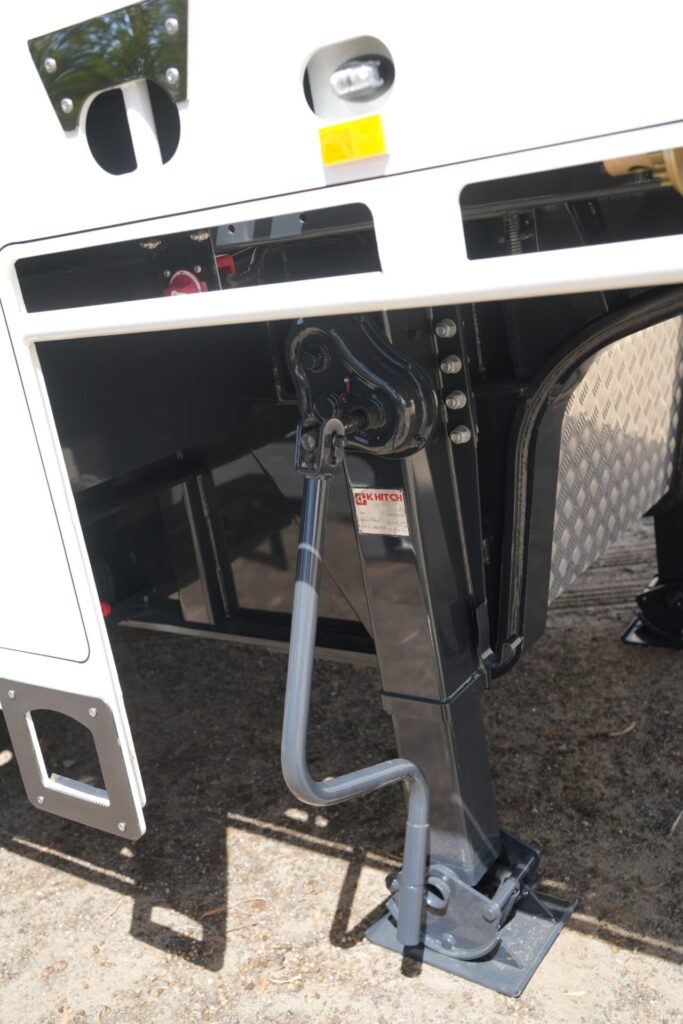

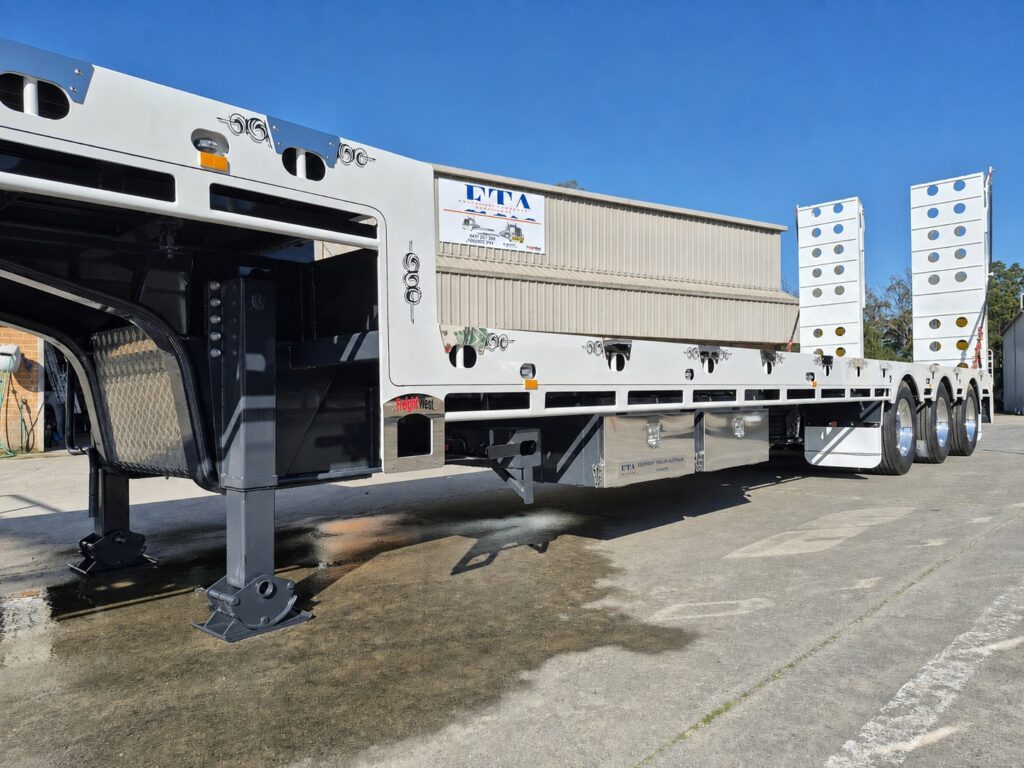

| Landing Gear | Fuwa KH250002T, heavy-duty 19” T-foot |
| King Pin | 50mm bolt-in, 2-position |
Features

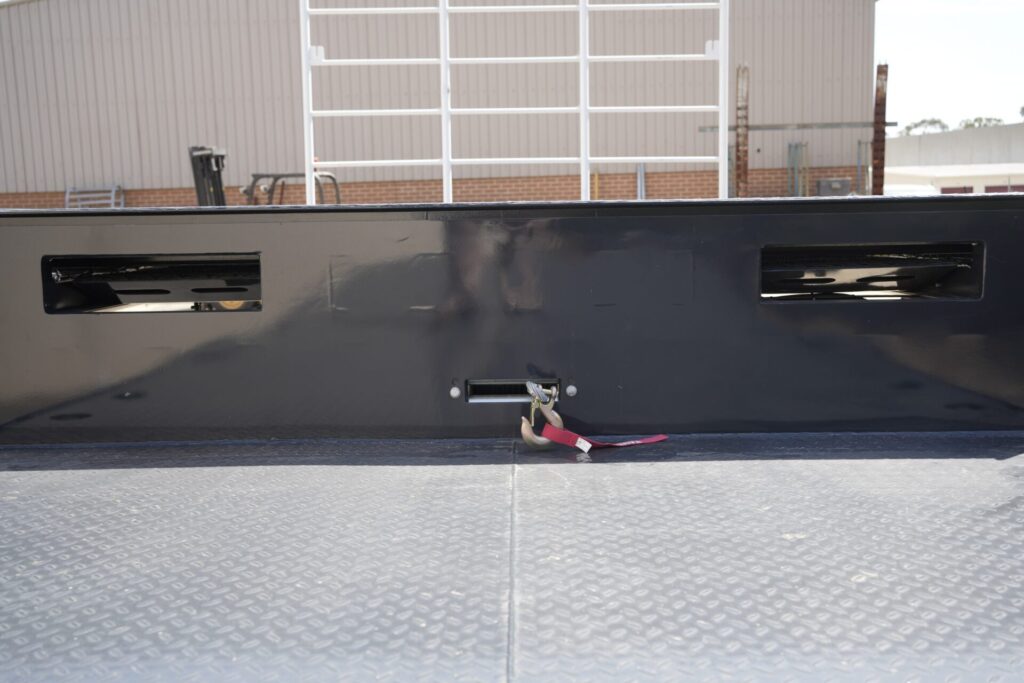

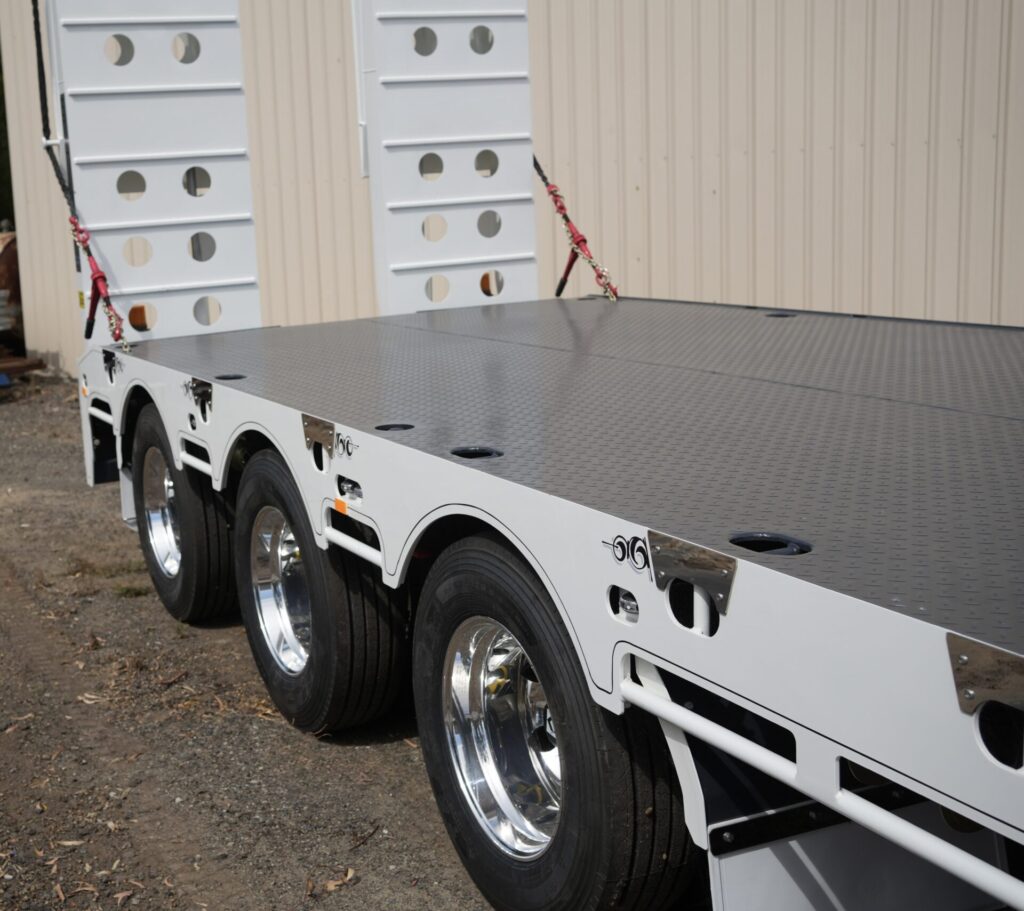

| Tie Downs | 9 sliding tie-downs (3 on top deck, 6 on bottom deck) |
| Twist Locks | 6 rows – suit 1x40ft, 2x20ft, or 1x20ft container |

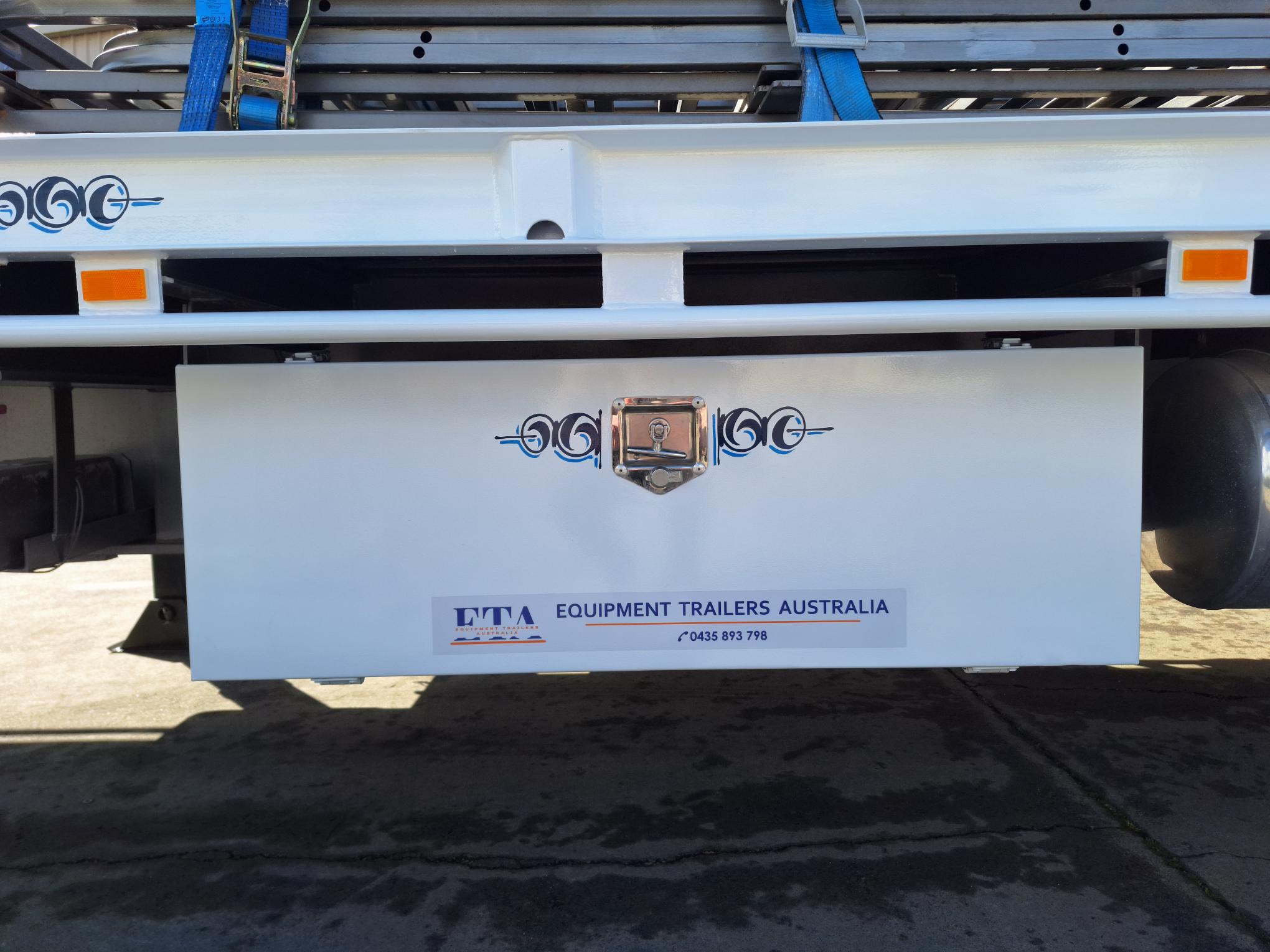

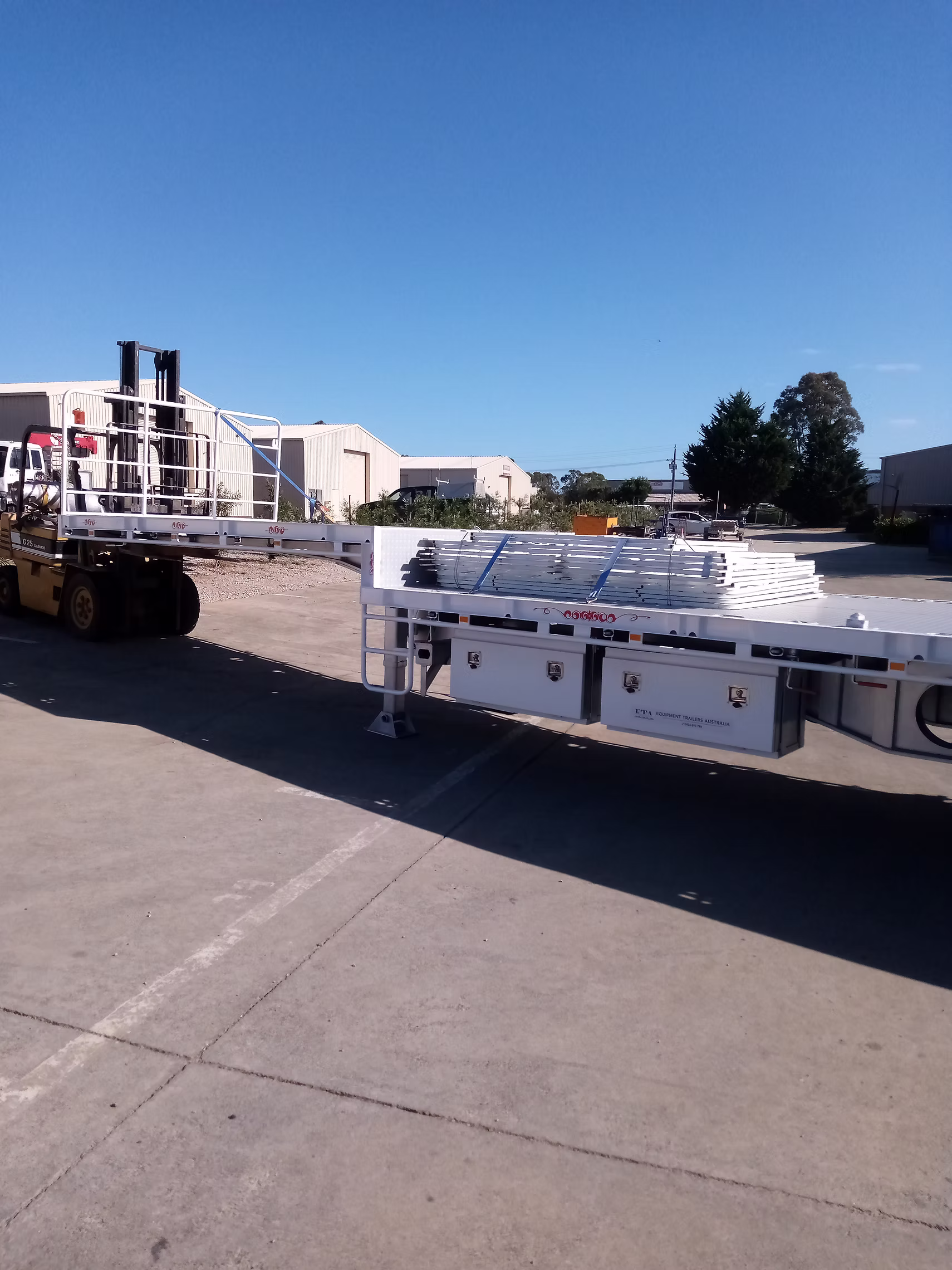

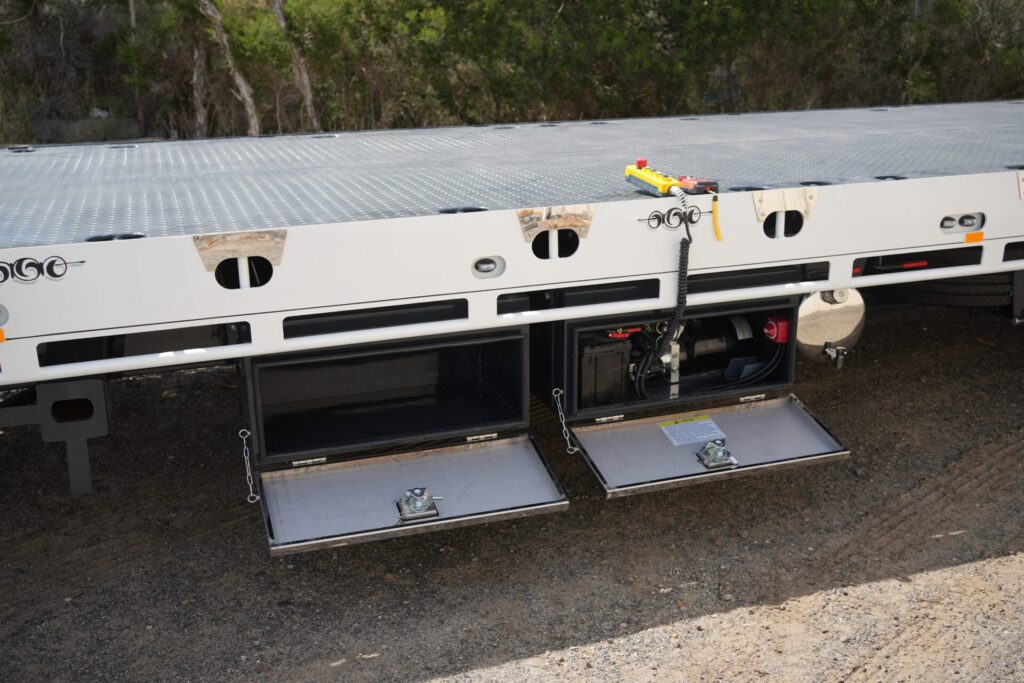

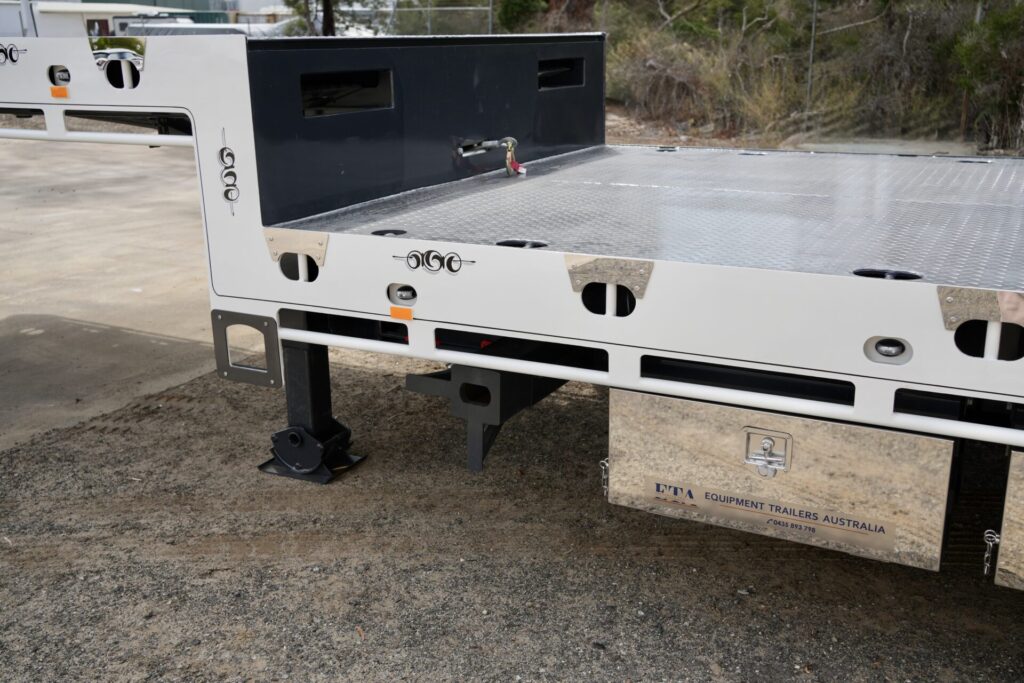

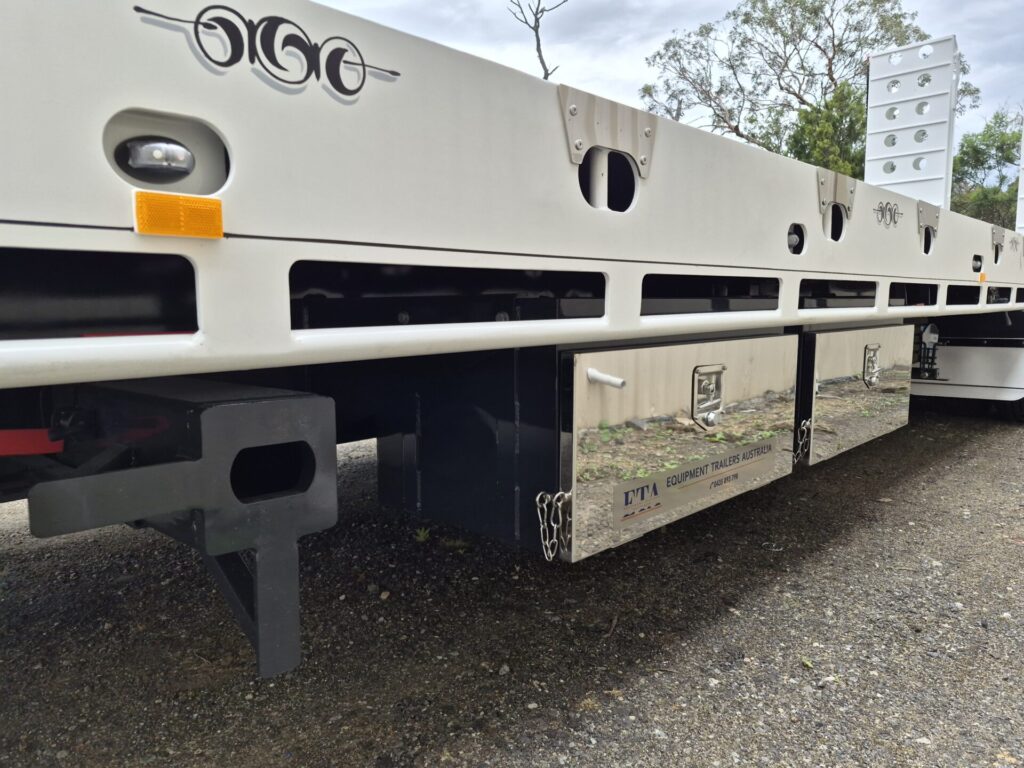

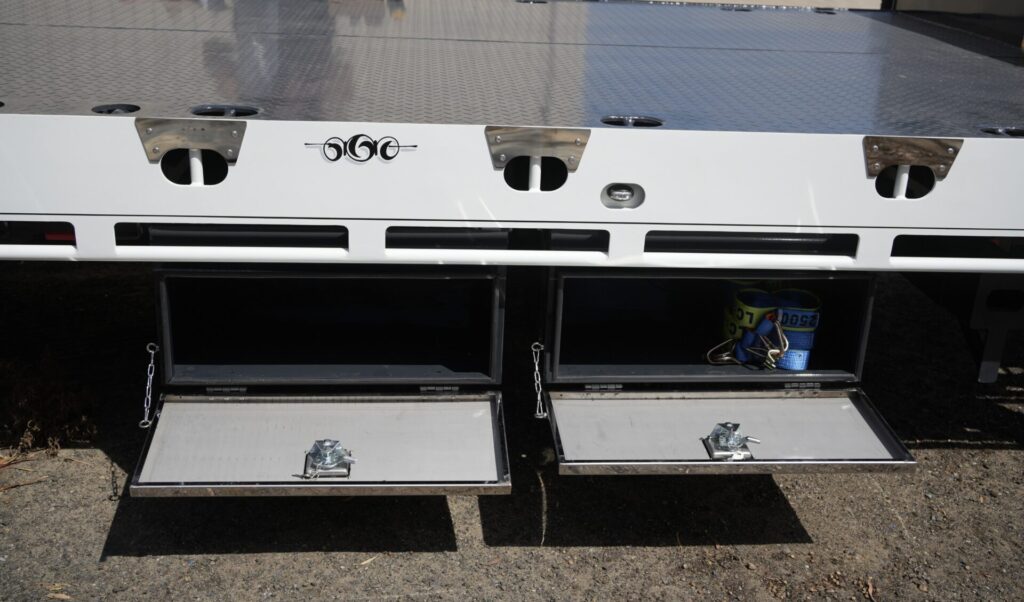

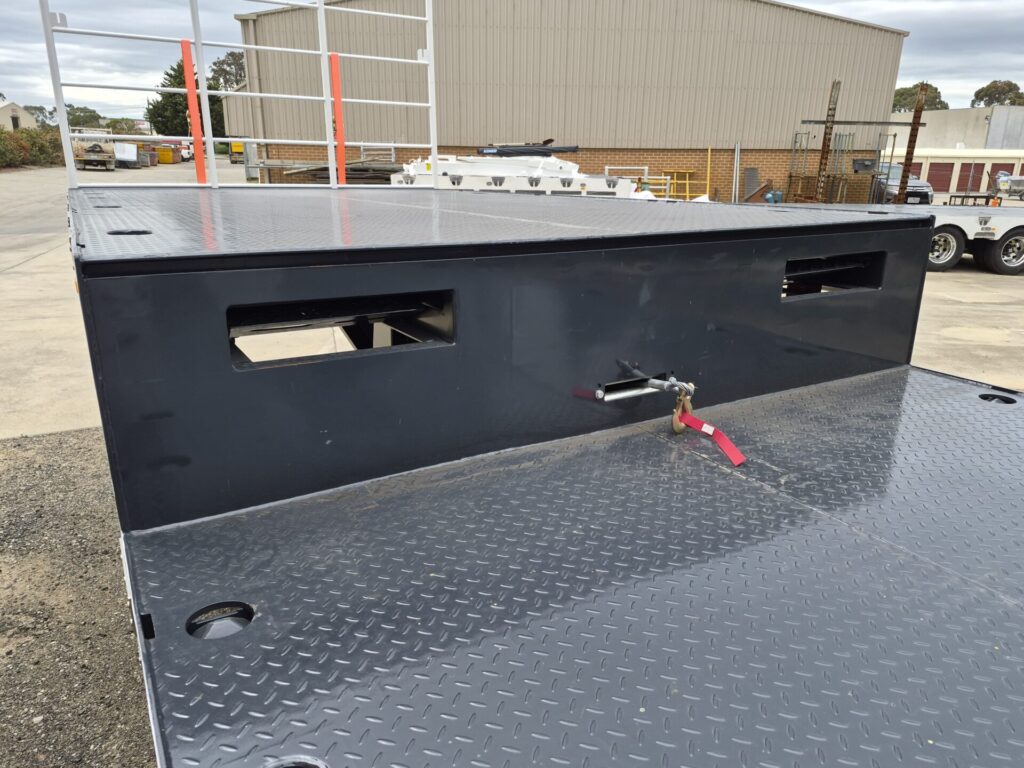

| Toolboxes | 4 total (one houses enclosed power pack) |
| Water Tank | 30L capacity |

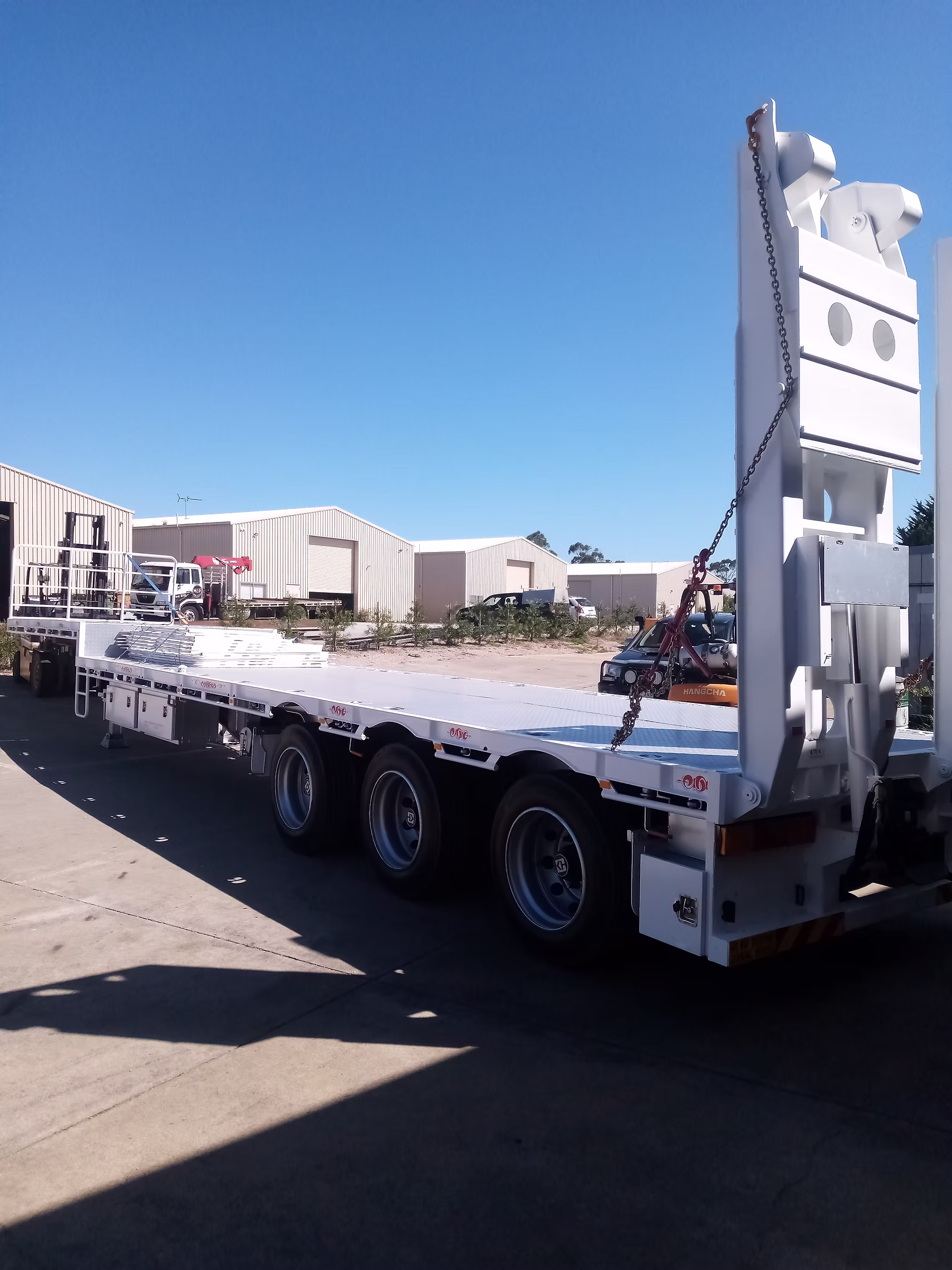

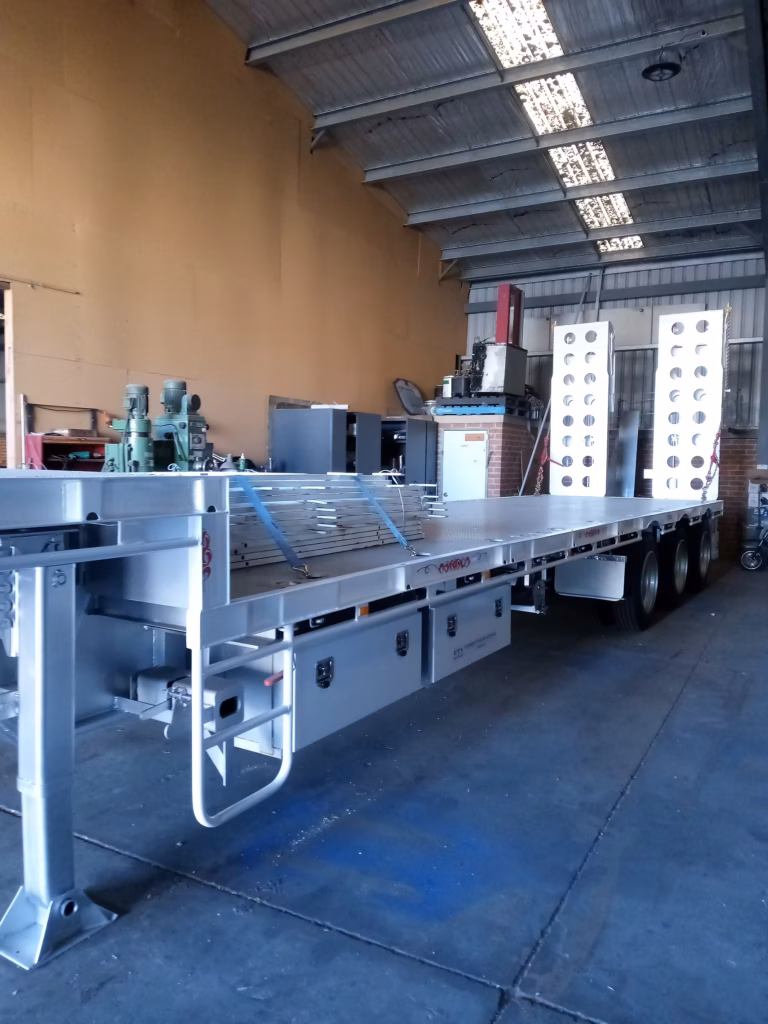

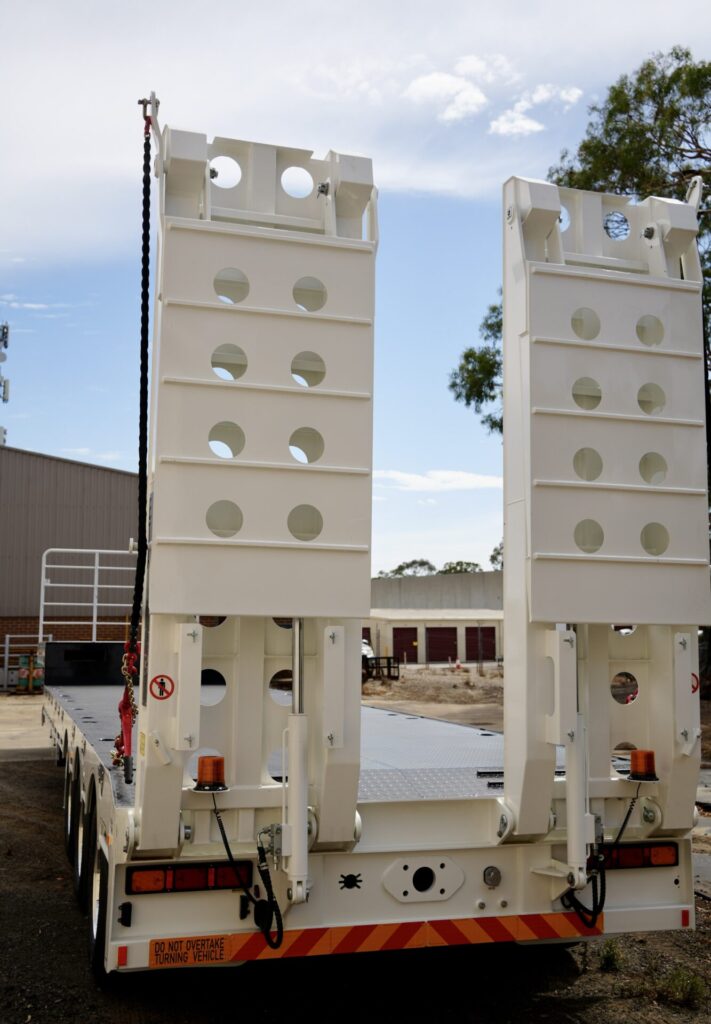

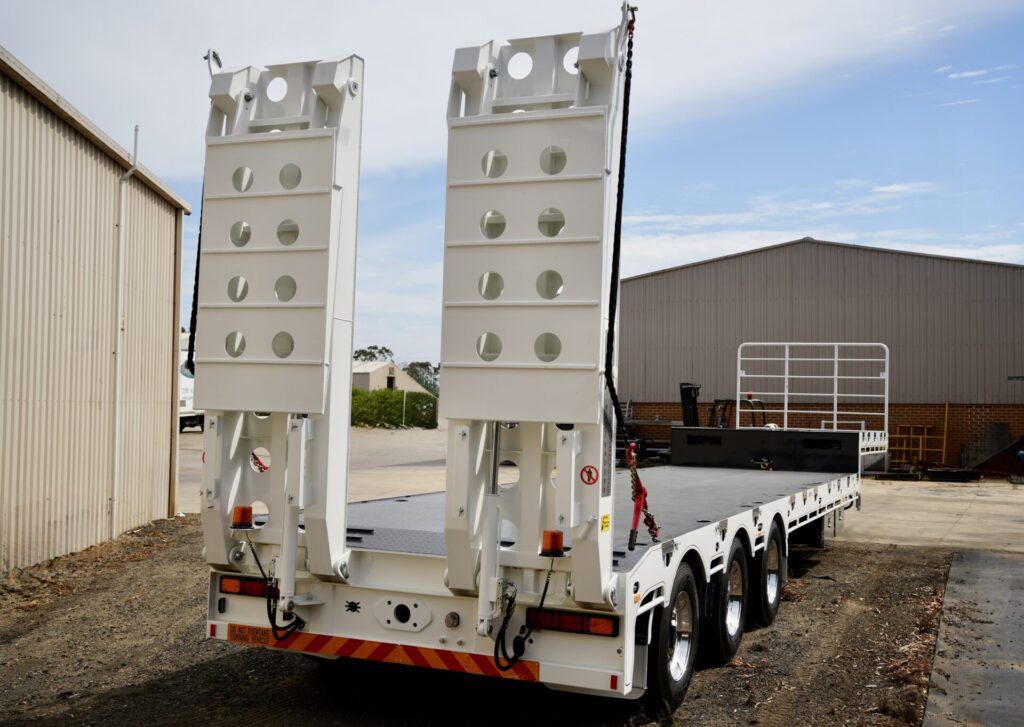

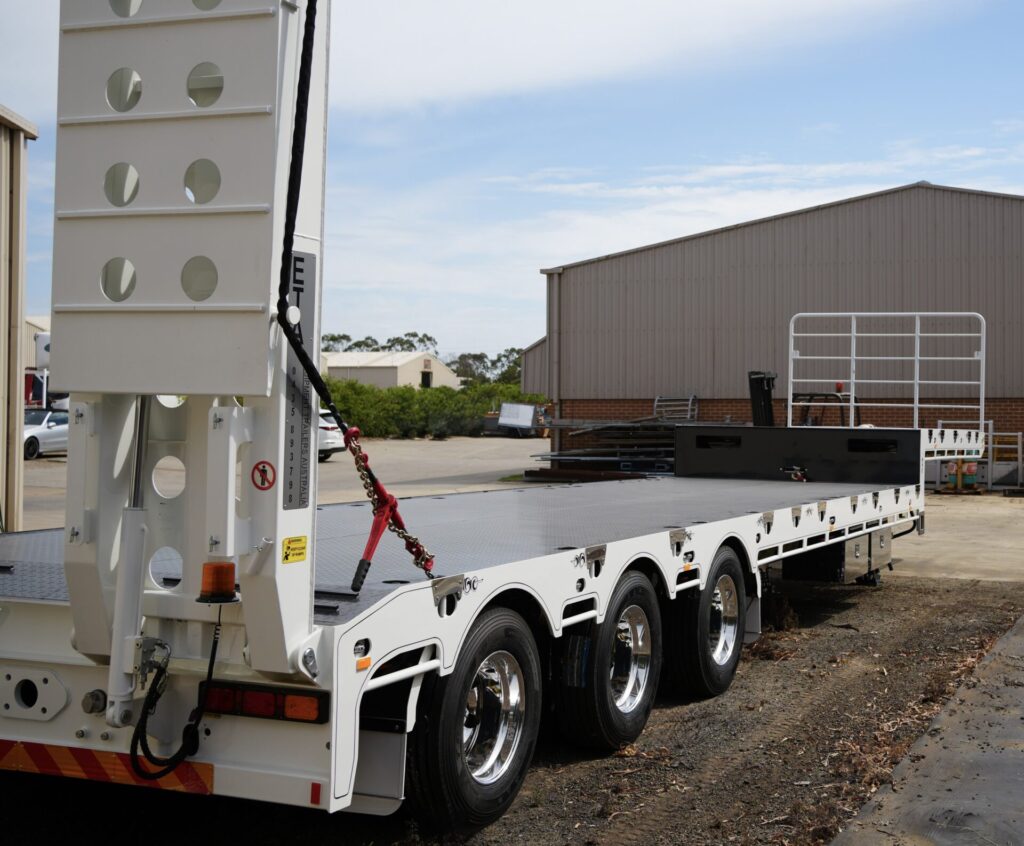

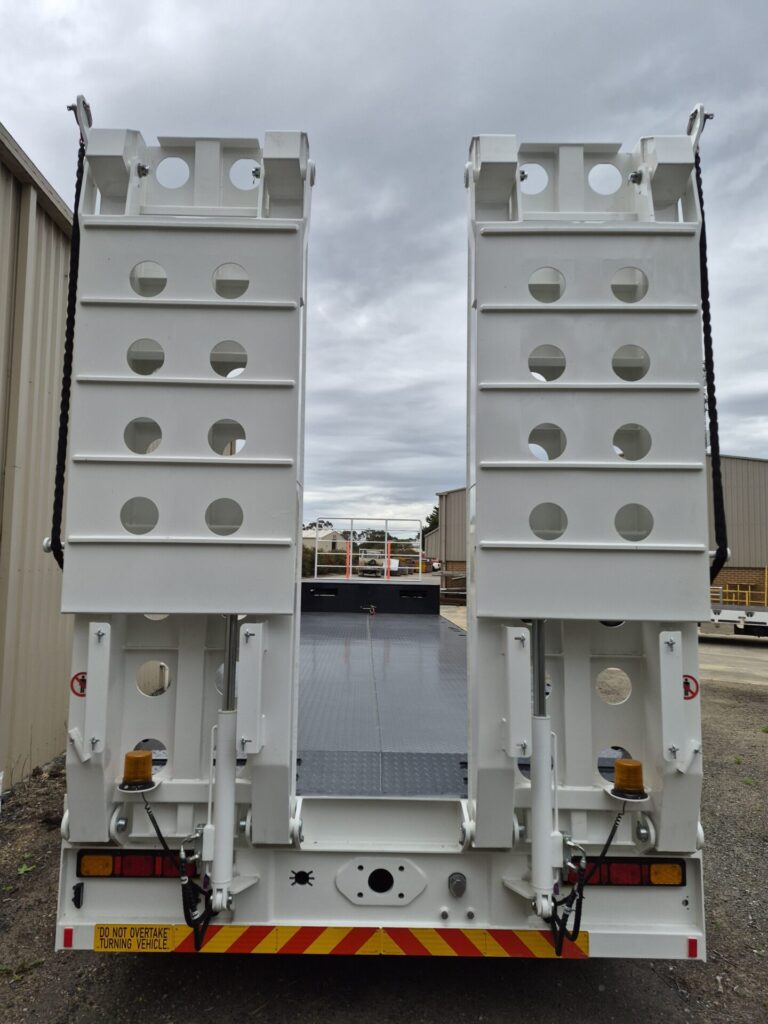

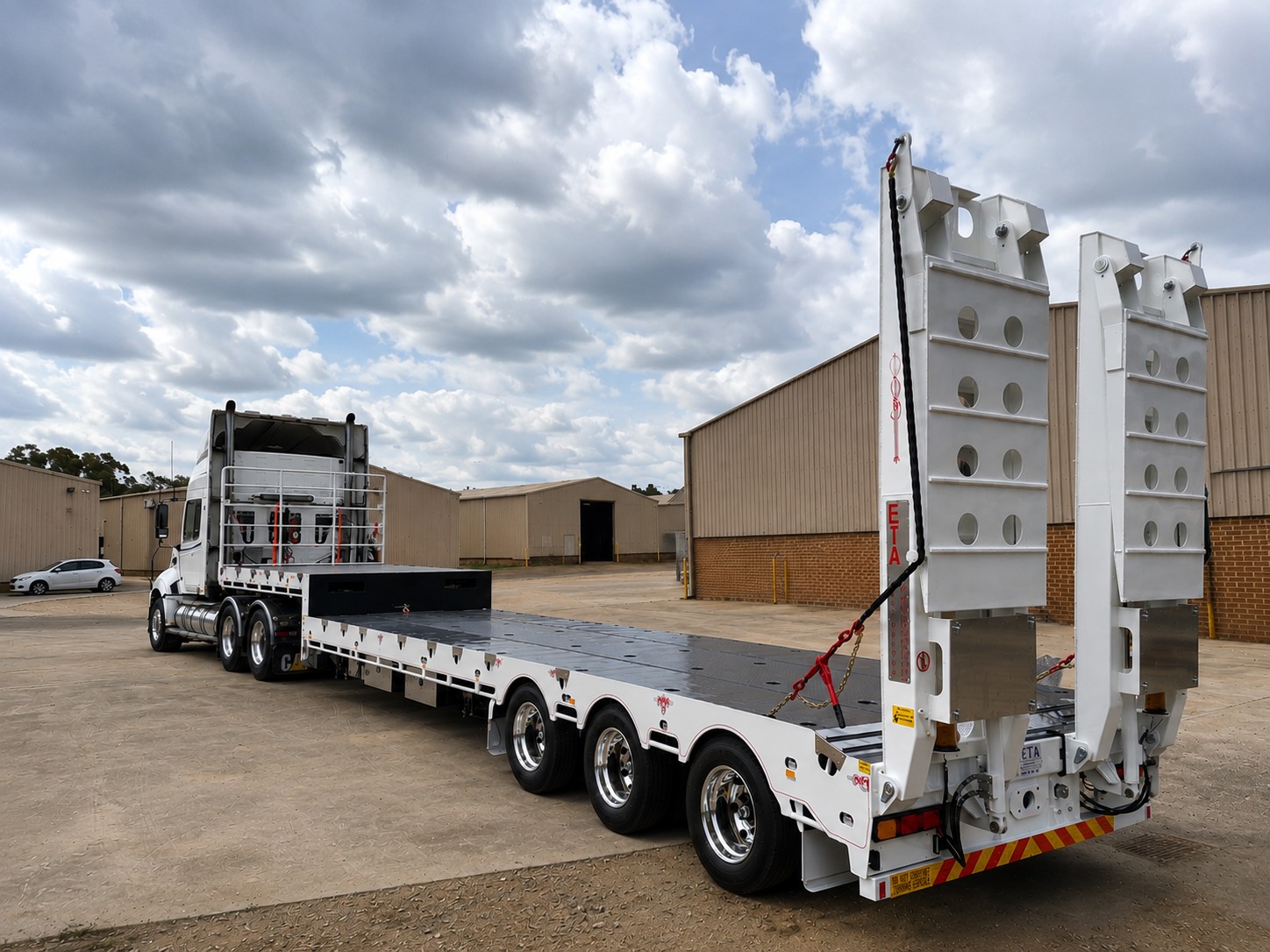

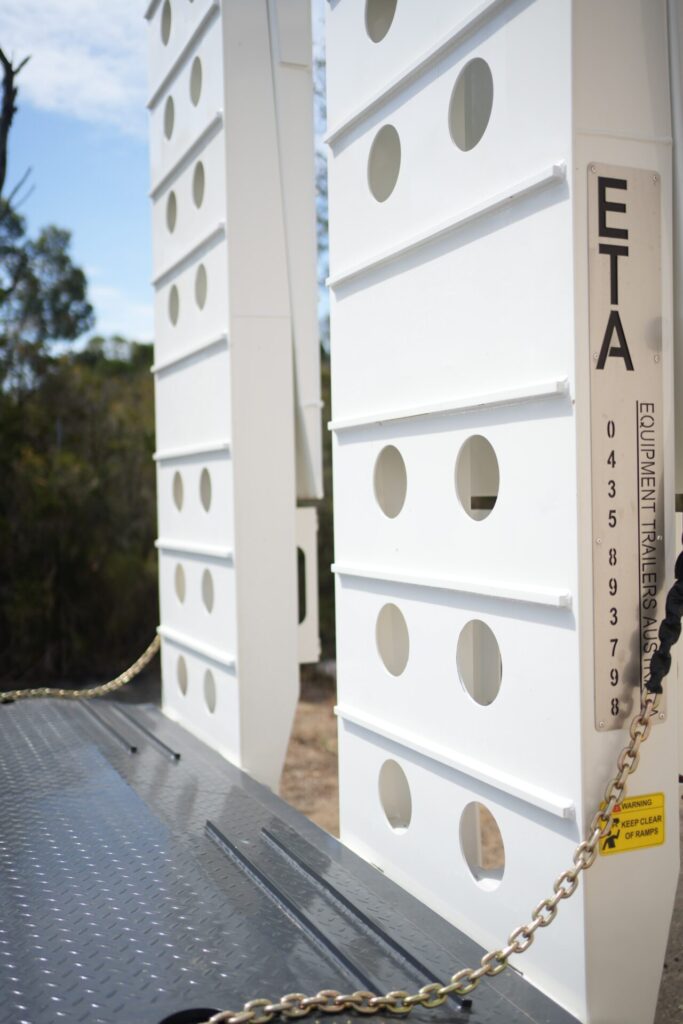

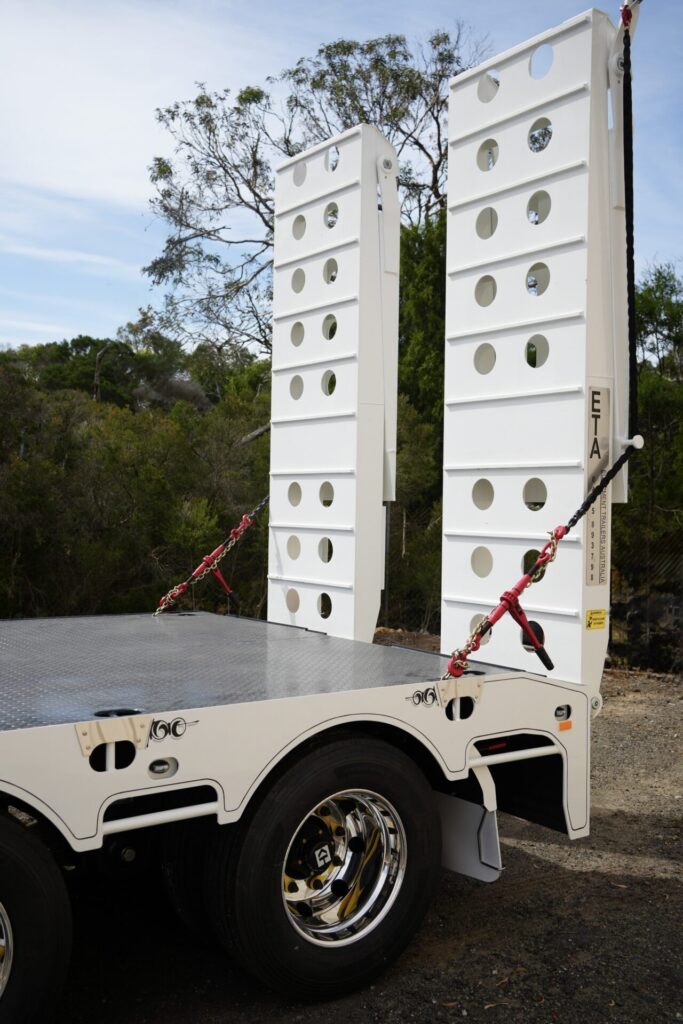

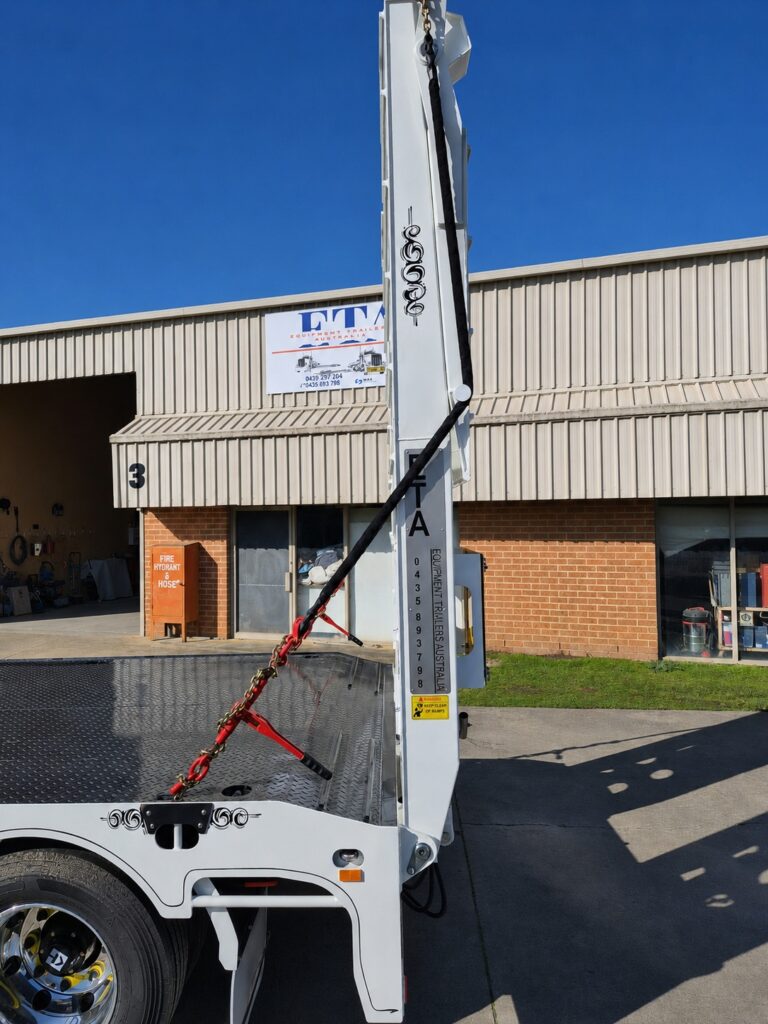

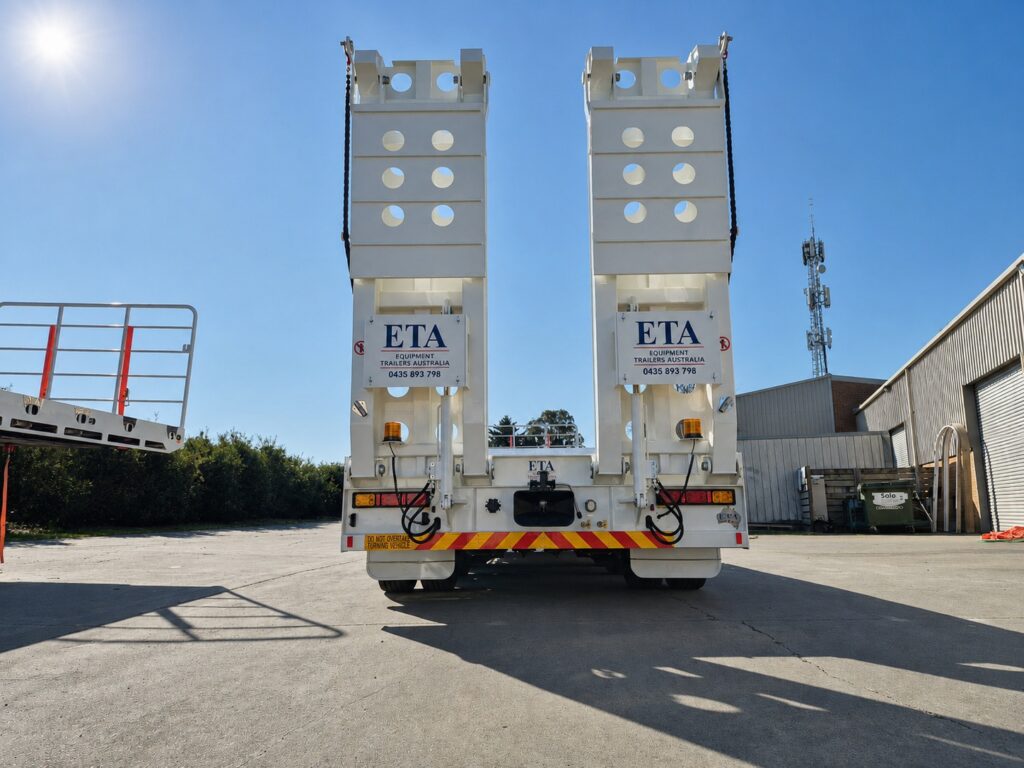

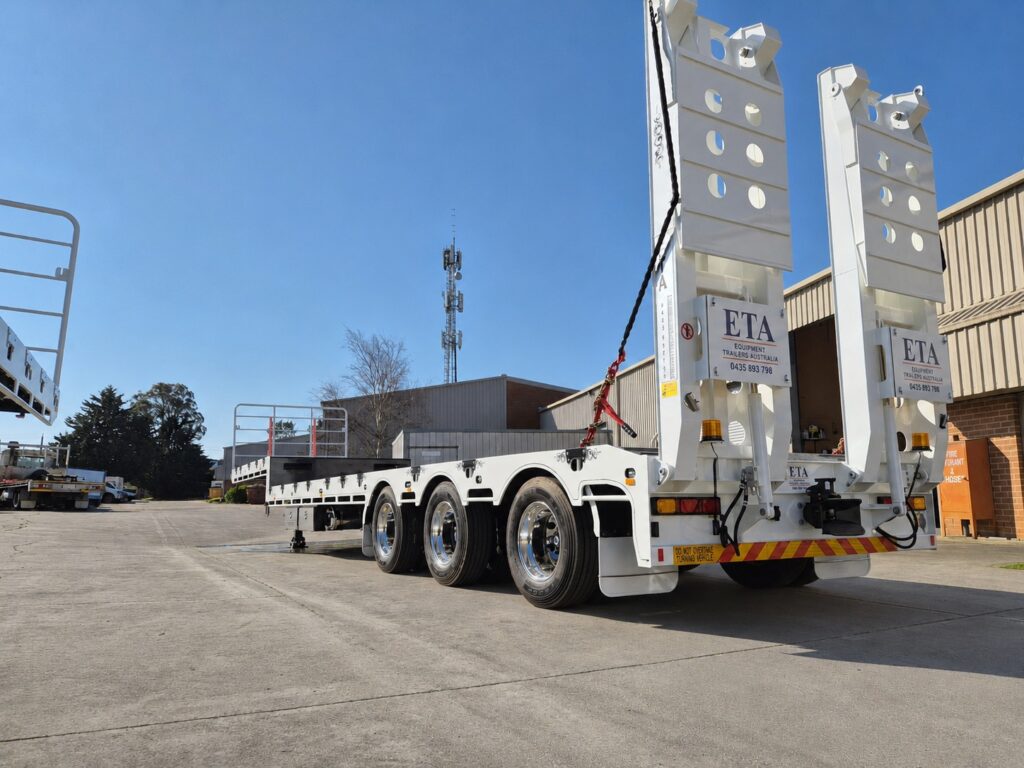

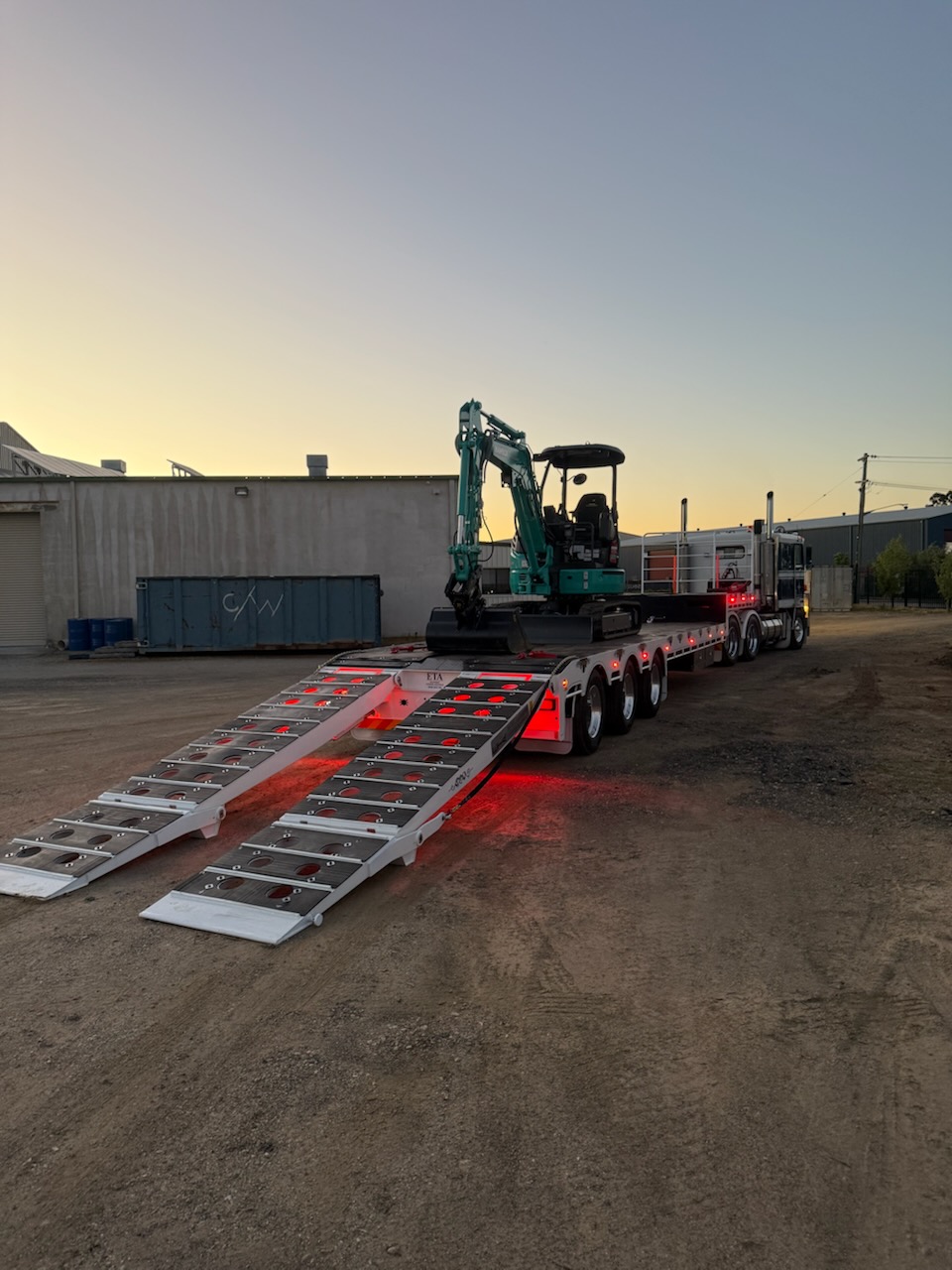

| Ramps | Bi-fold, 840mm wide |

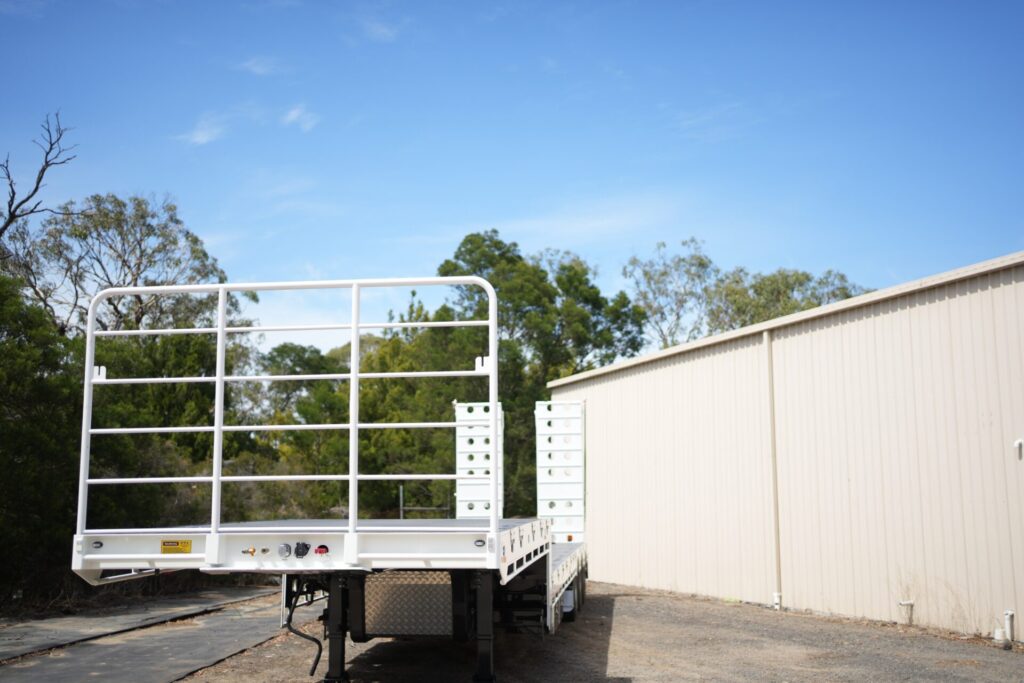

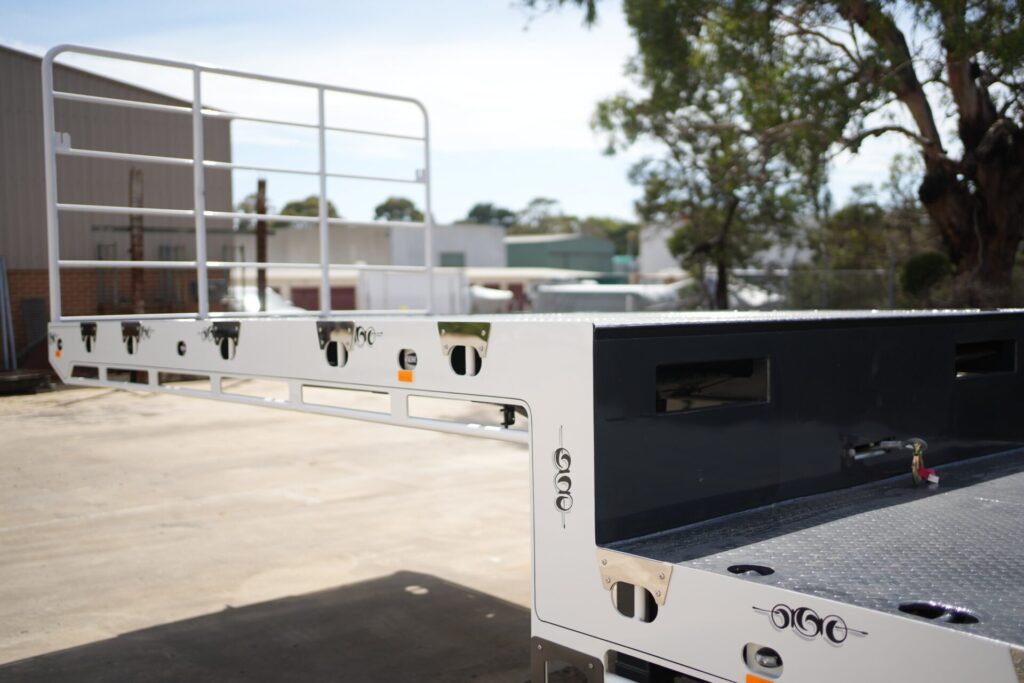

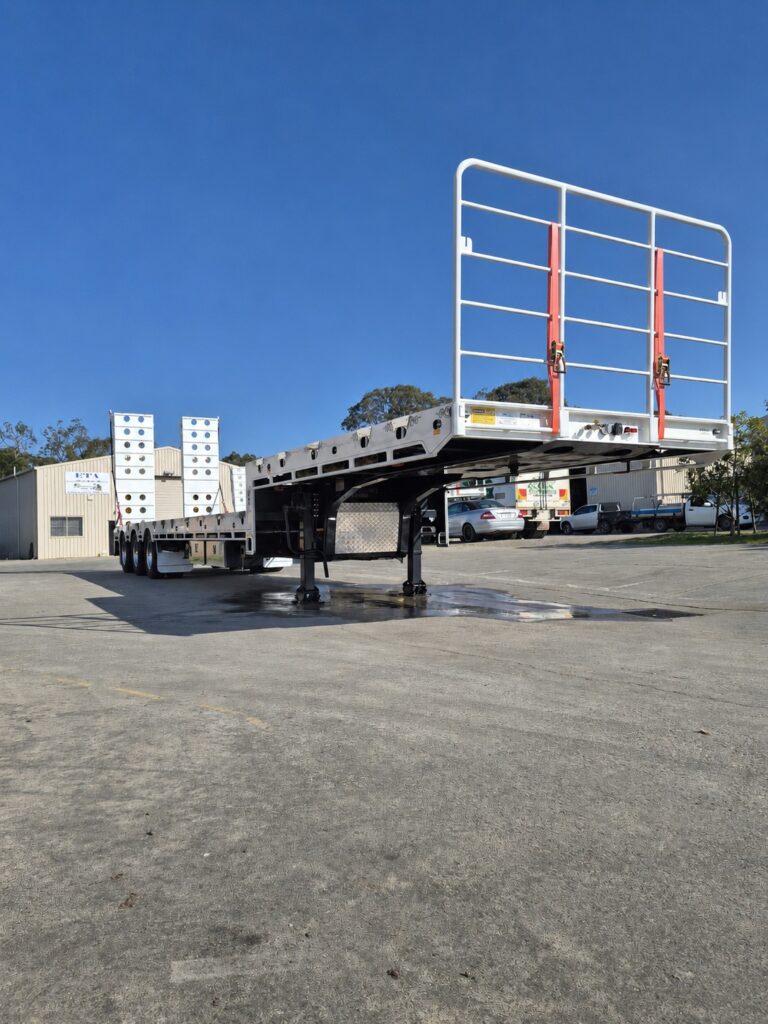

| Front Gate | Drop-in style |
| Tyre Carrier | 2x cut-through beam |
Safety & Braking
| Brake System | WABCO EBS with emergency relay valve |
| Brake Chambers | T30/30 for all three axles |
Lighting & Electrical

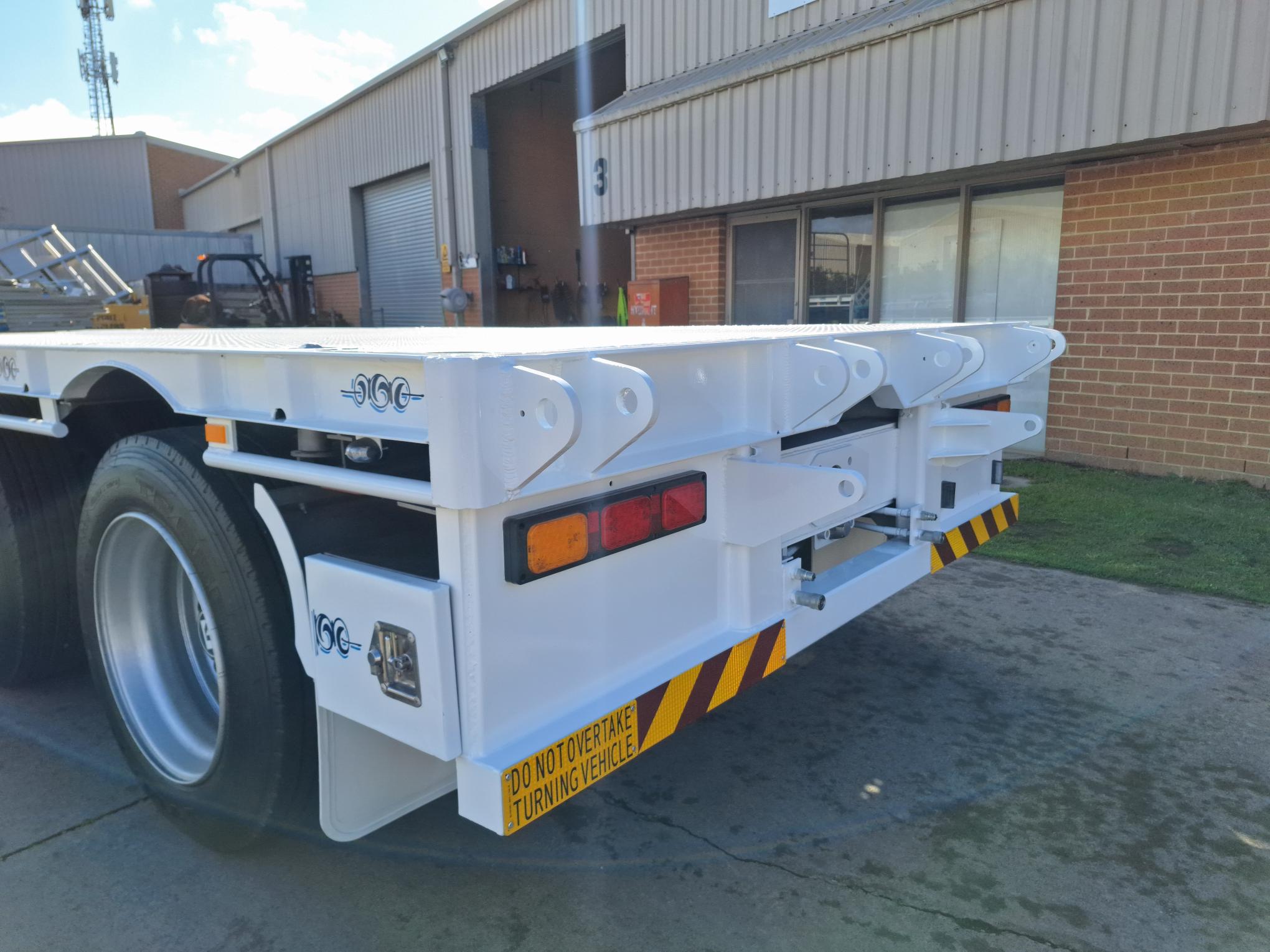

| Lighting | Full LED ADR-approved lighting (front, rear, side, license & beacon lamps) |
| Electrical | 12V socket & heavy-duty cabling in conduit |
Hydraulic System

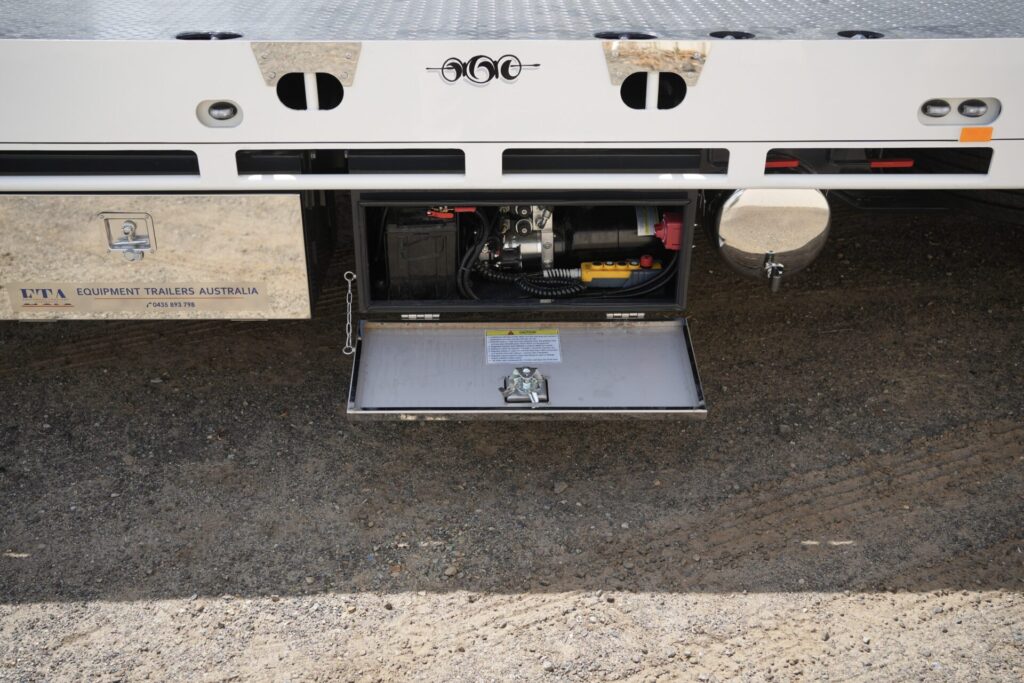

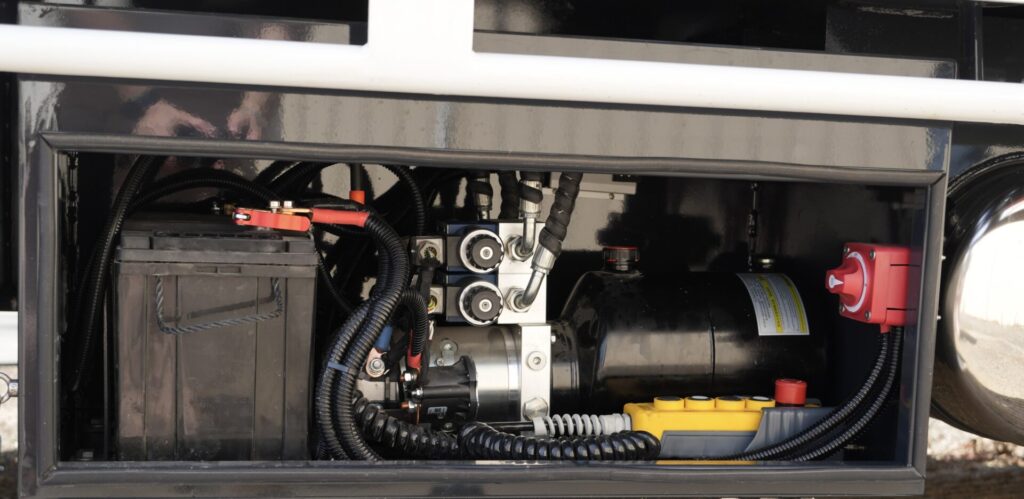

| Hydraulic Power Pack | 12V electric hydraulic power pack (with enclosed battery) |
| Hydraulic Cylinders | 2x for ramps |

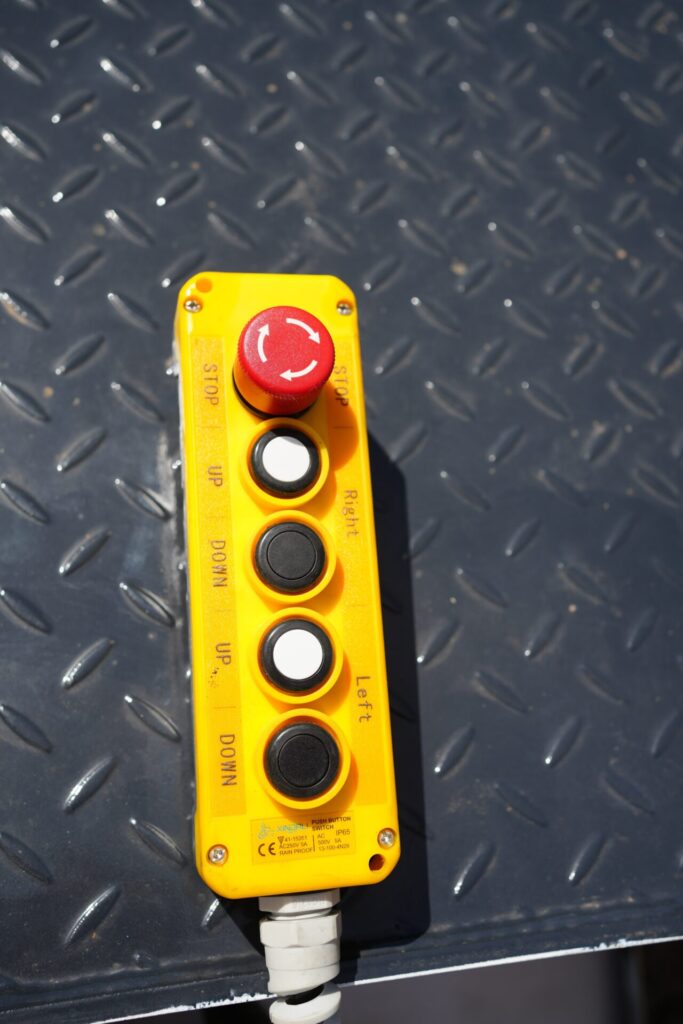

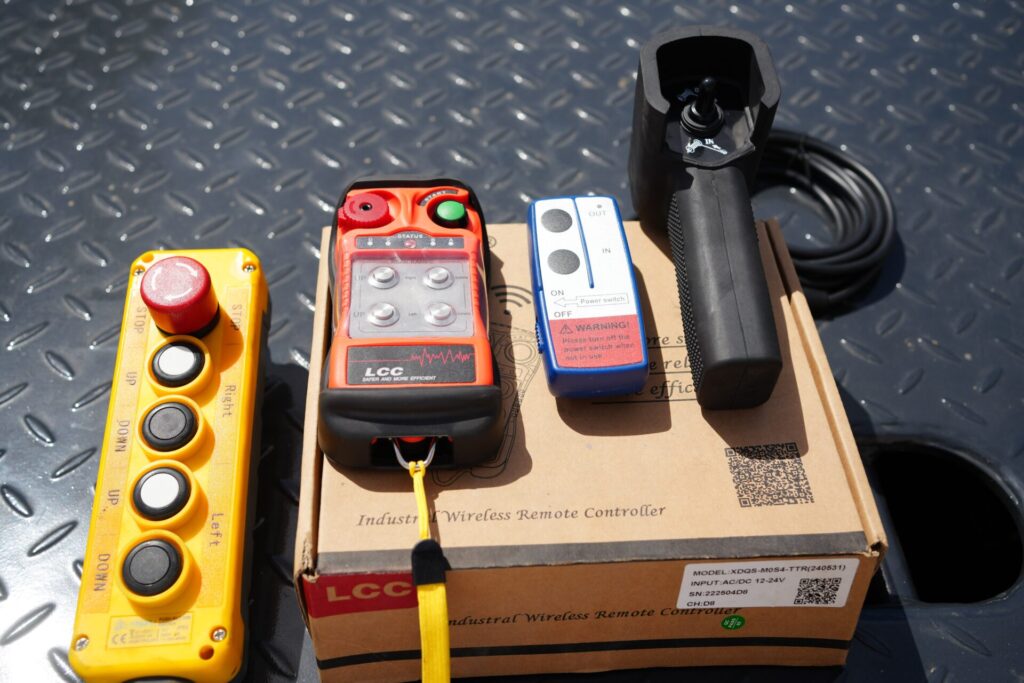

| Control | Corded + wireless remotes |

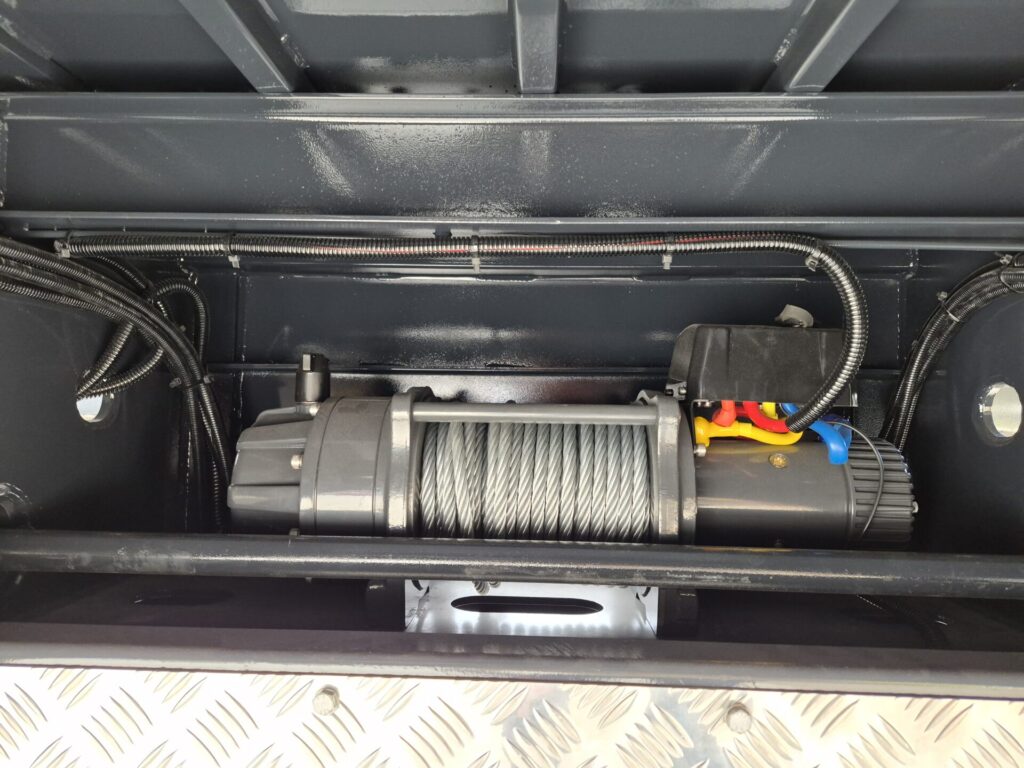

| Winch | 12V, 9000kg (first layer pull) |

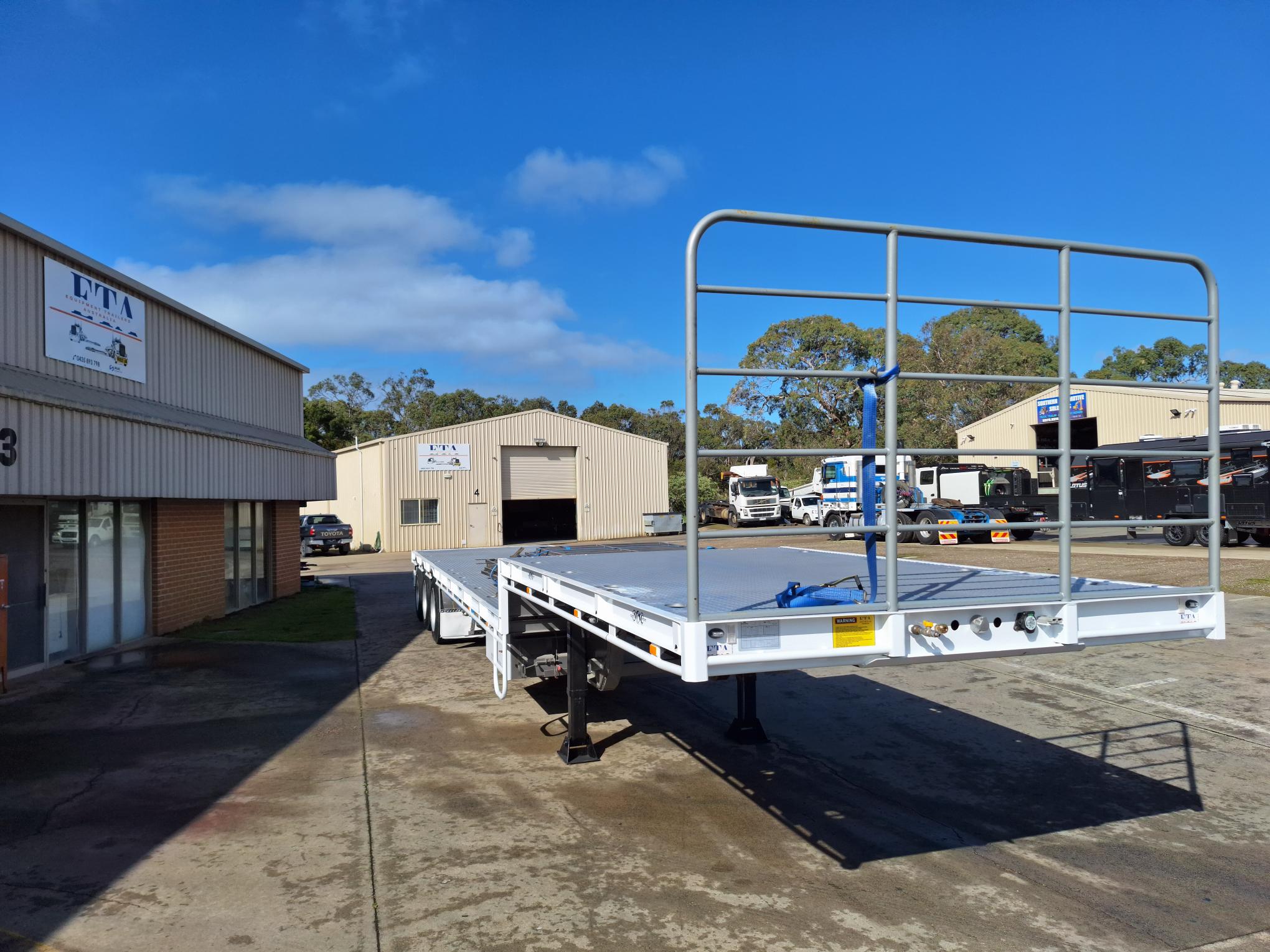

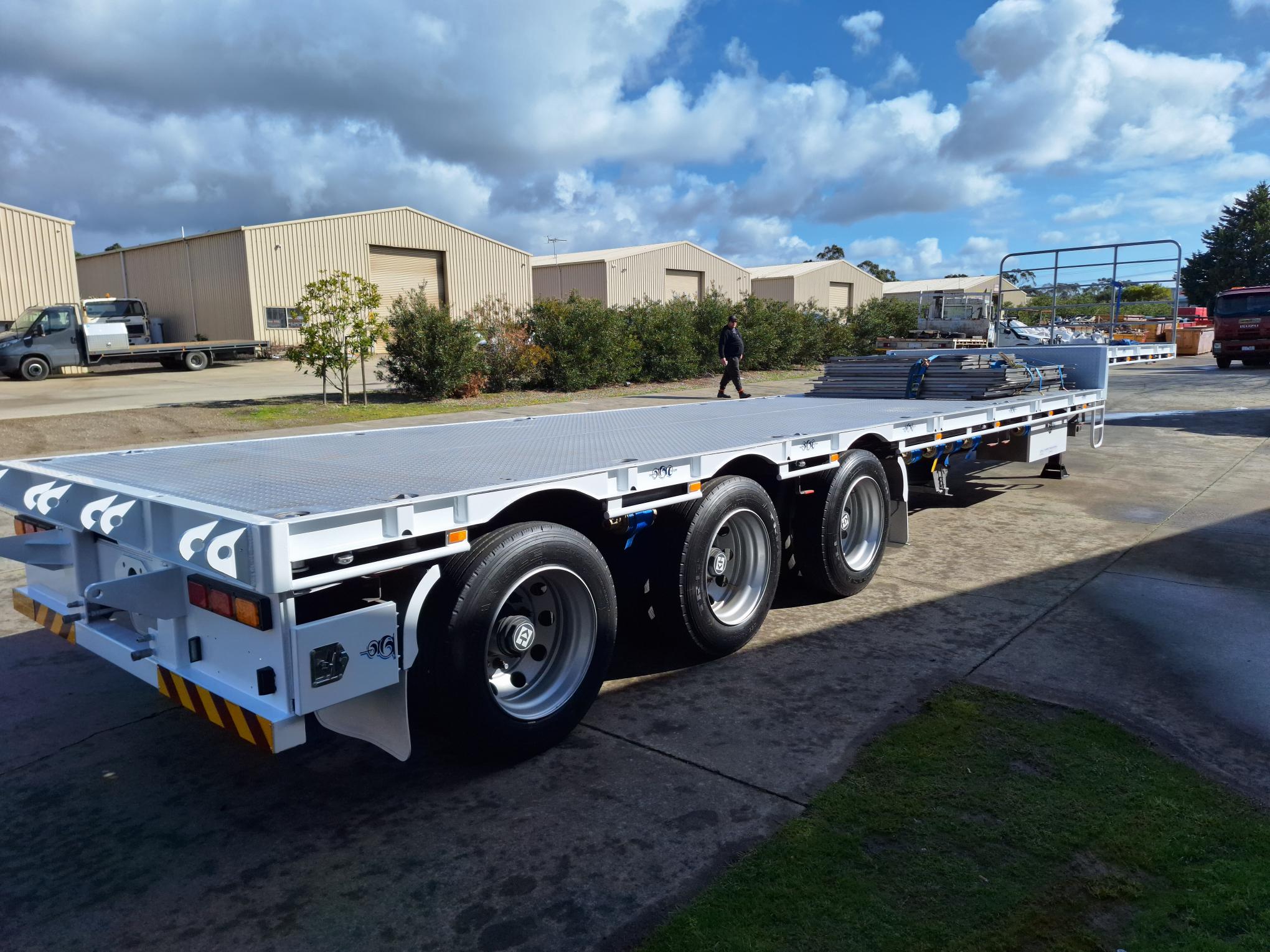

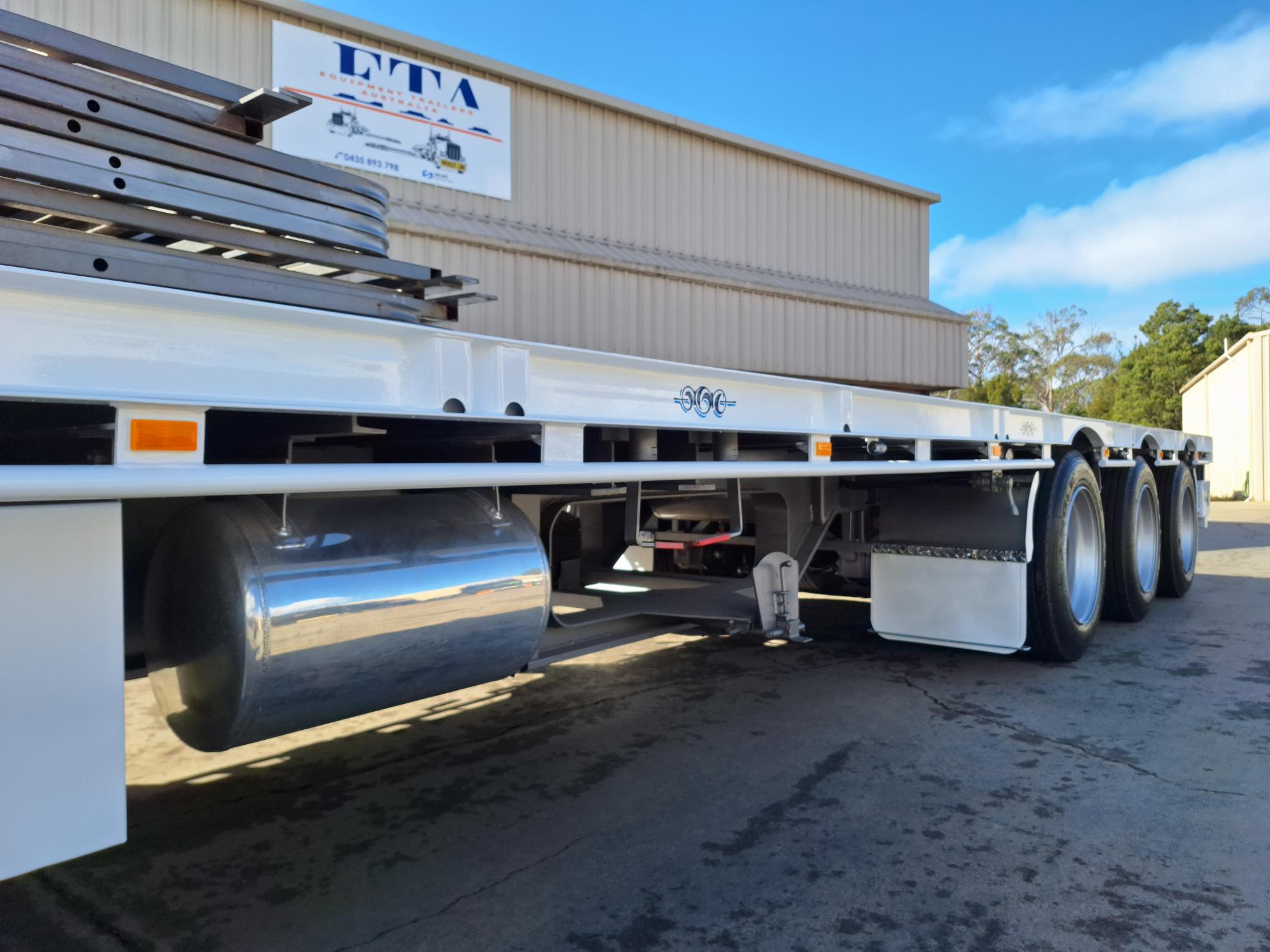

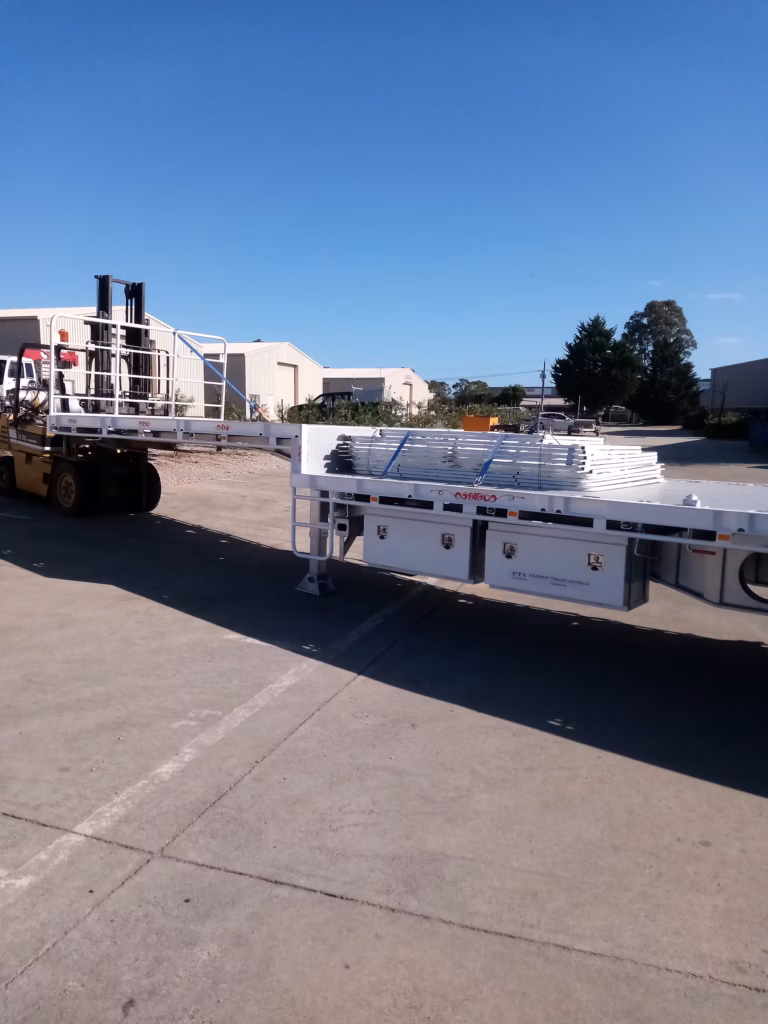

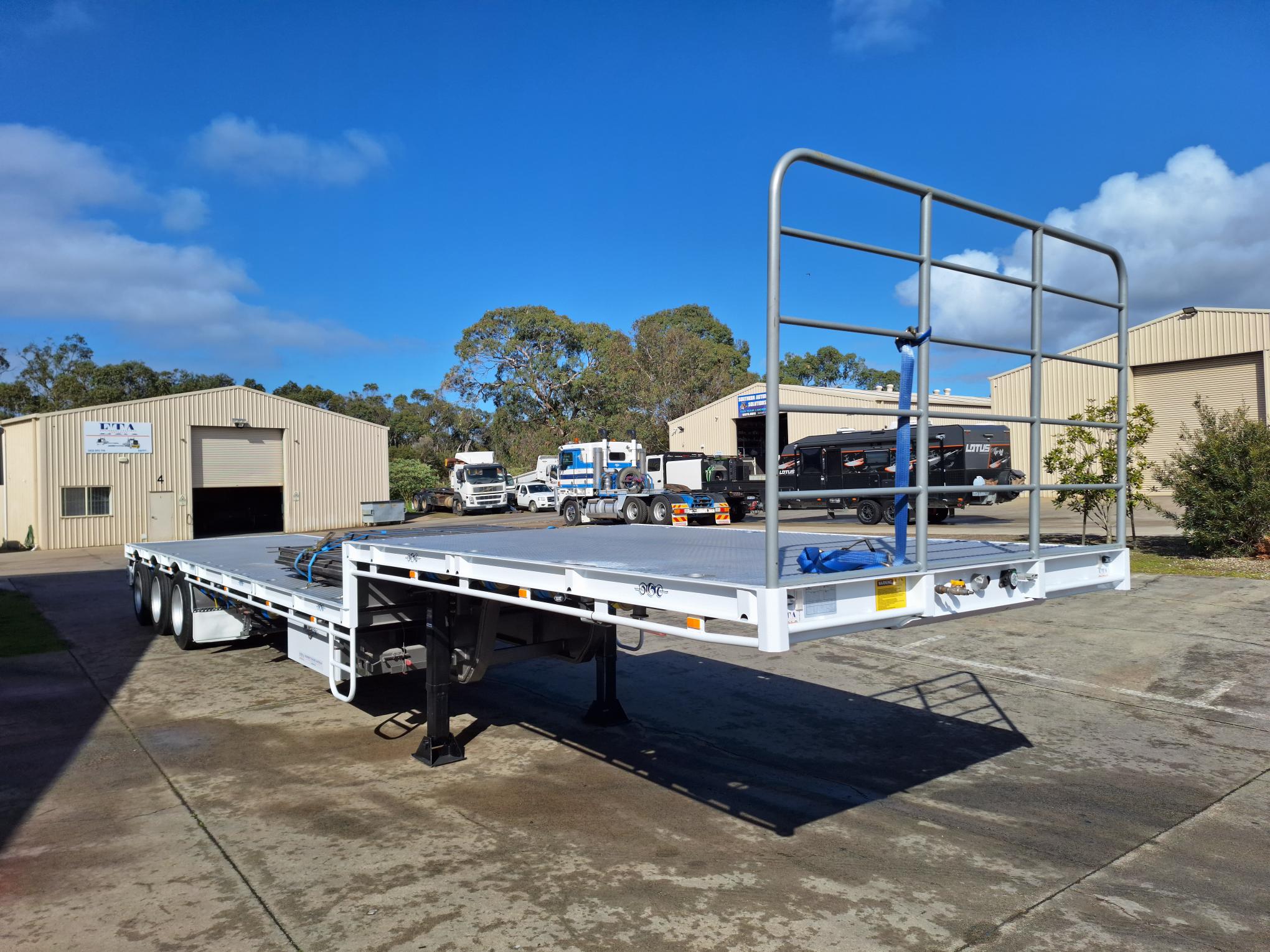

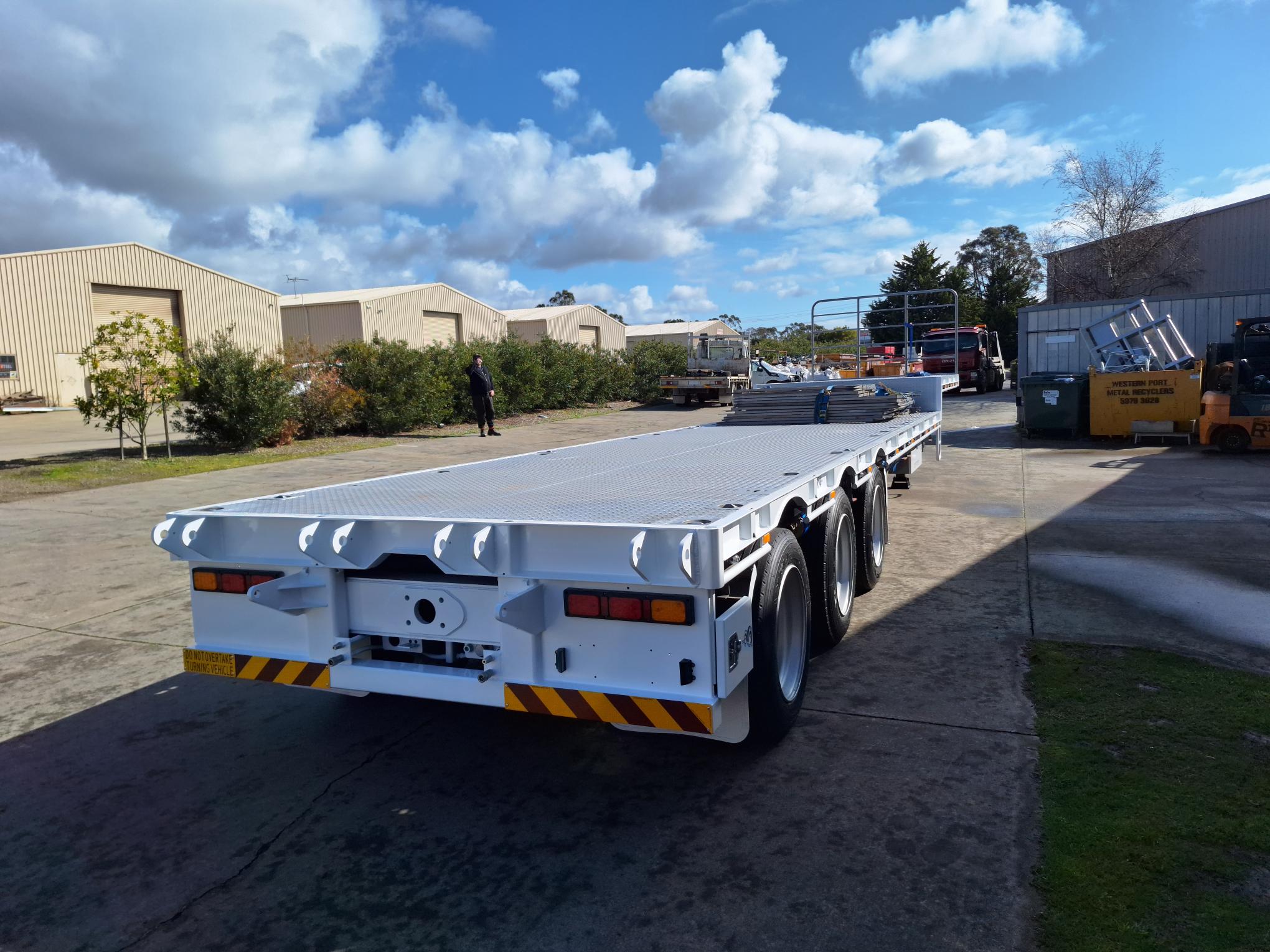

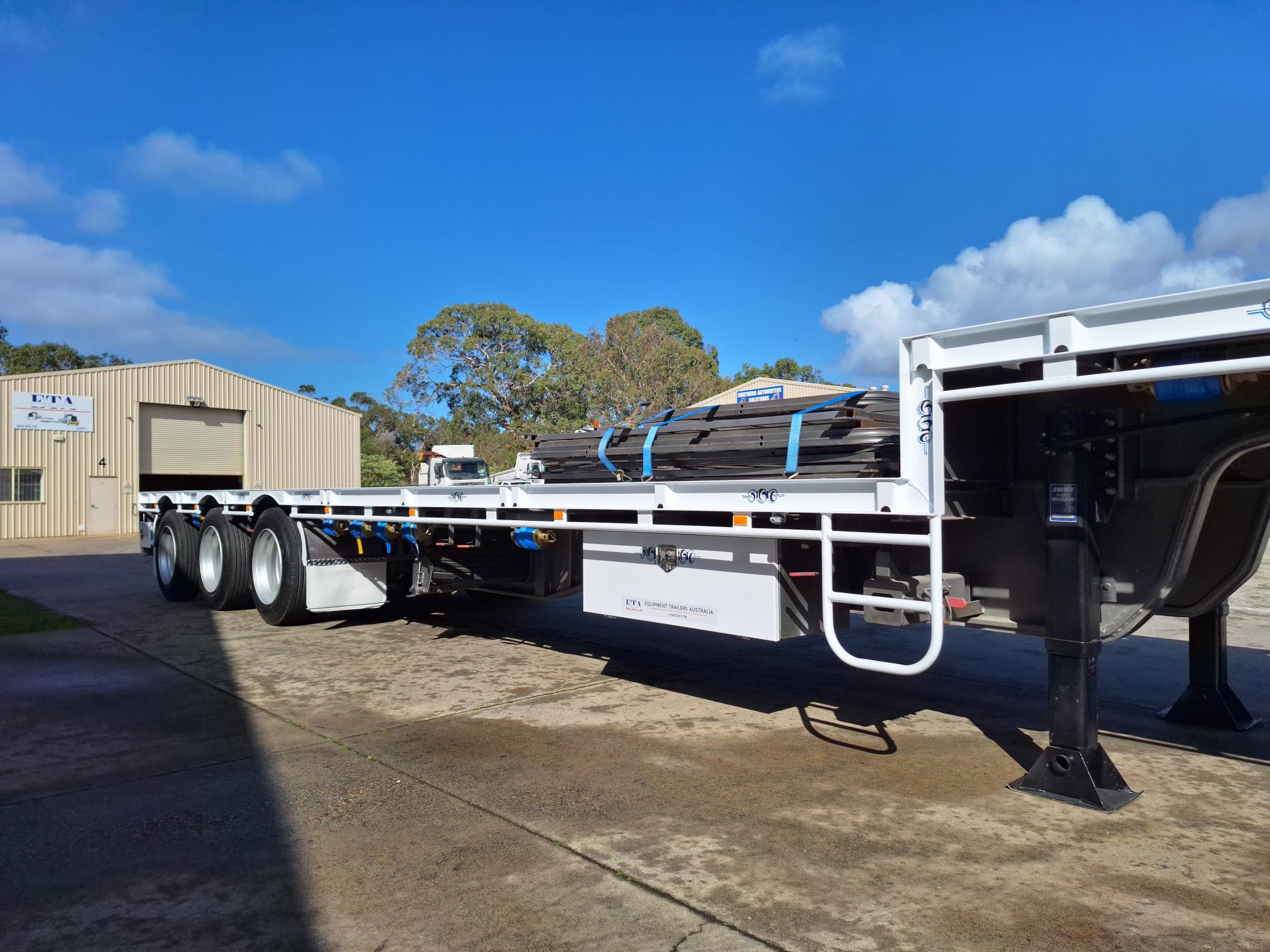

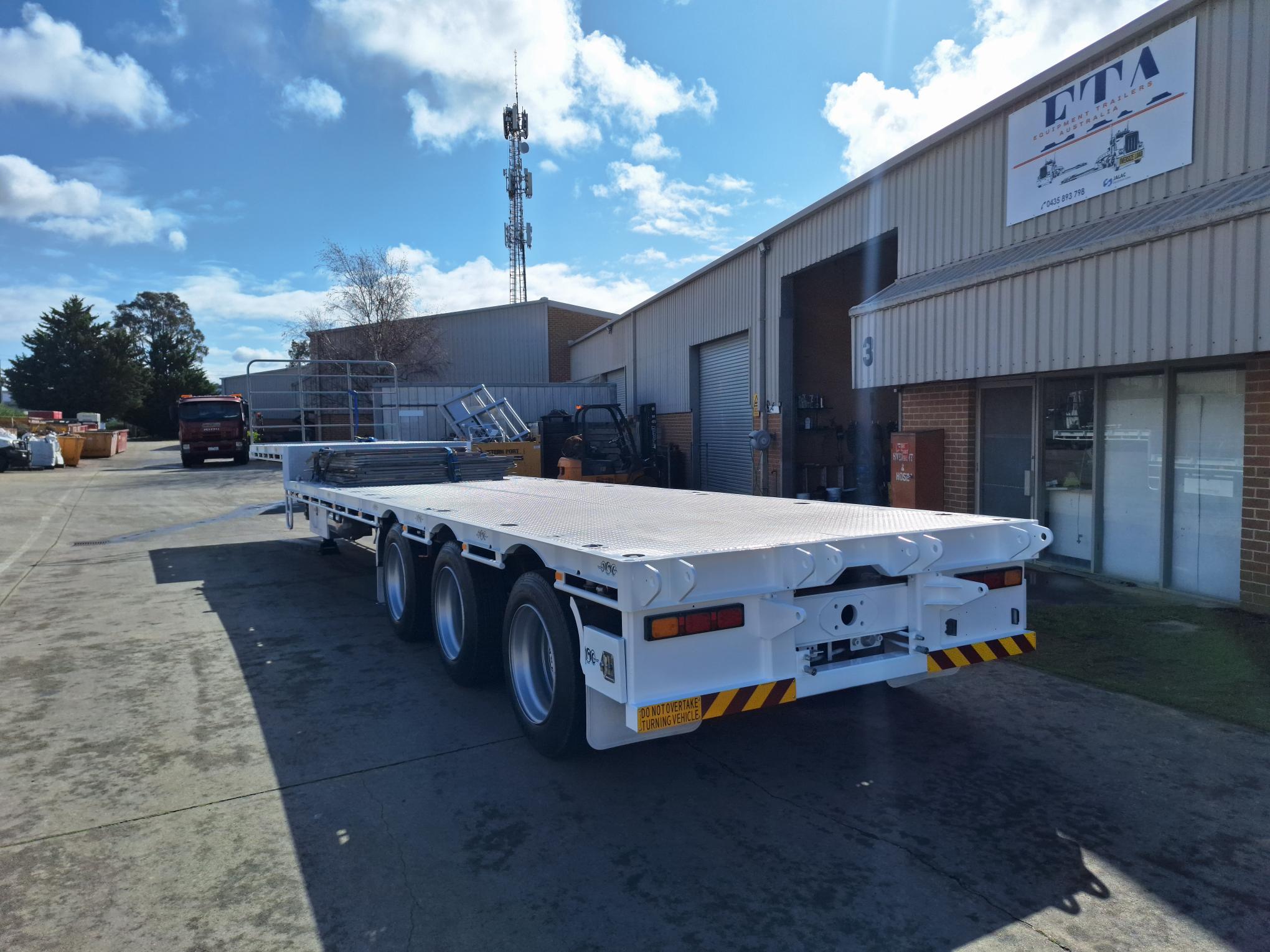

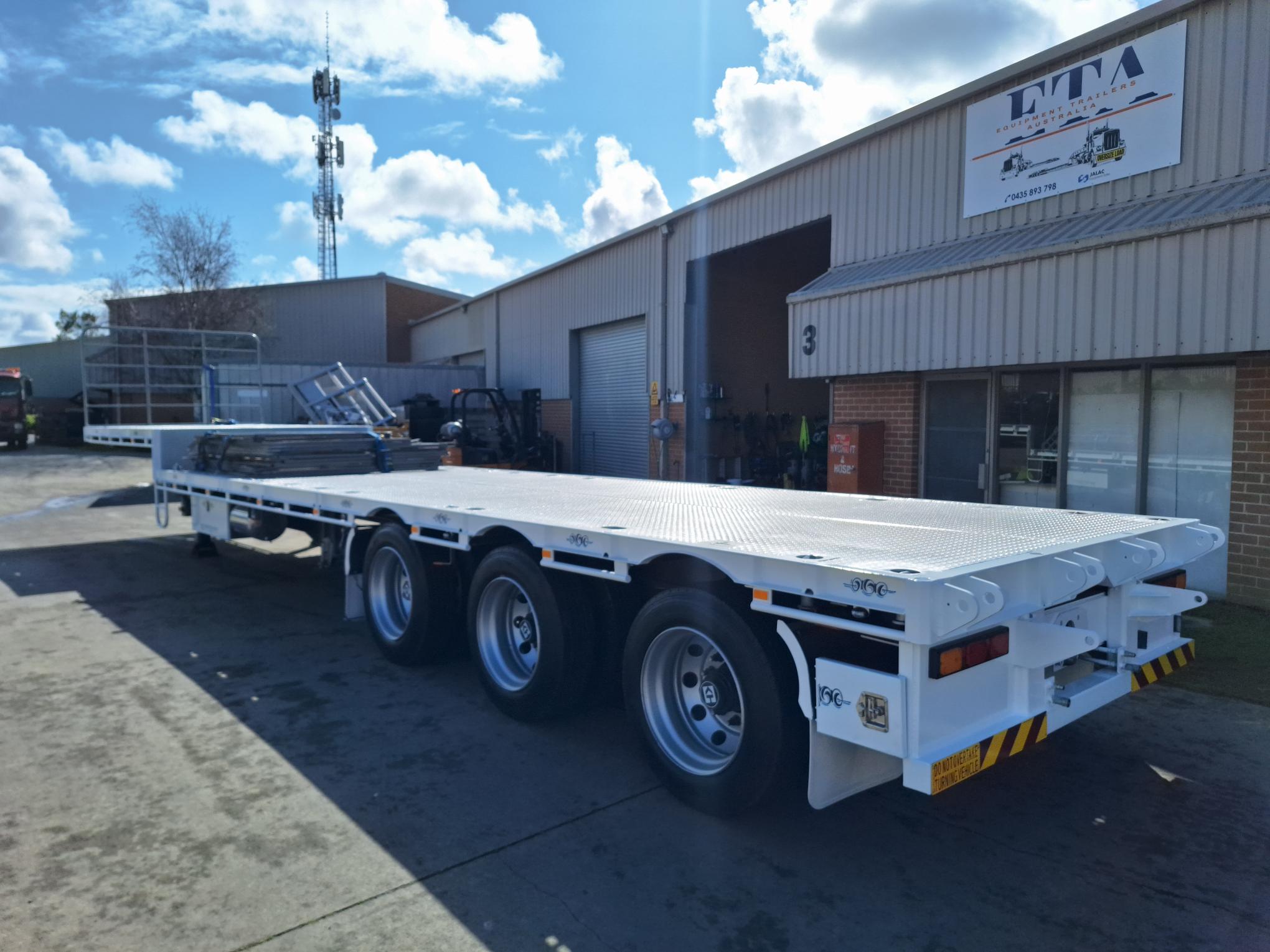

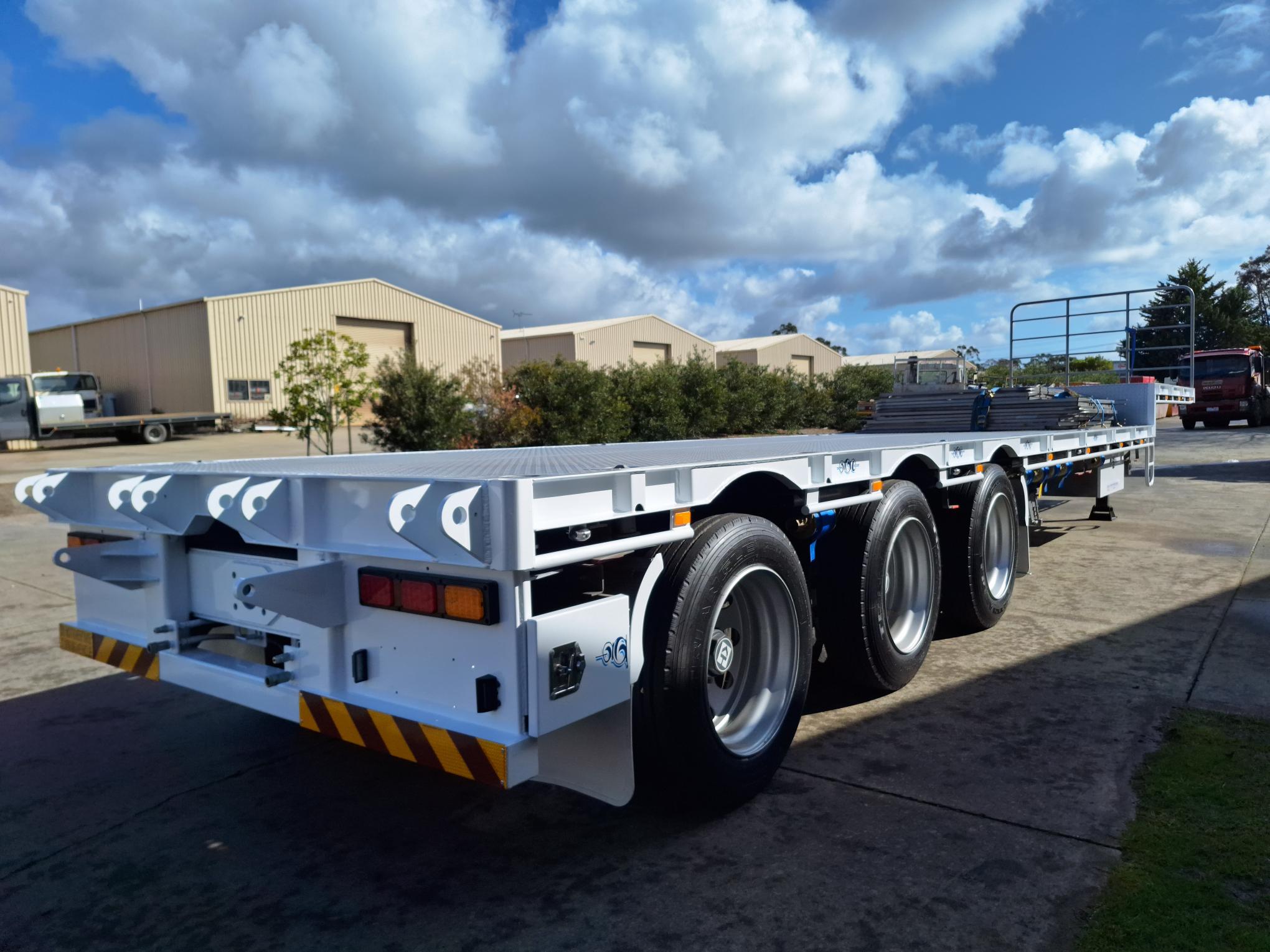

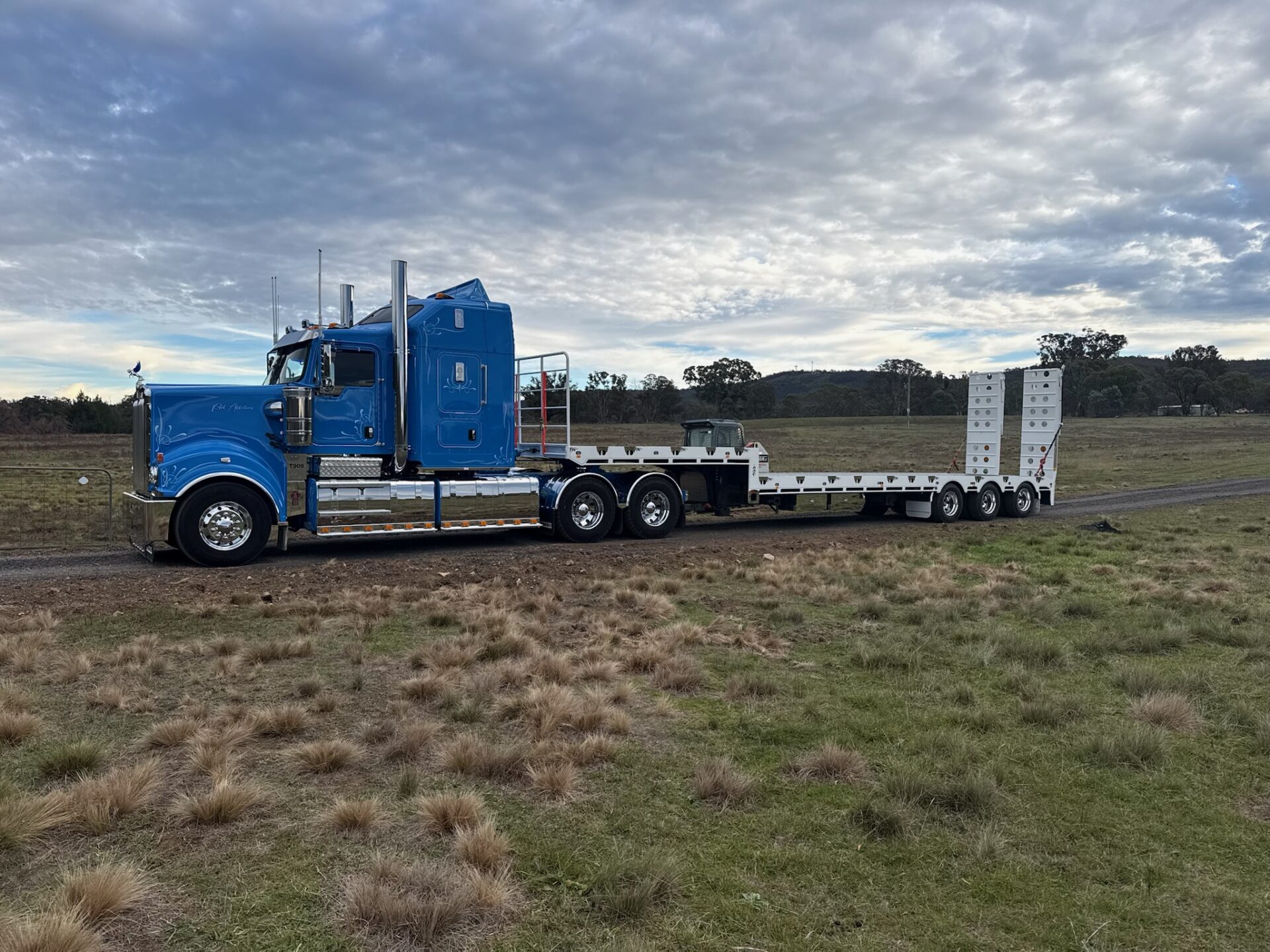

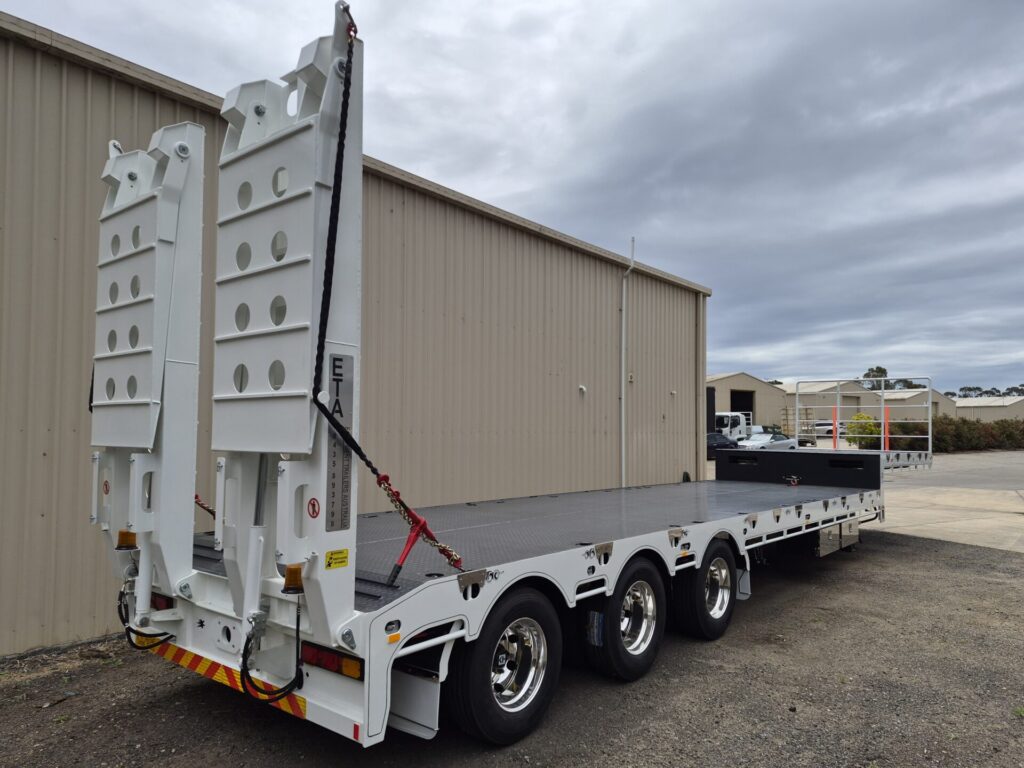

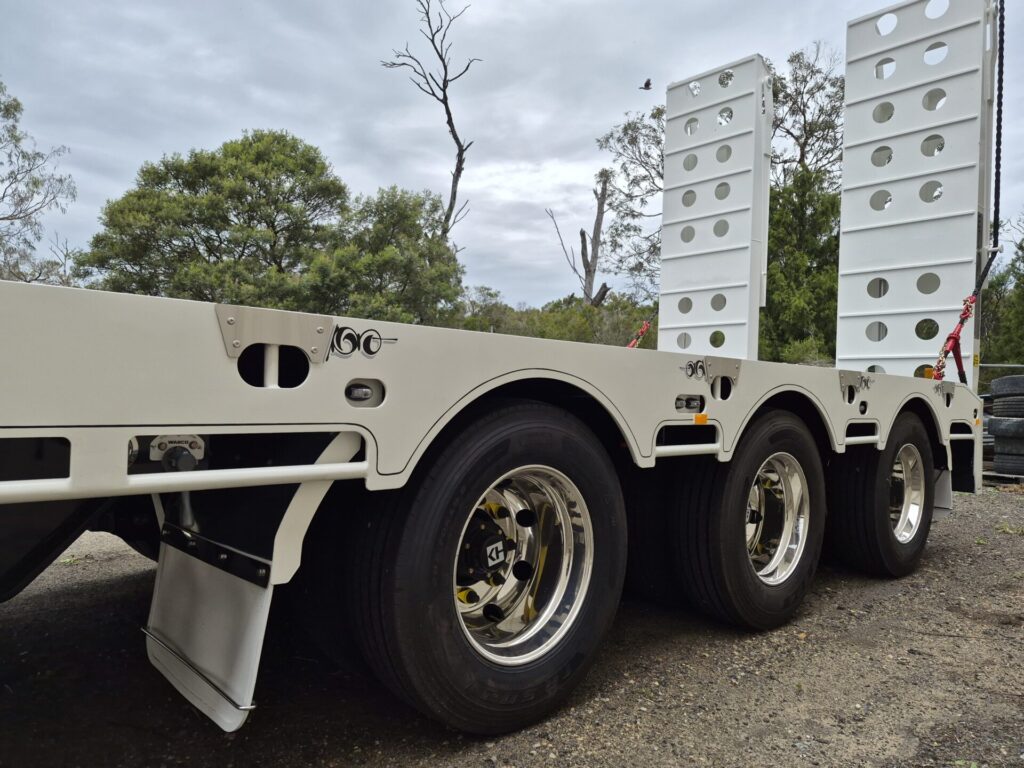

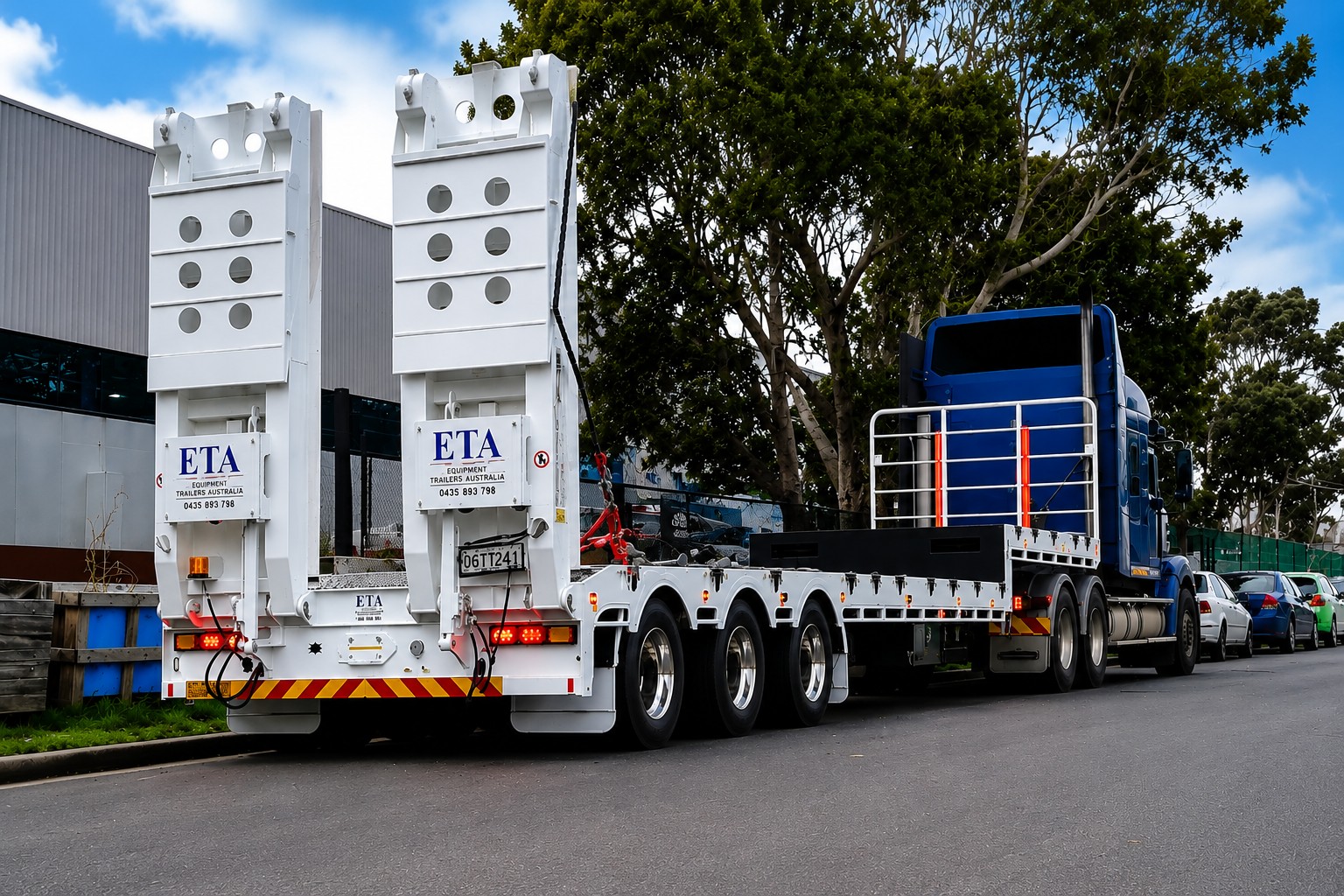

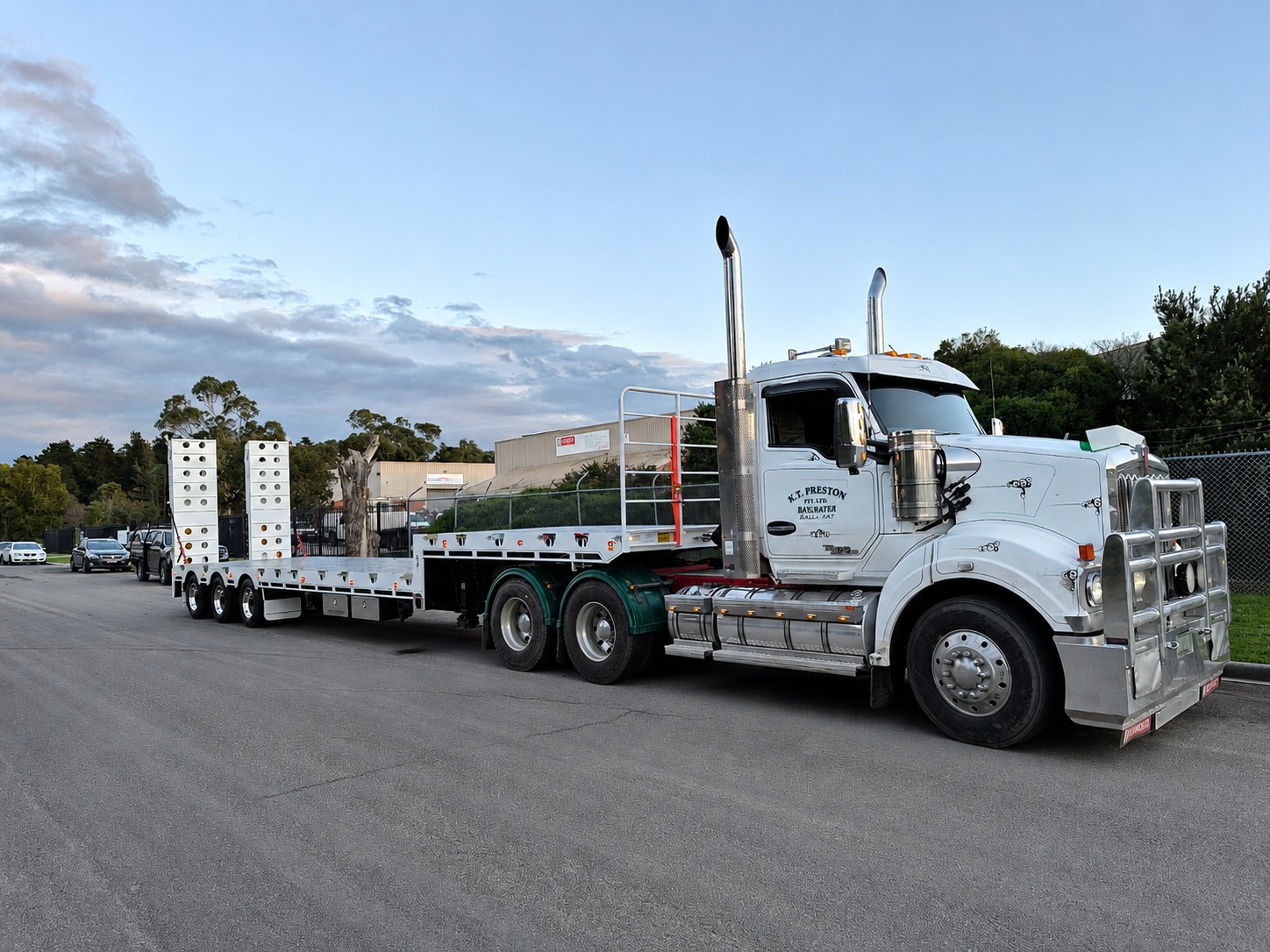

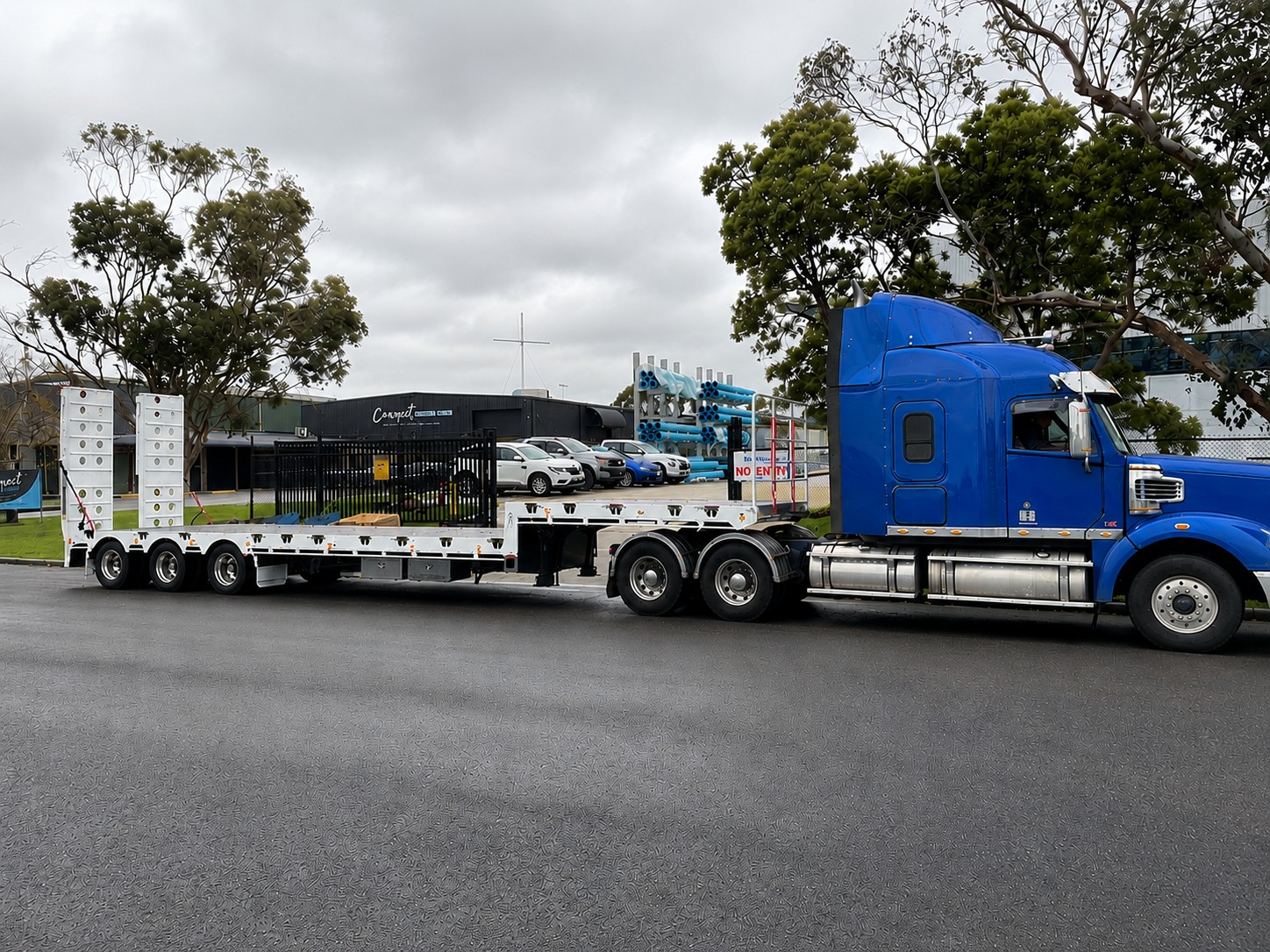

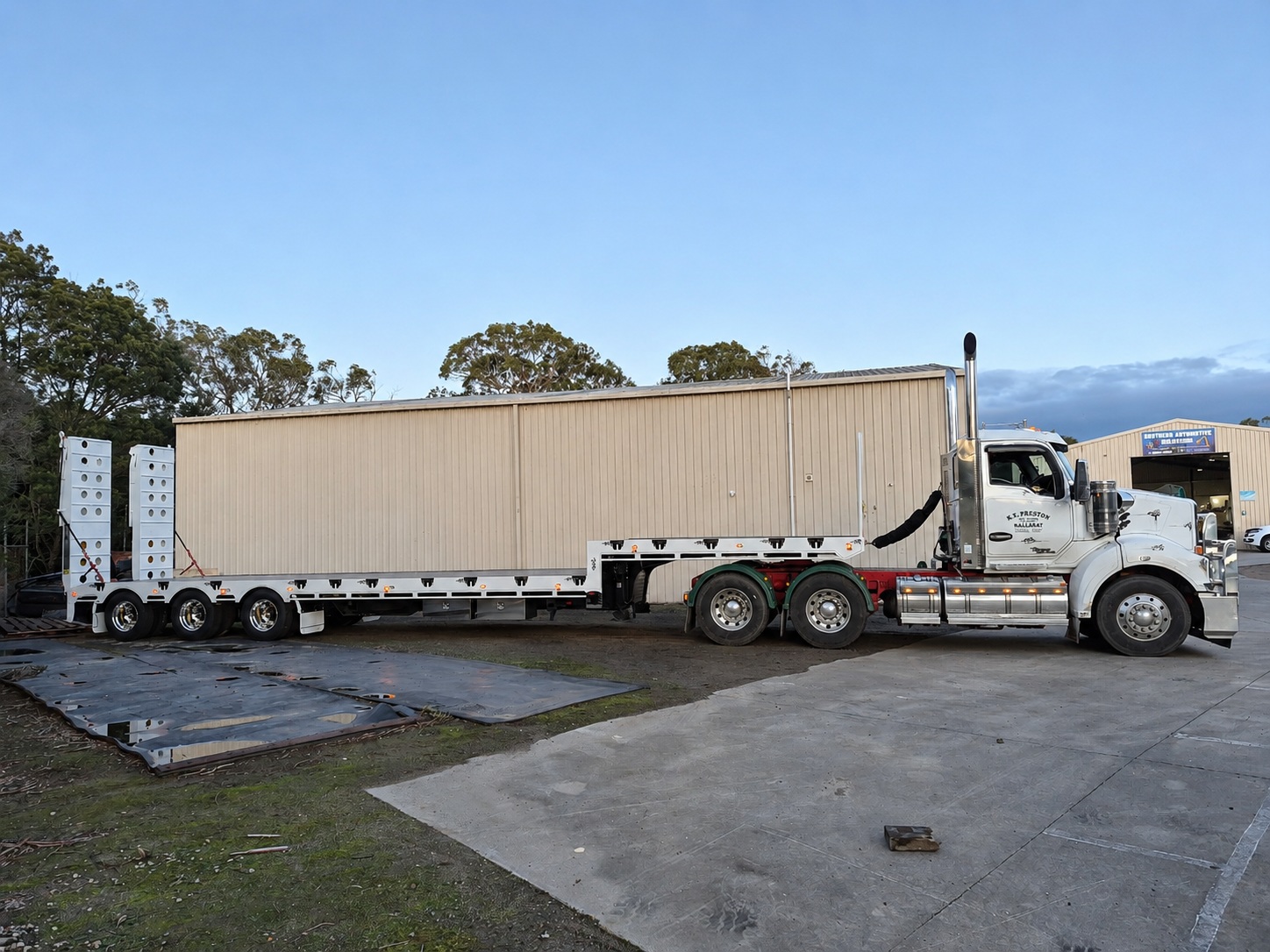

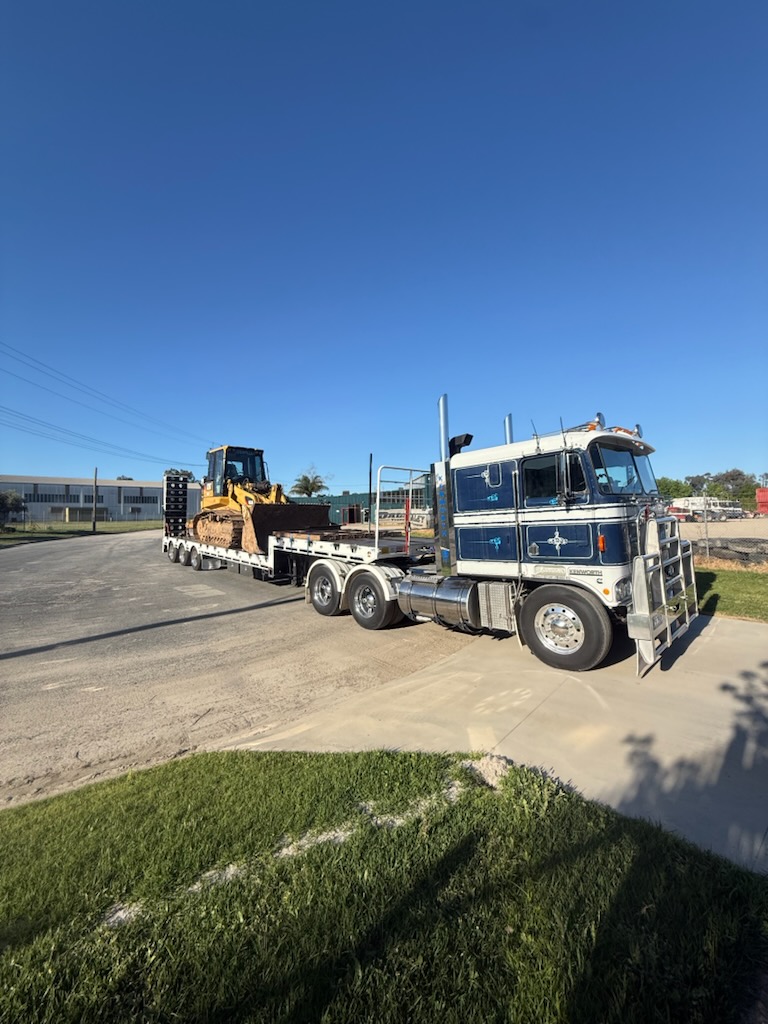

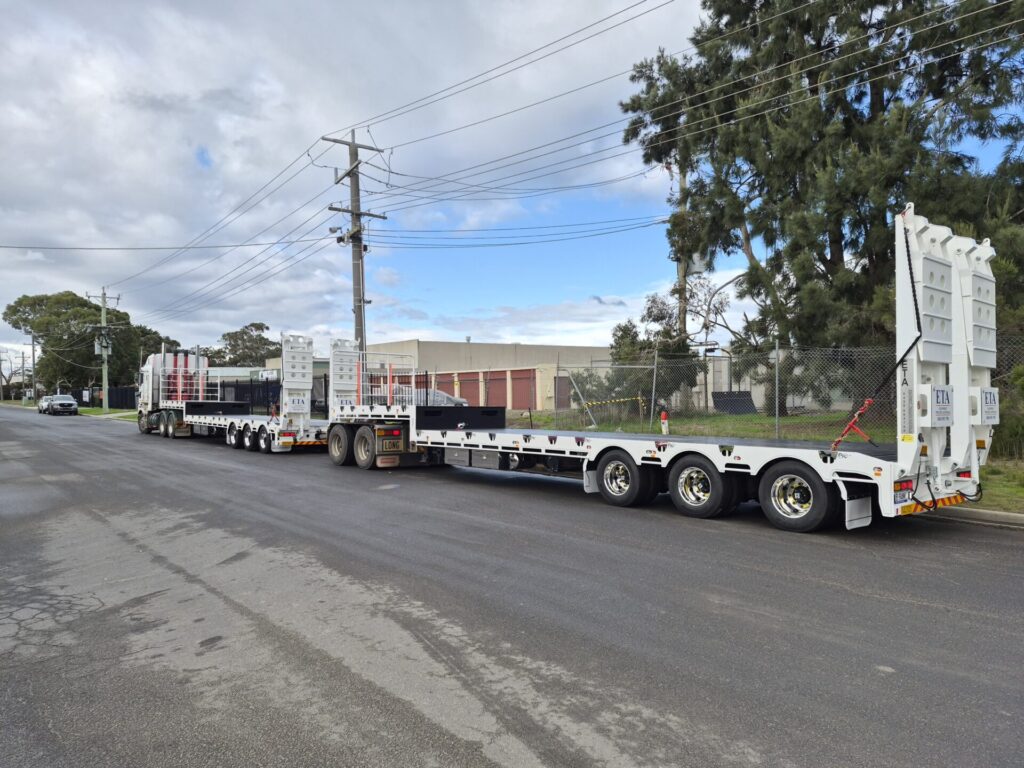

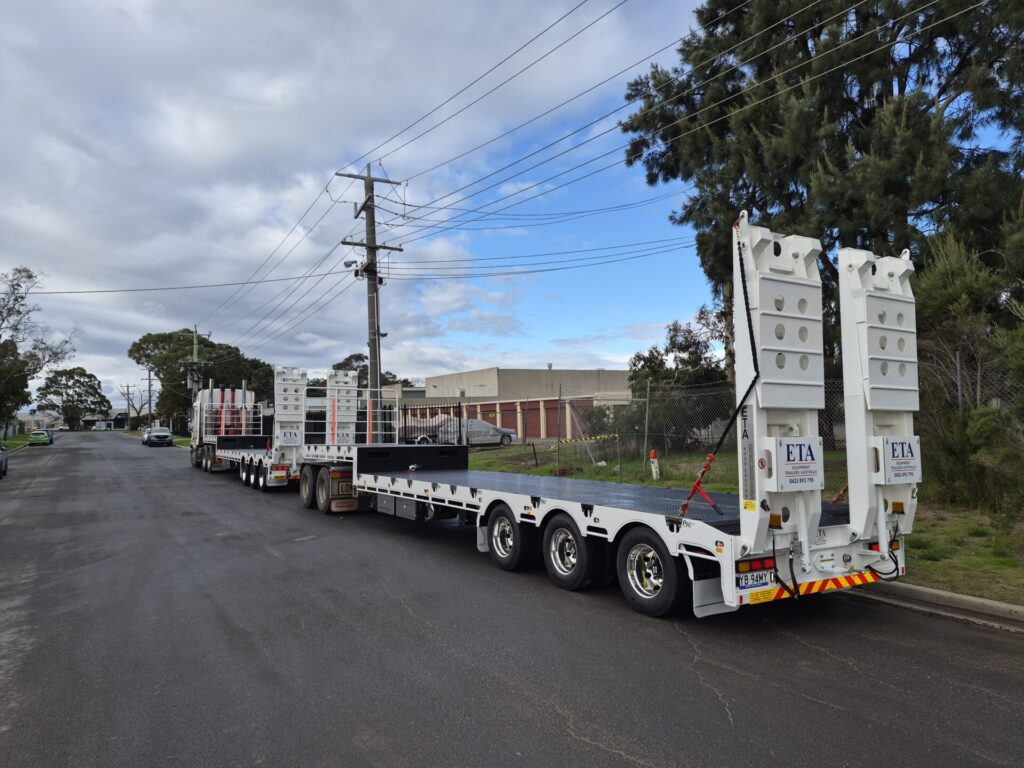

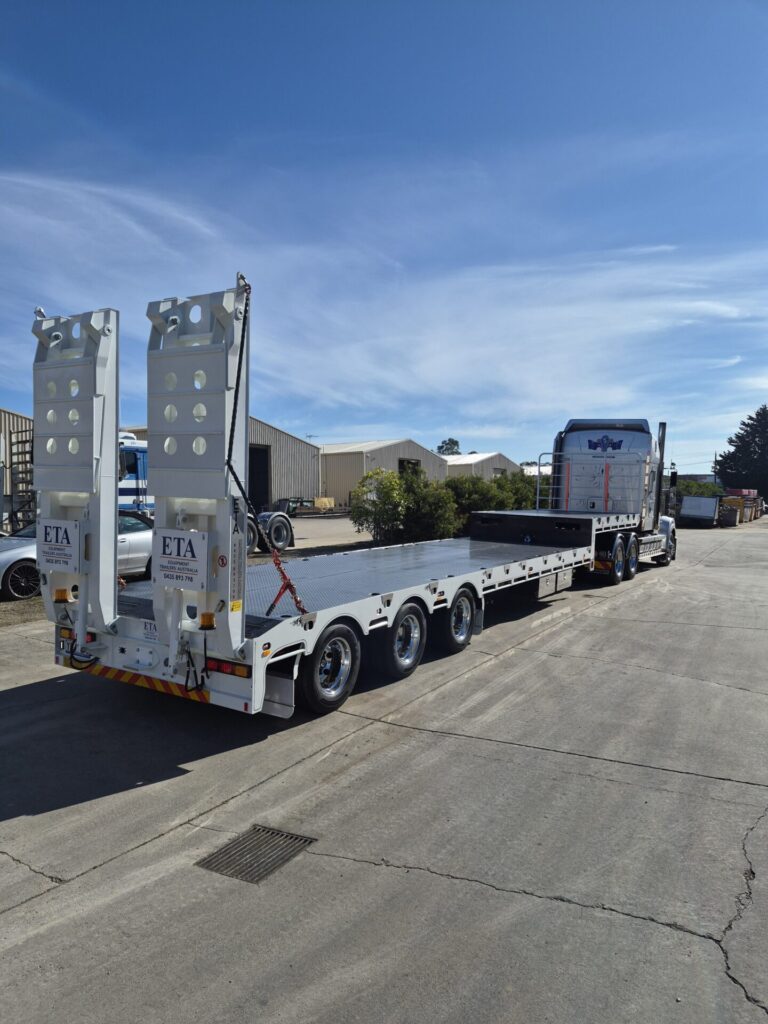

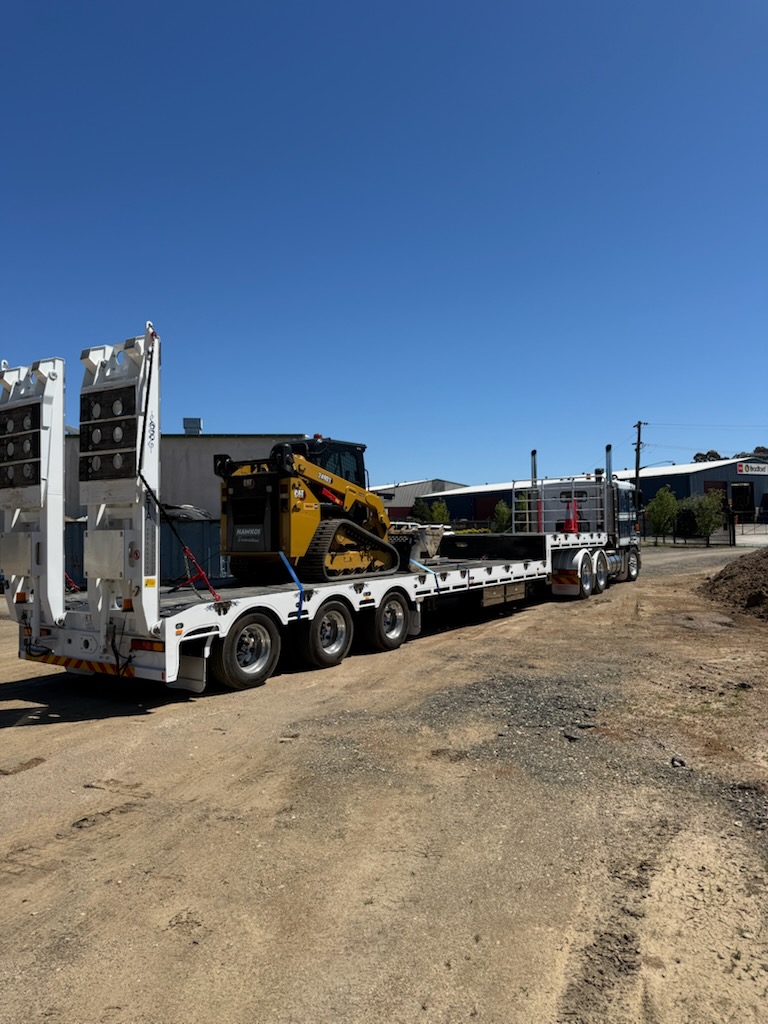

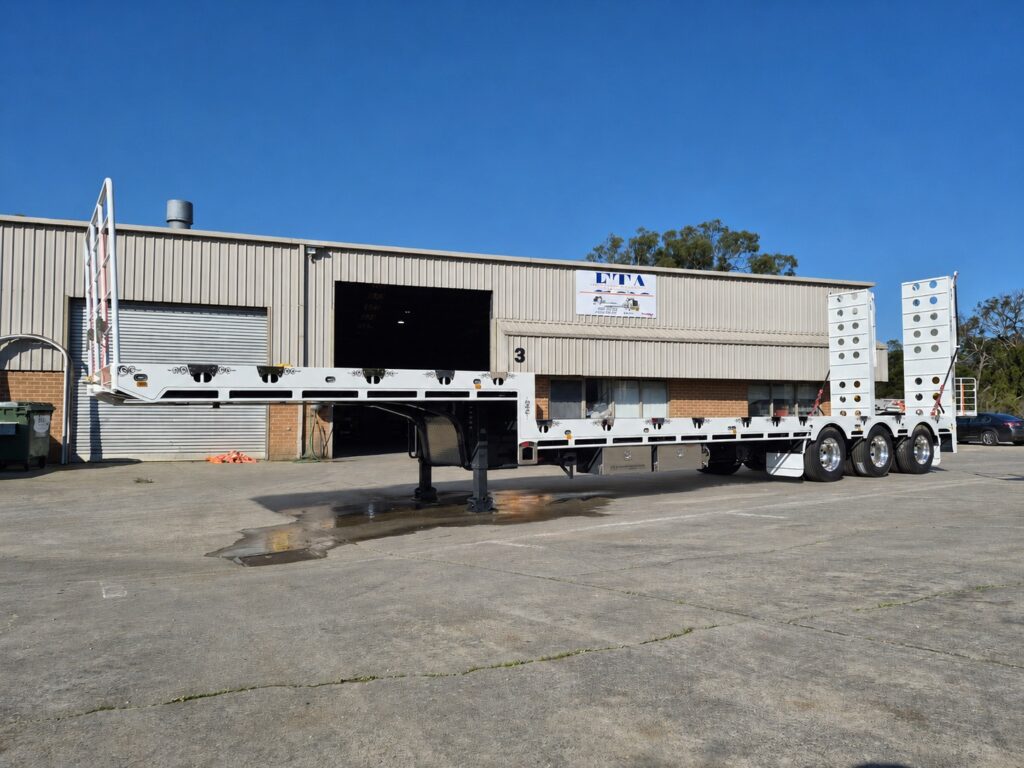

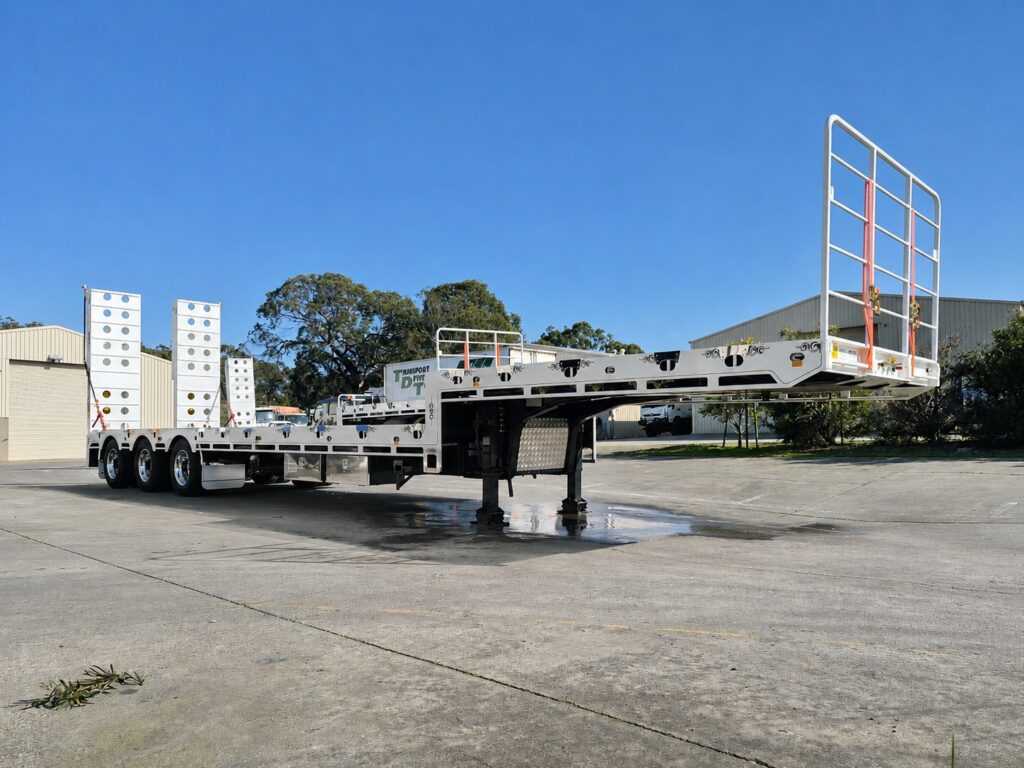

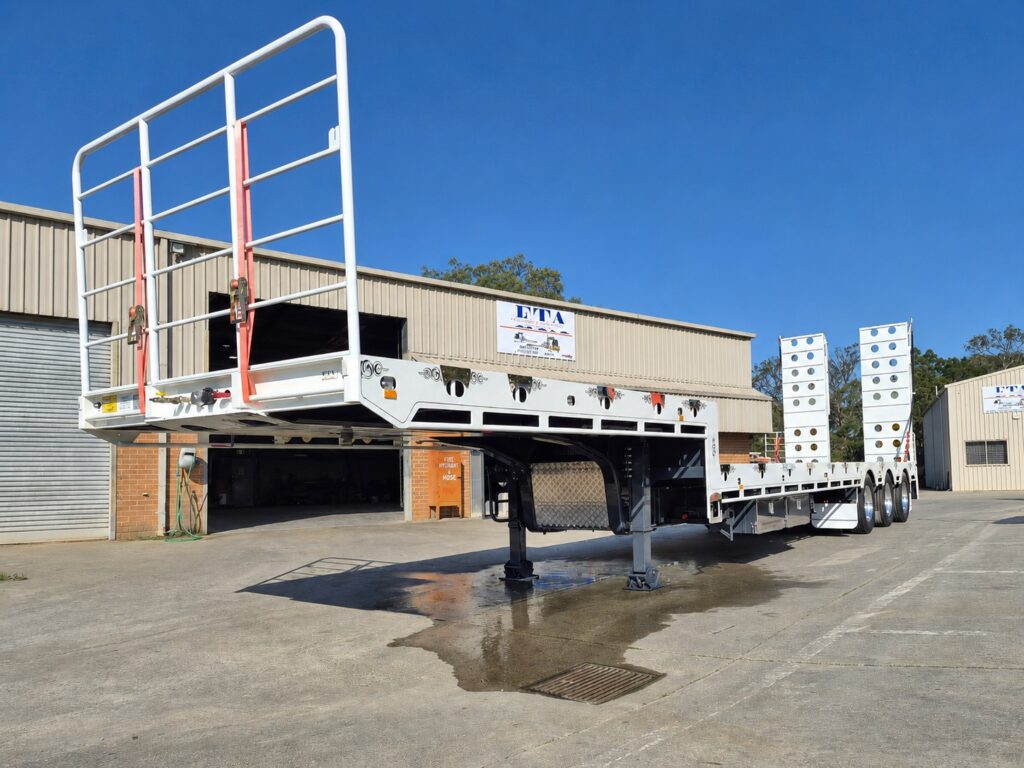

gallery of completed projects
