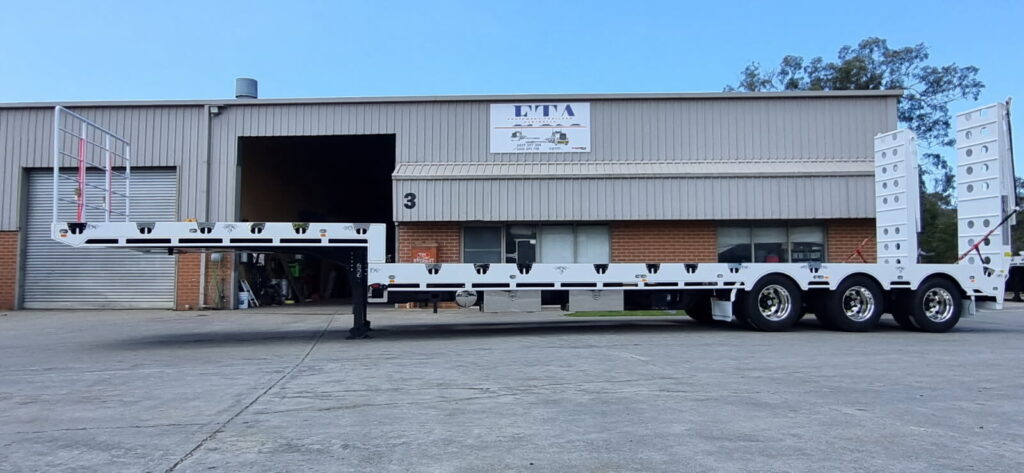

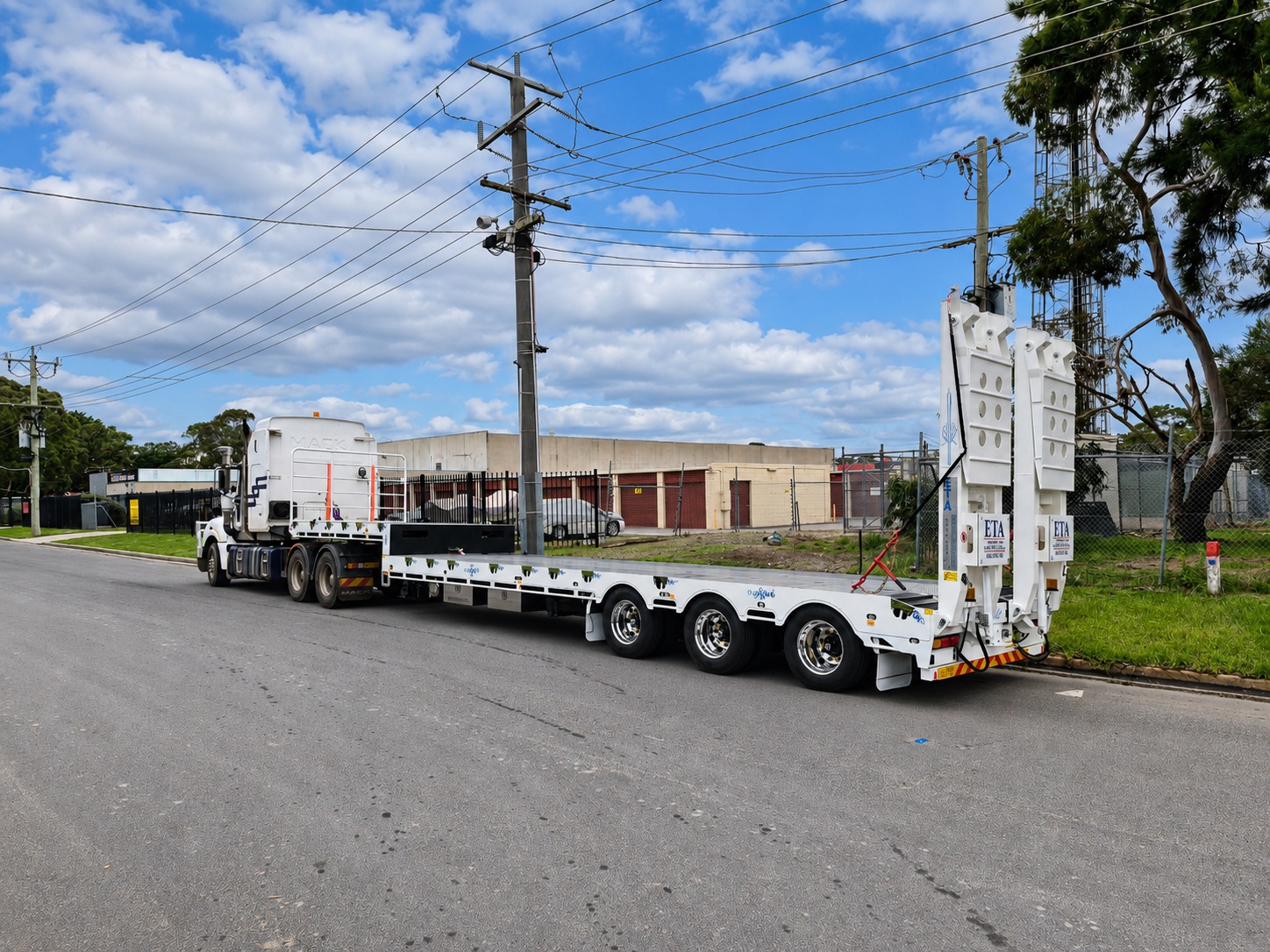

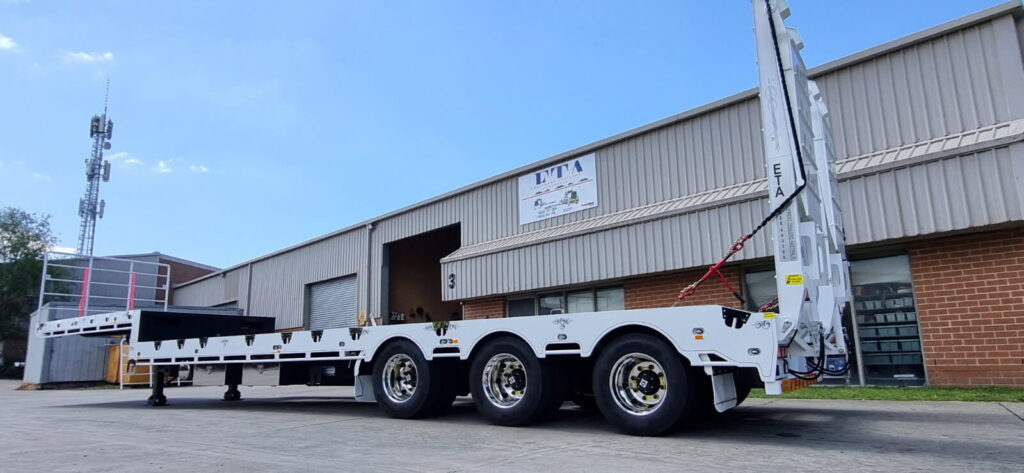

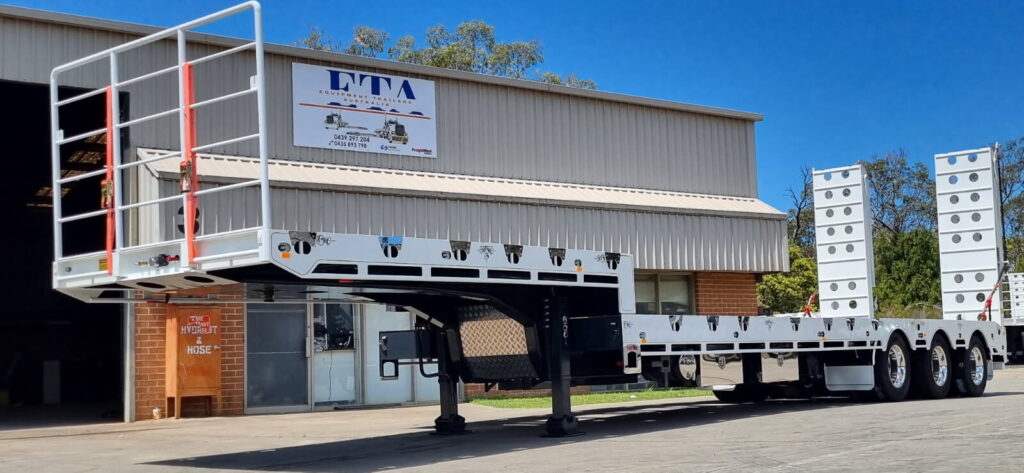

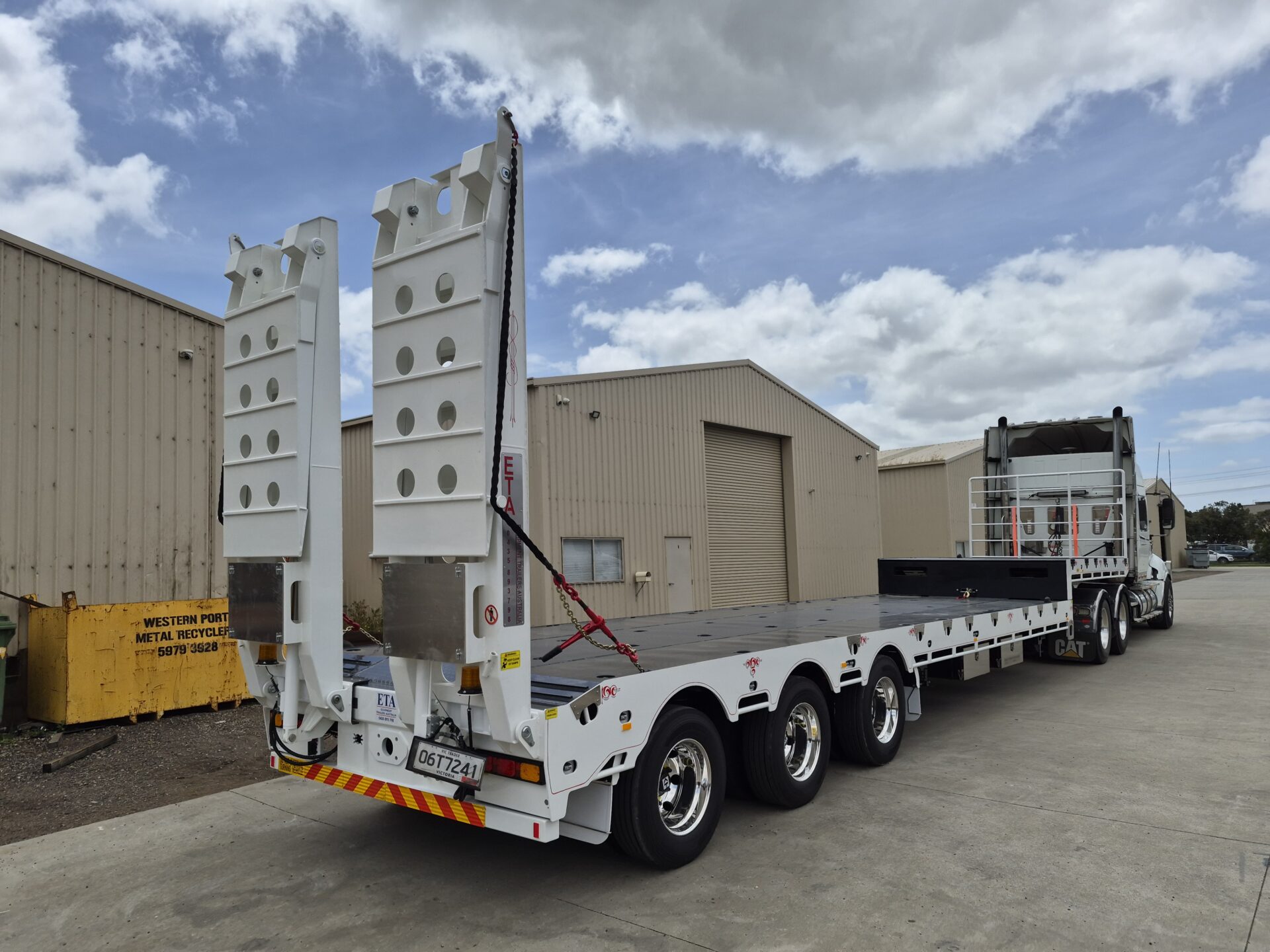

45FT FREIGHTWEST NEXT GEN drop deck WIDENER

Official East Coast Distributor for FreightWest Next Gen Trailers.

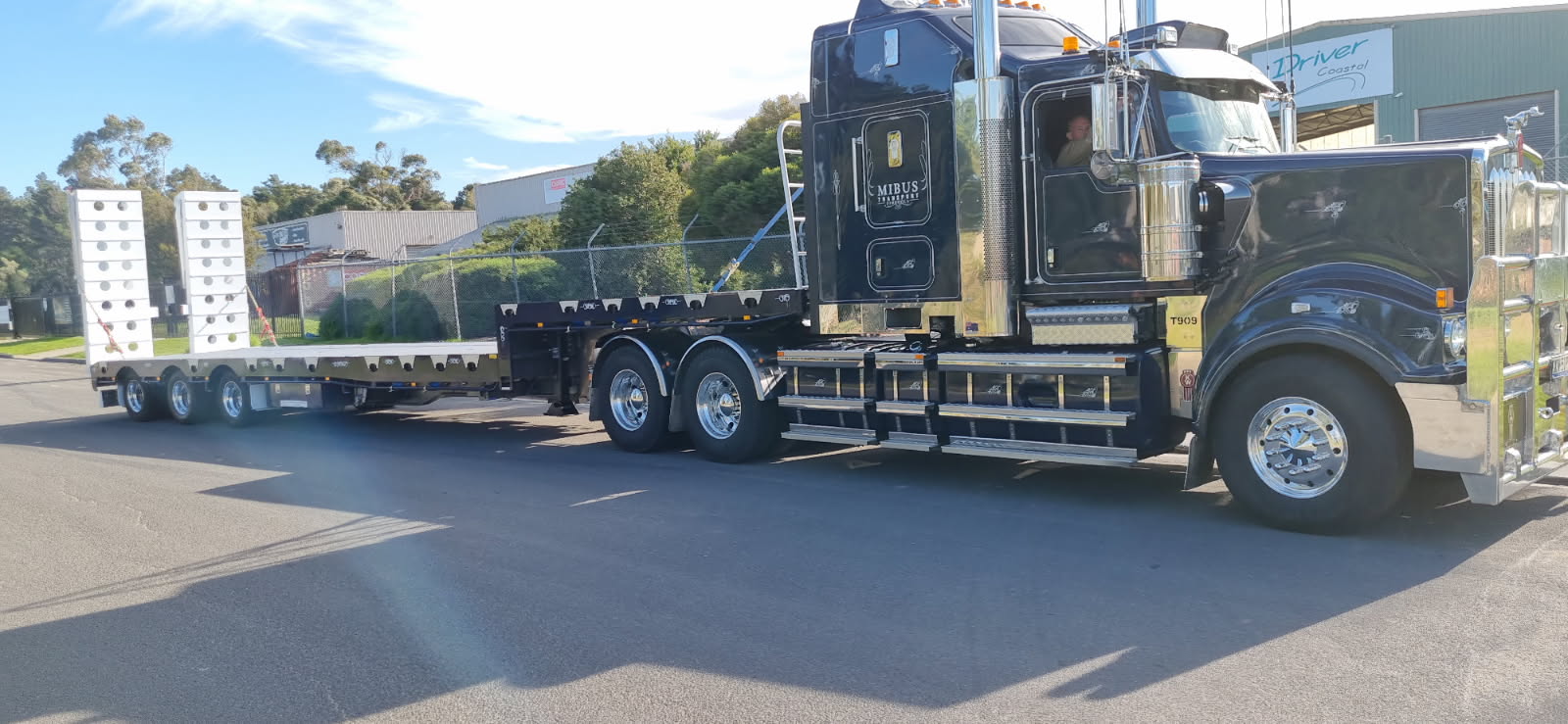

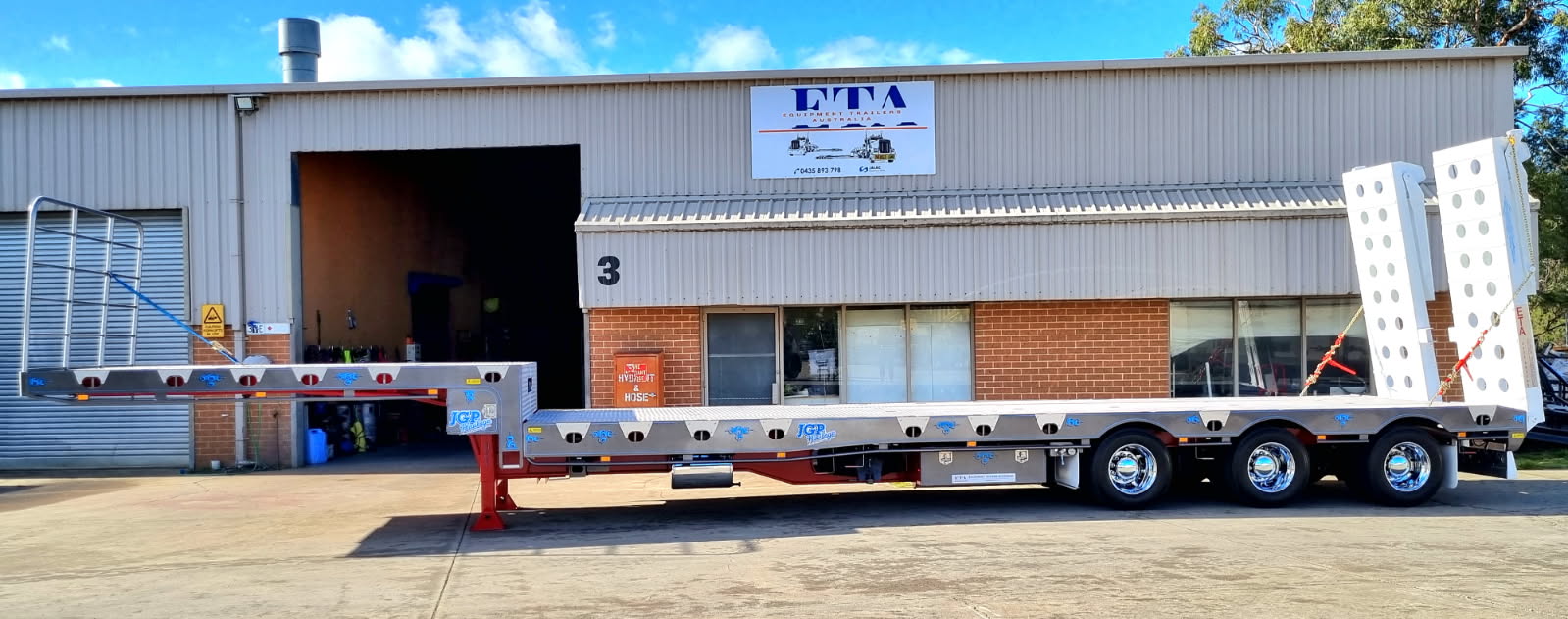

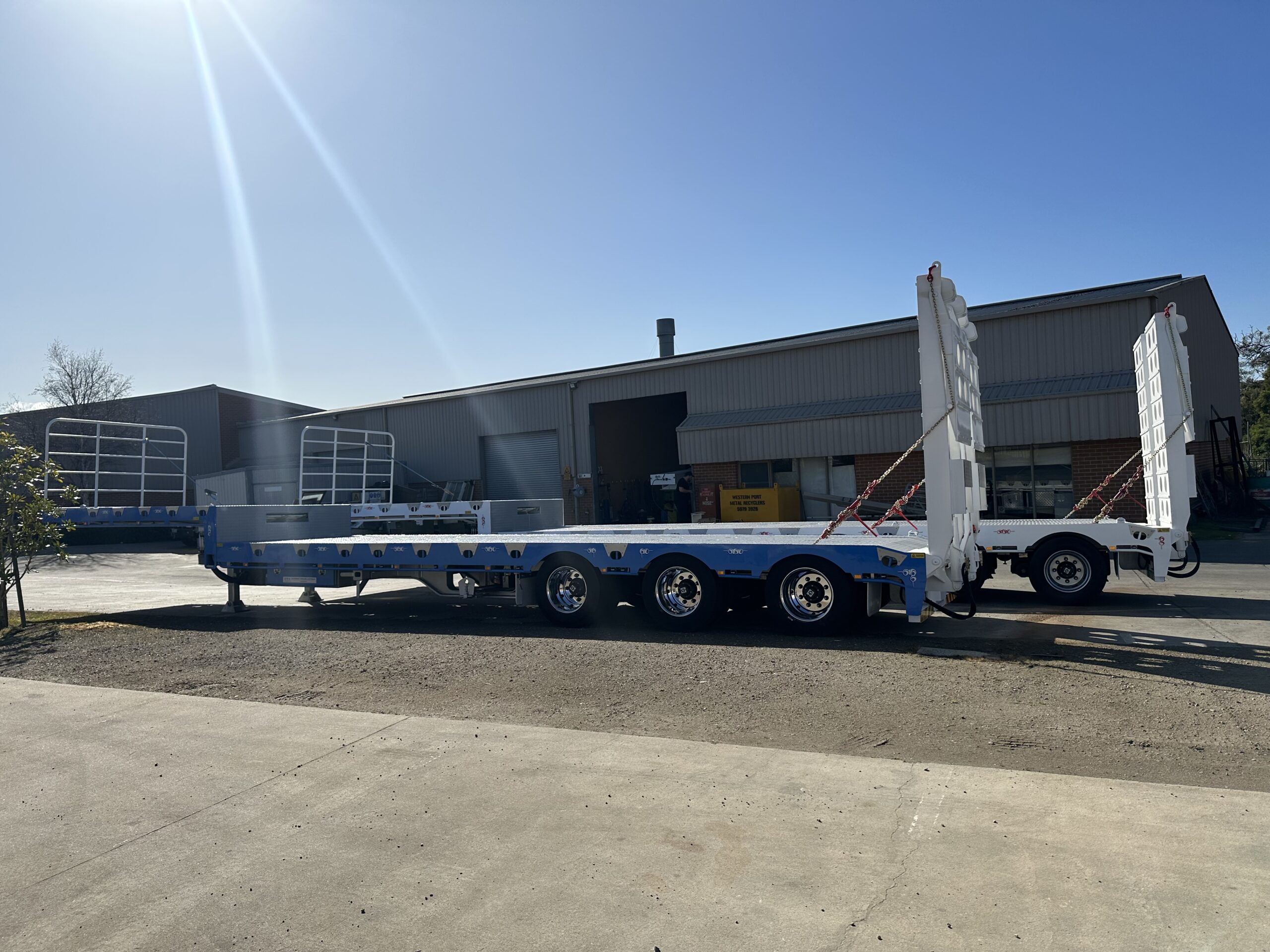

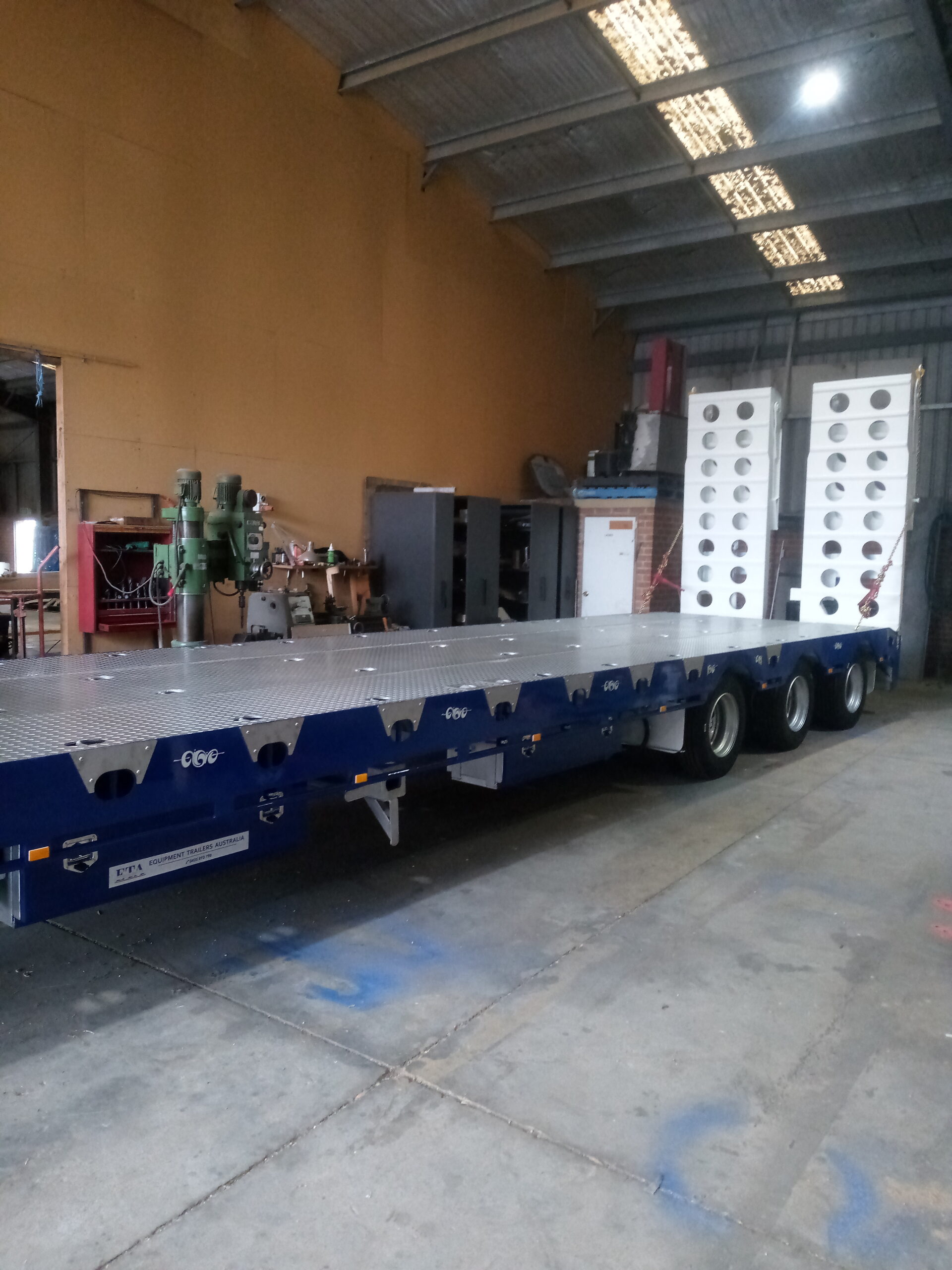

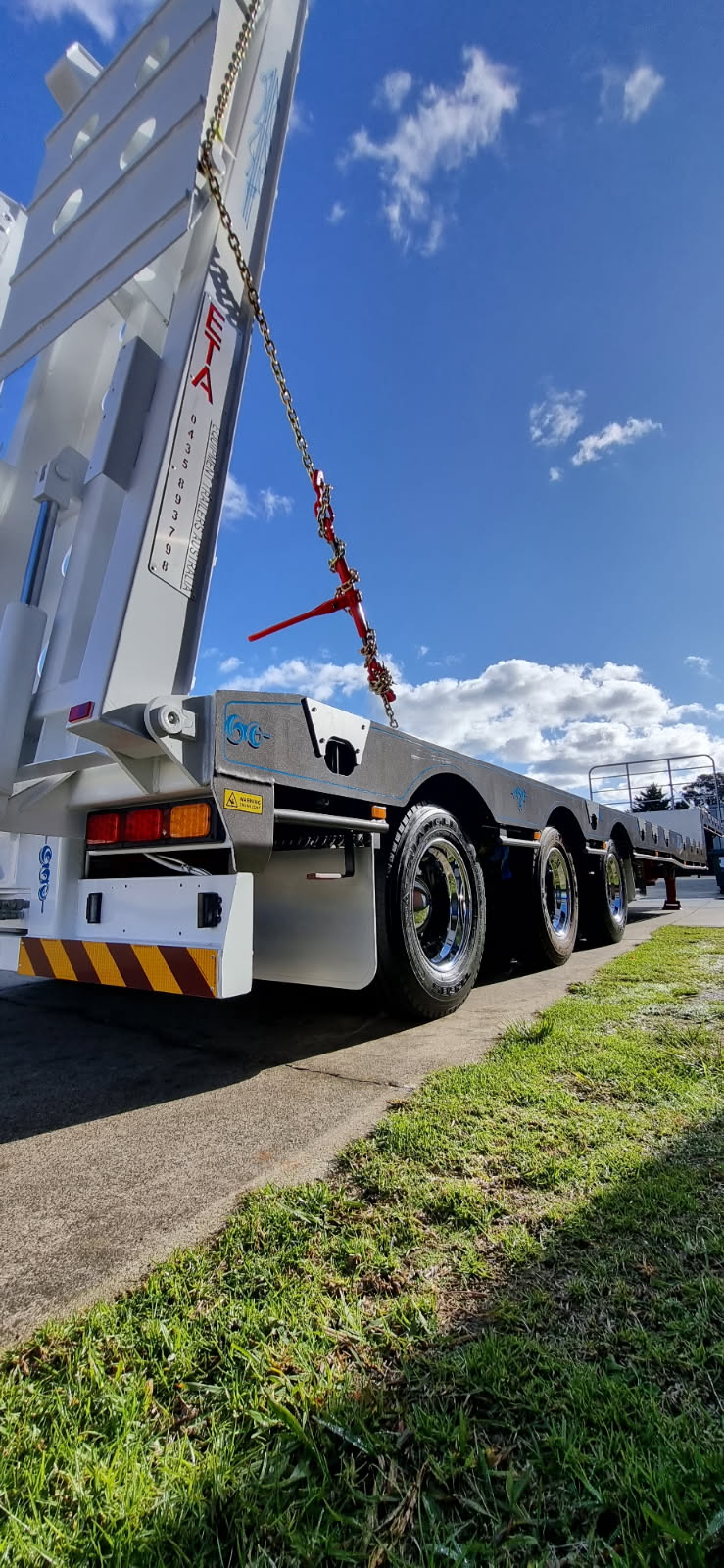

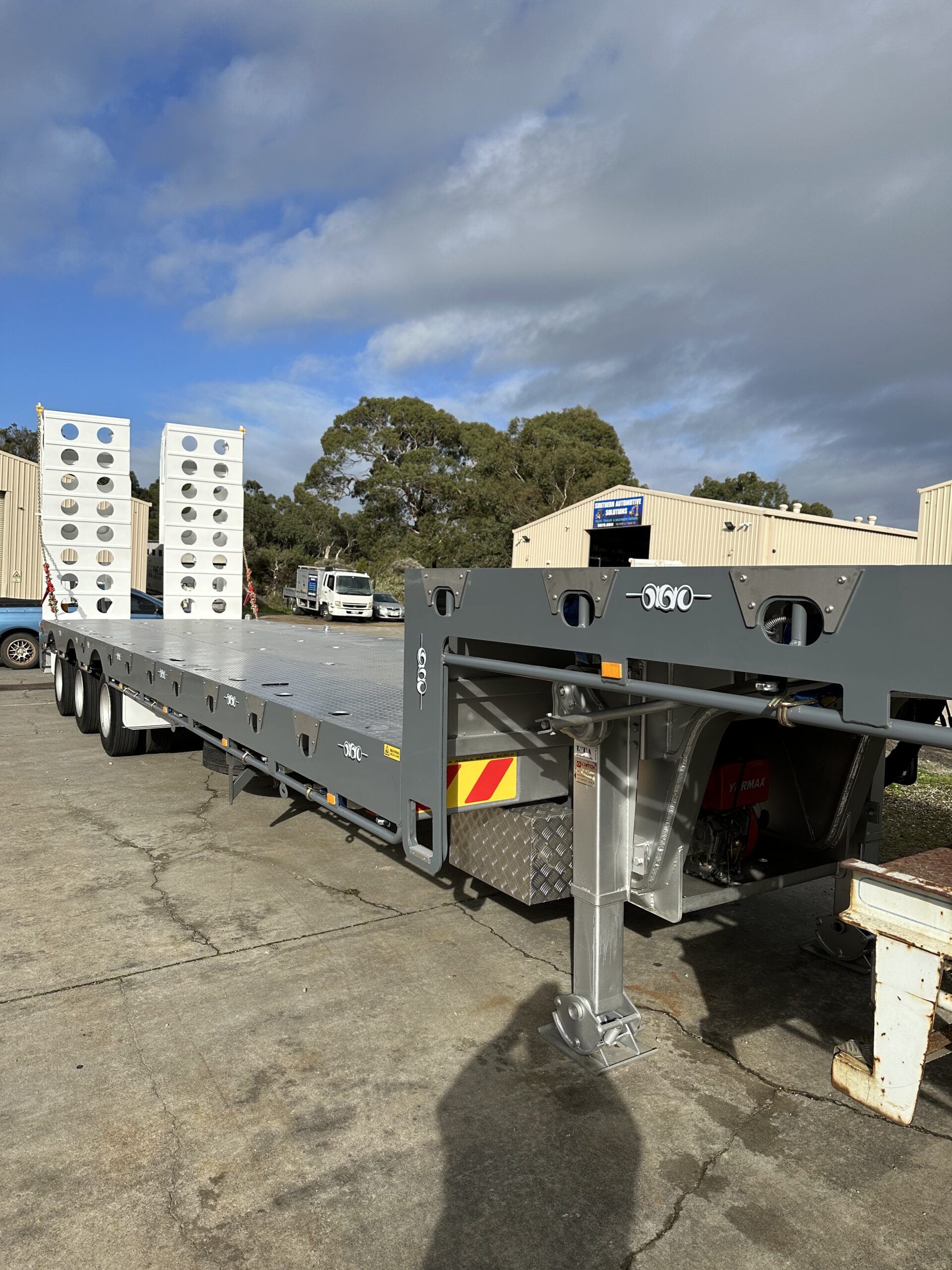

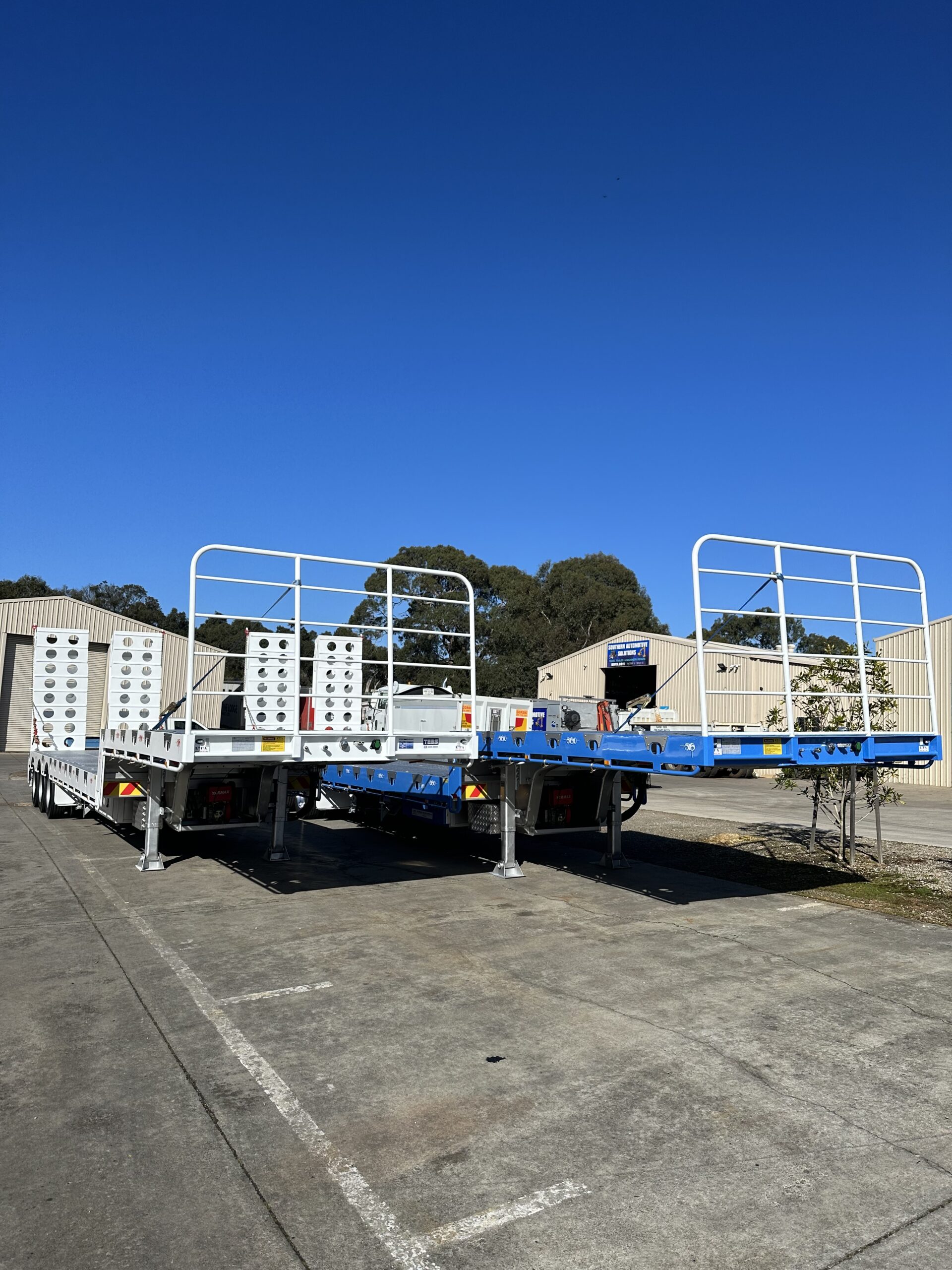

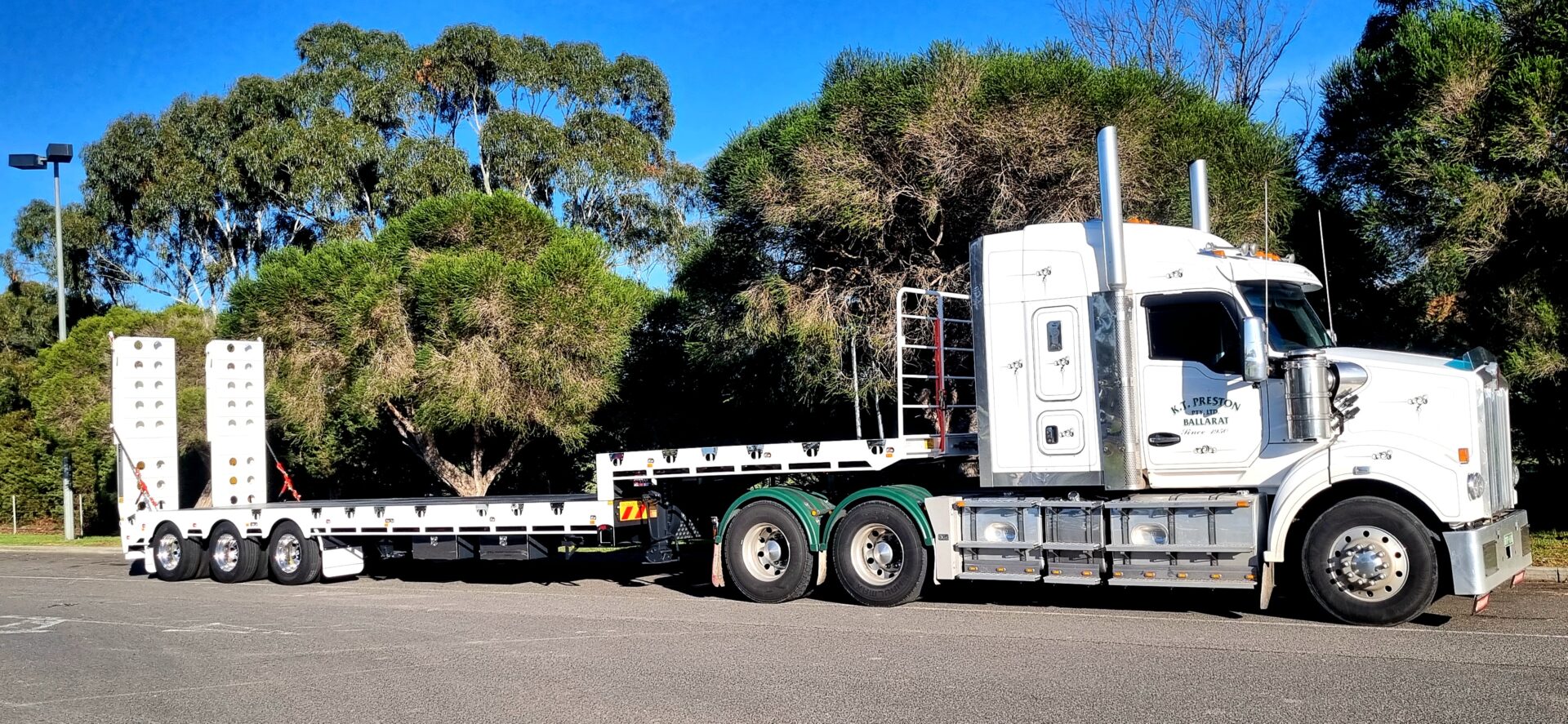

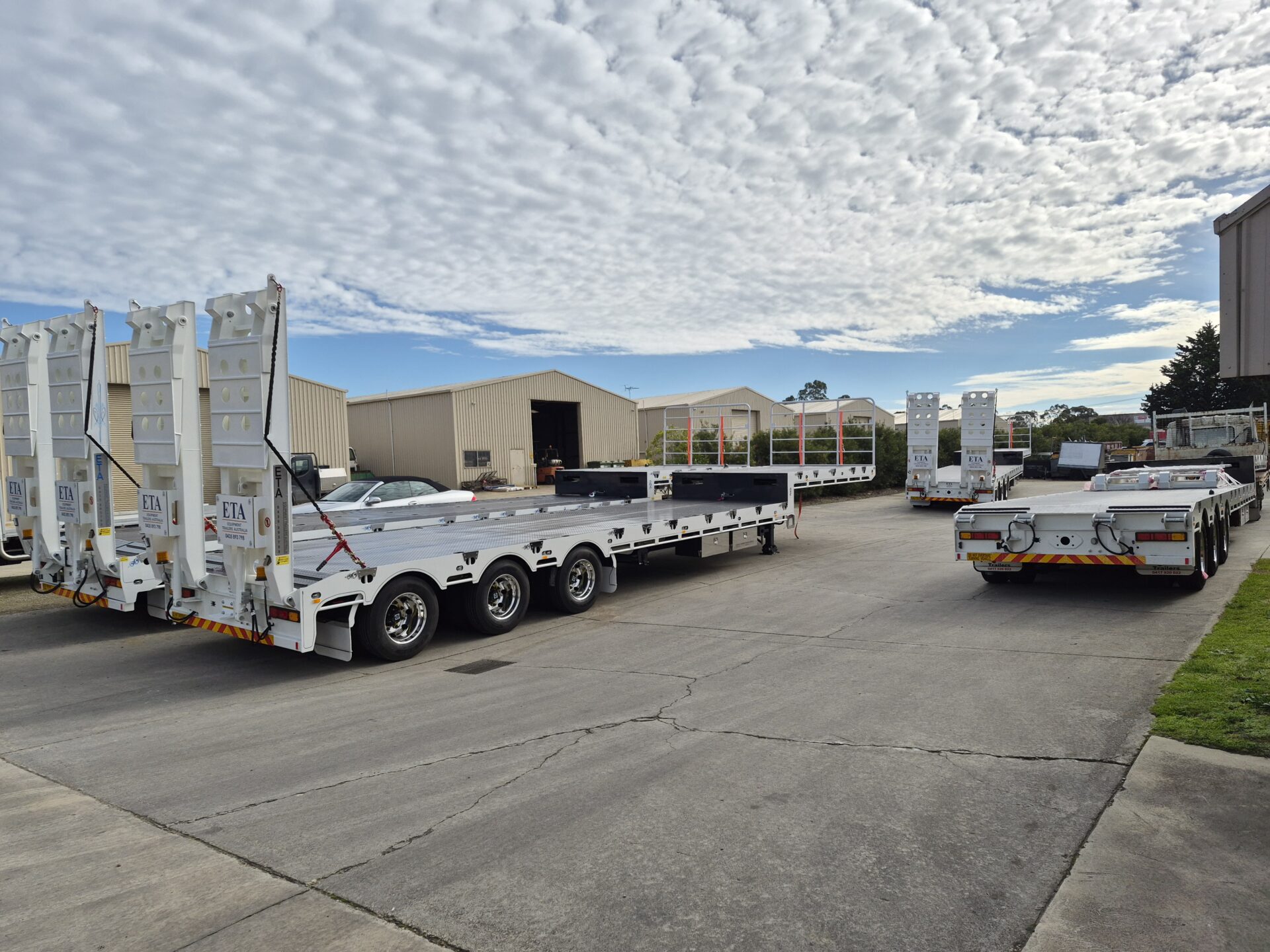

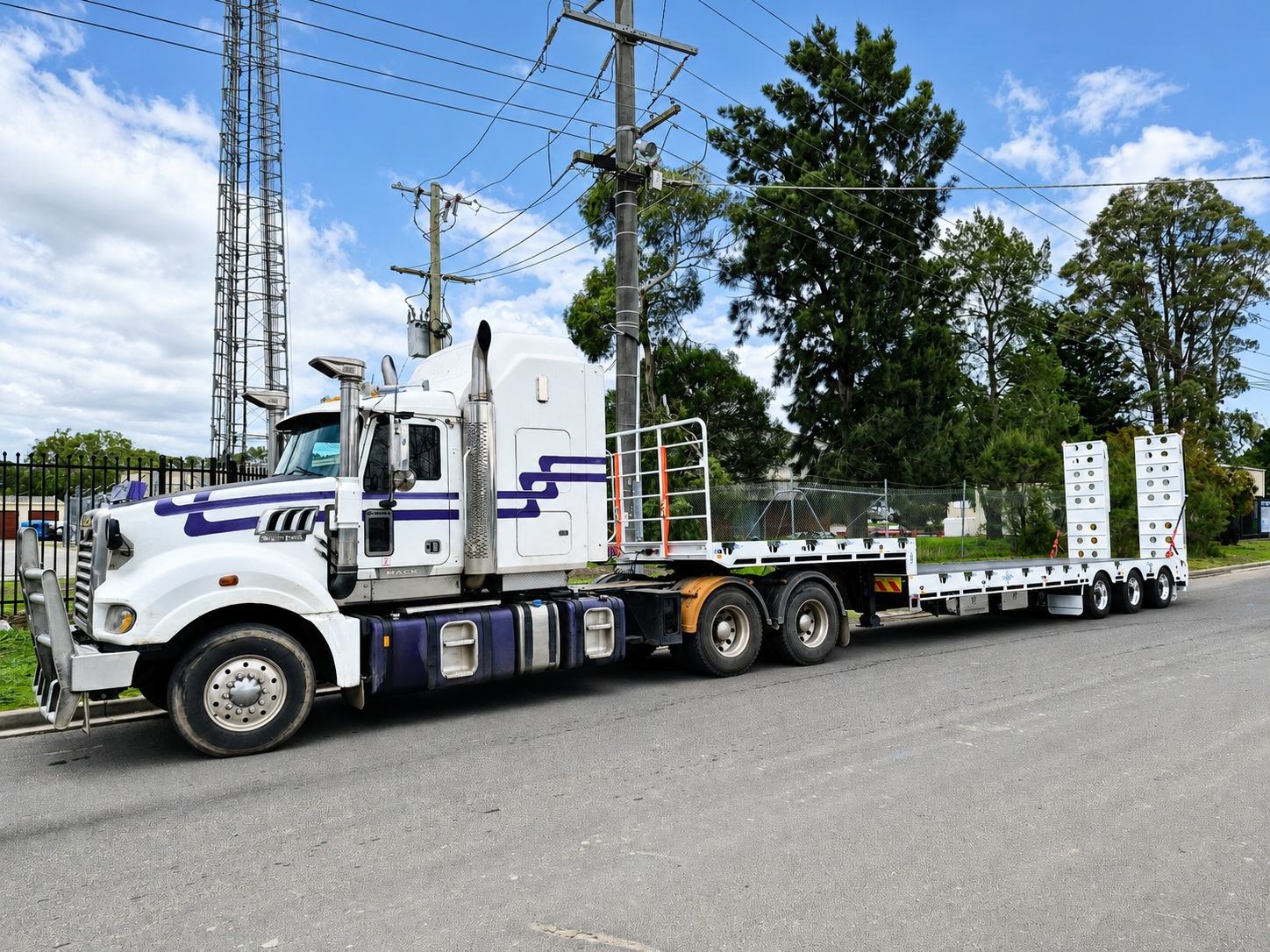

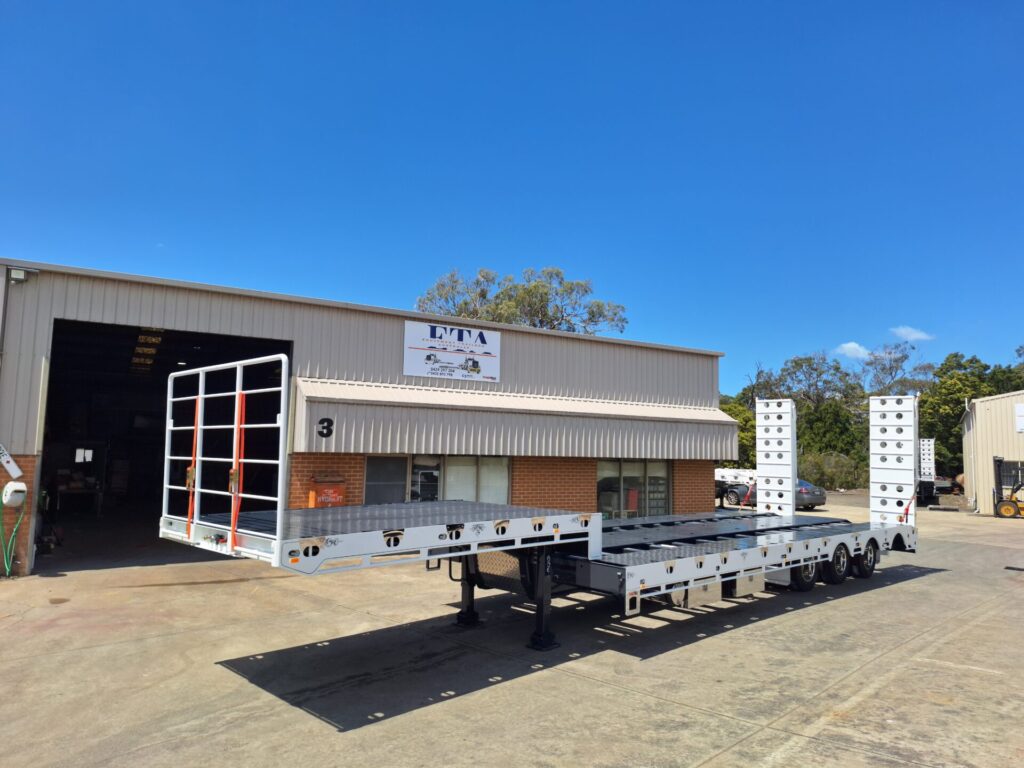

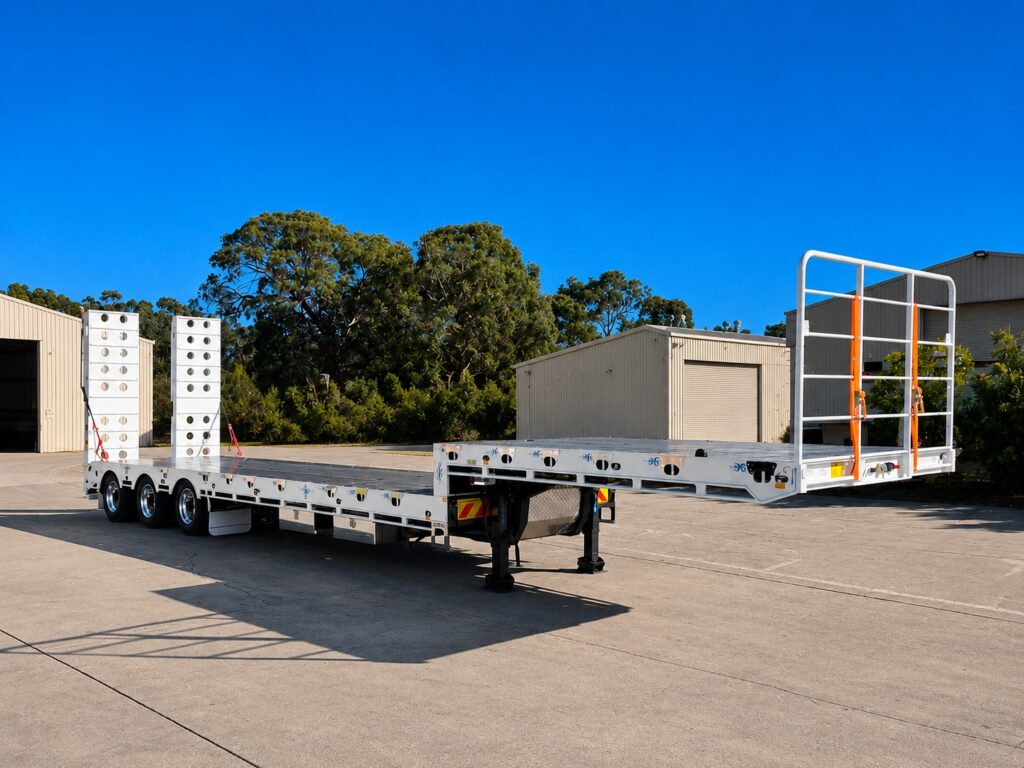

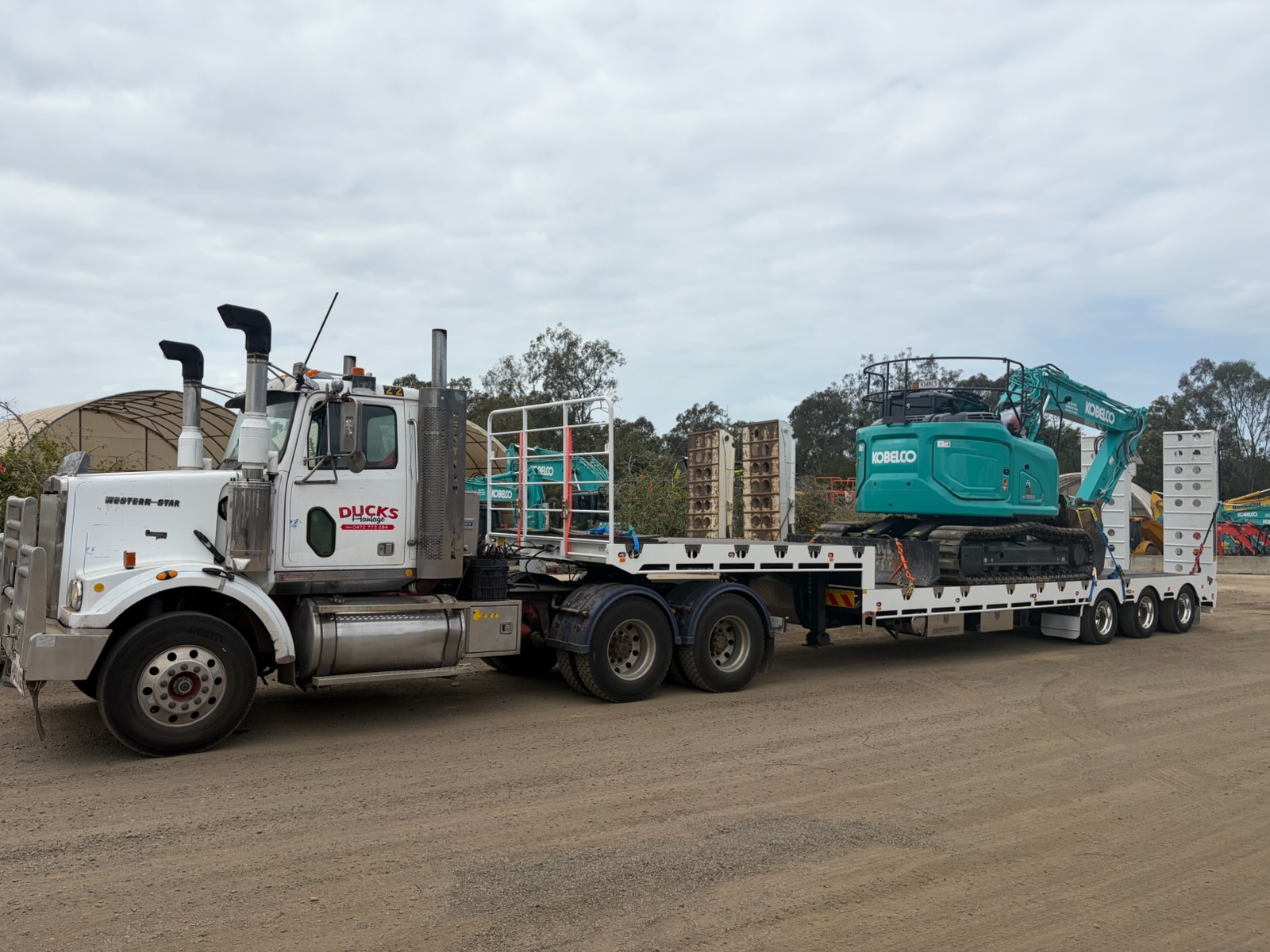

The FreightWest Next Gen 45ft Drop Deck Widener is built for oversized loads and heavy machinery, featuring Australian-spec K-Hitch running gear, WABCO EBS braking and a widening deck up to 3.5m.

Built to work. Built to last.

Call Us Now Send An Enquiry

About Our 45ft Drop Deck Wideners

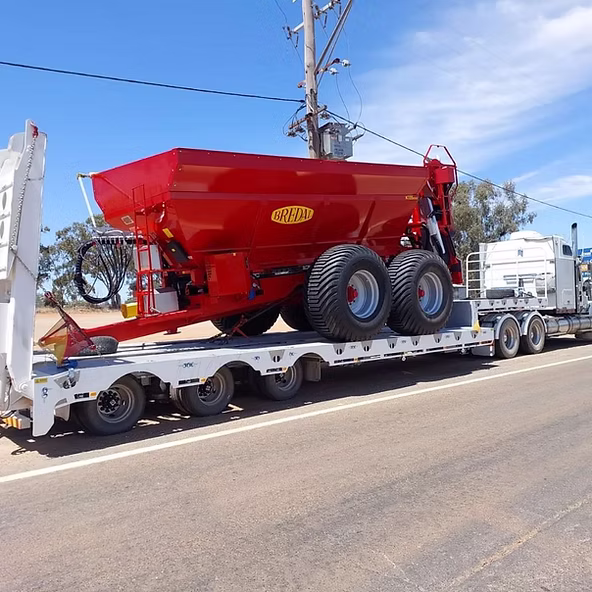

Drop deck wideners engineered for Australian conditions: Expanding to handle oversized loads and heavy equipment with durability.

47 Ton ATM
Length: 13,730mm
Width: 2,500mm – 3,500mm (hydraulic widening)
Deck Height: 995mm
Fuwa K-Hitch air suspension with raise/lower valve
50mm King Pin, 2-position

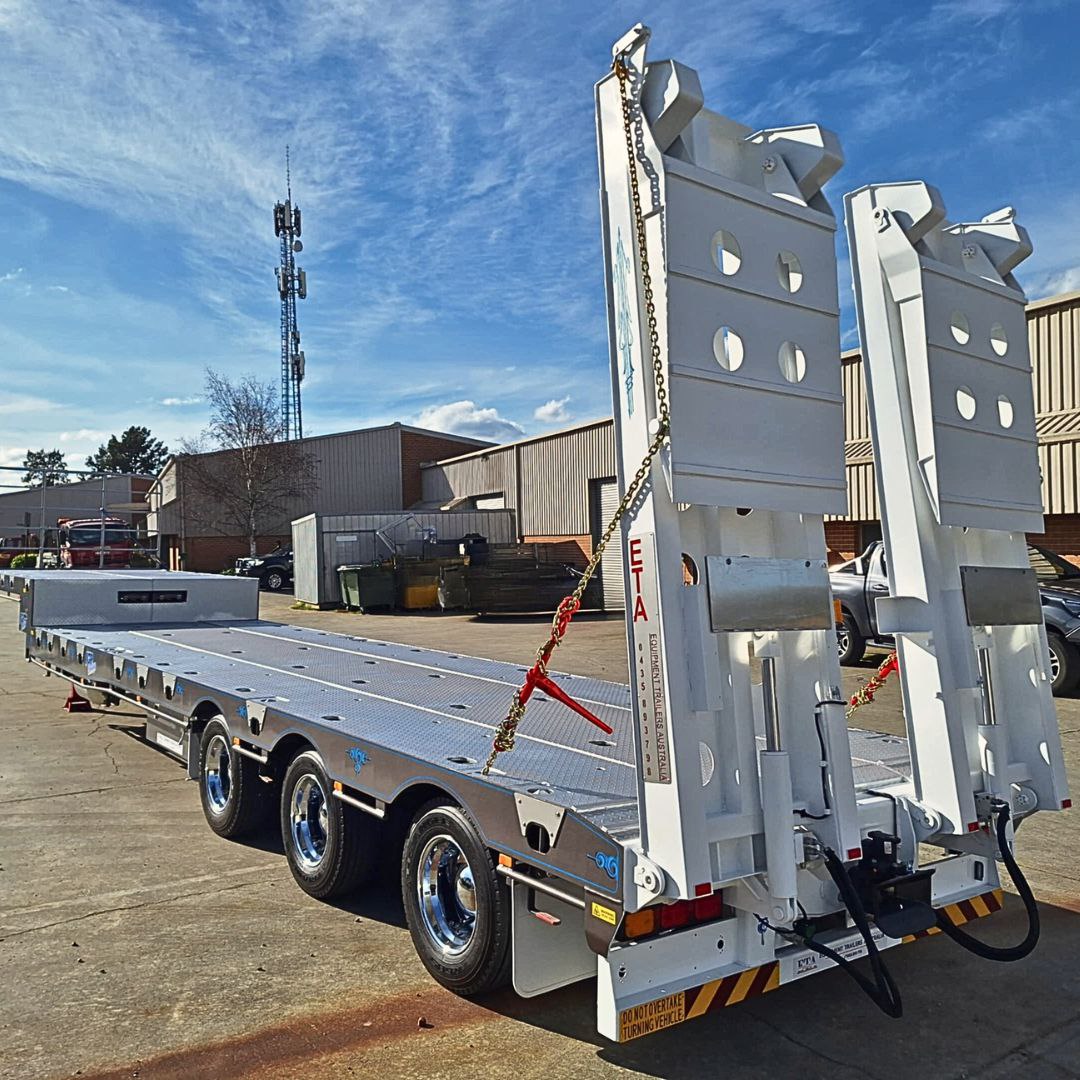

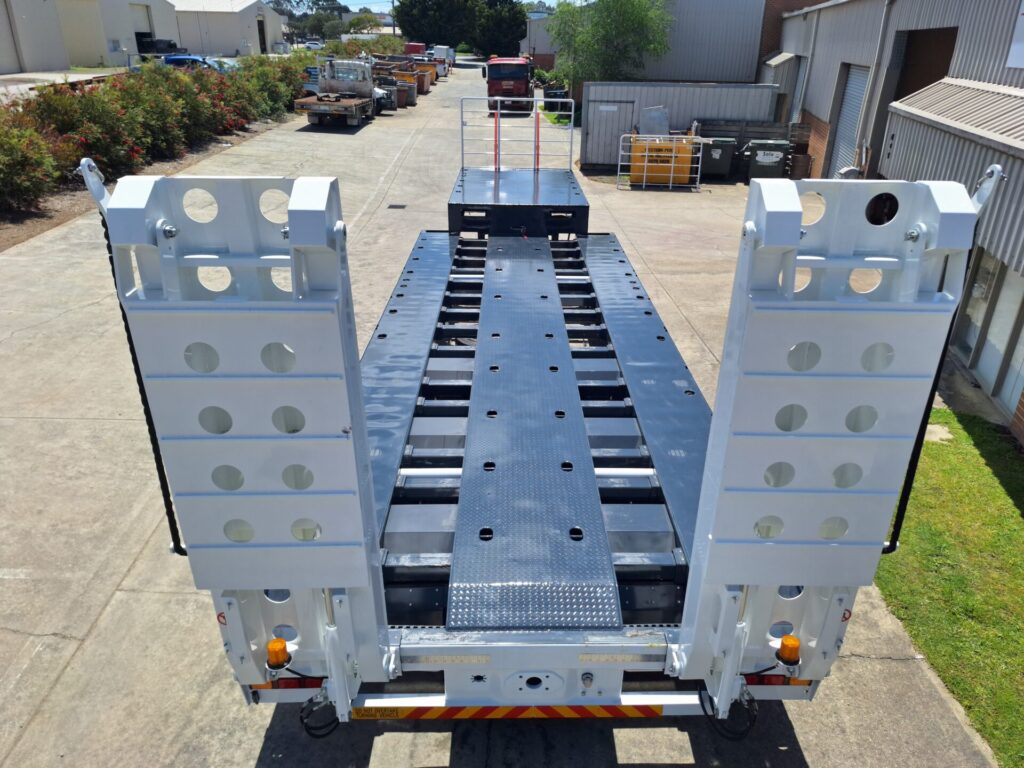

Bi-fold ramps, 840mm wide
Hydraulic widening with 4 cylinders
Full LED ADR-approved lighting
Customised hand-painted scrollwork

Call Us Now

why choose our drop deck wideners

We design and build drop deck wideners engineered for performance, not just appearance.

We are also known for:

Australian Owned Company

Built tough for reliability & efficiency

Nationwide Delivery

Backed by ETA Warranty & Support

Quality, robust components that last

Drop Deck Widener trailer Specifications & Customisations

General Specifications

Length	13,730mm
Width	2,500mm – 3,500mm
Deck Height	995mm
Tare Weight	Approx. 11,900kg
ATM	47 Ton

Construction

Main Beam	Heavy-duty design with reinforced flanges and web plate

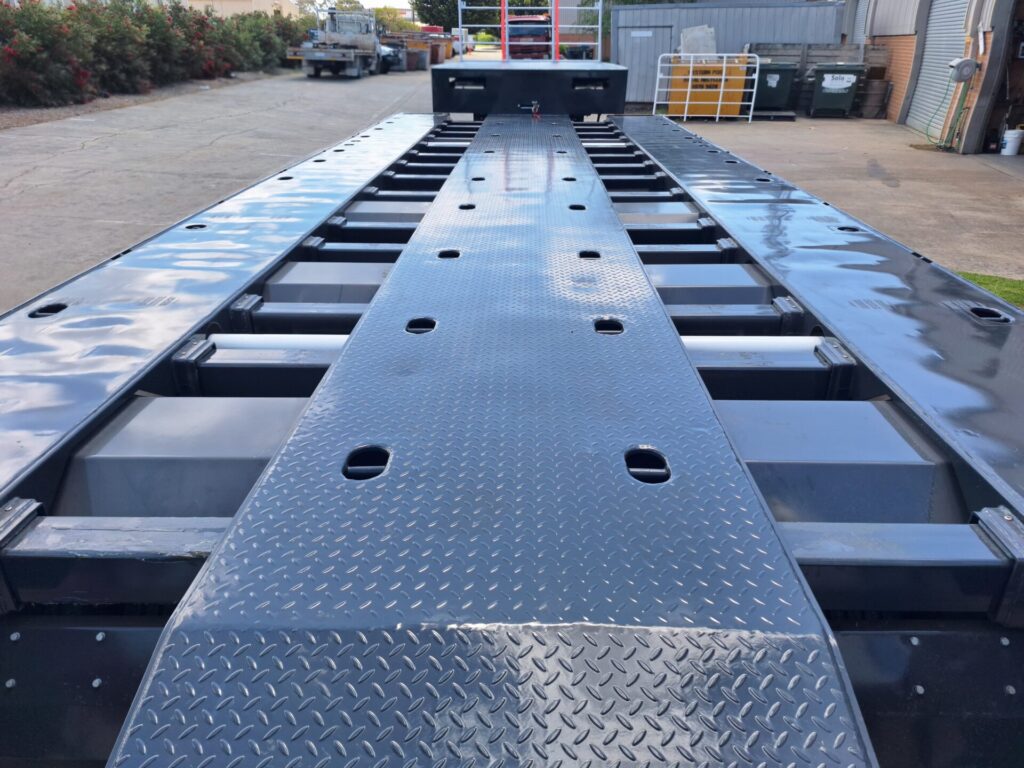

Flooring	5mm tread plate top and bottom
Sandblasting & Paint	Sa2.5, 2K primer, 2K top coat
Colour	White

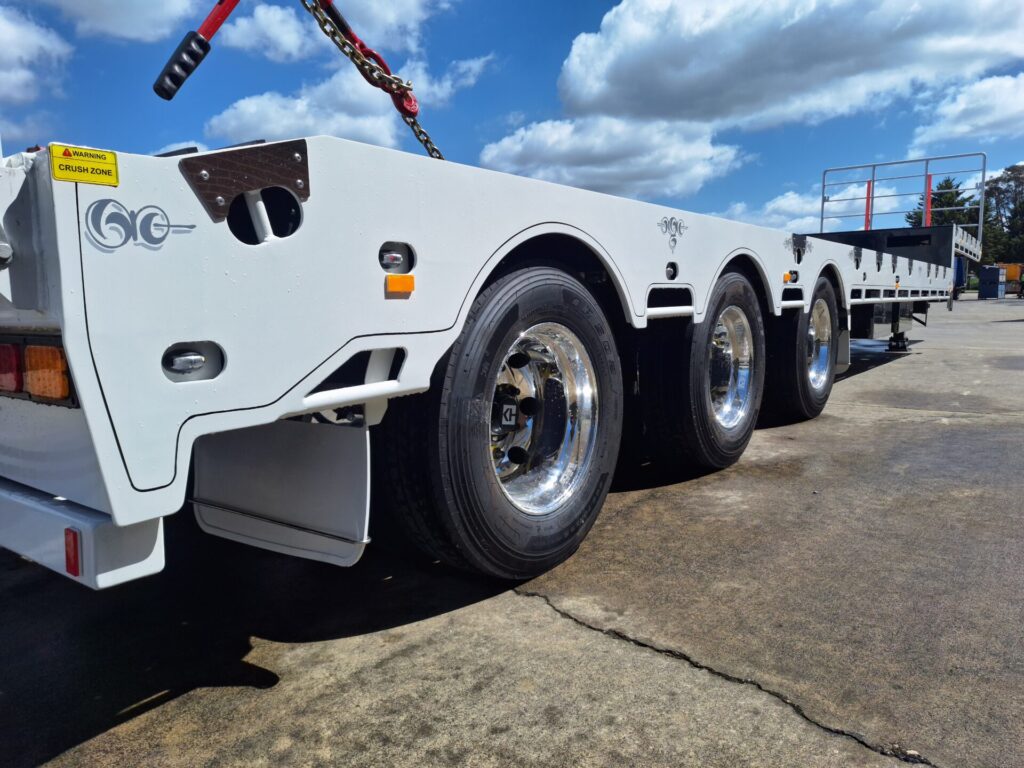

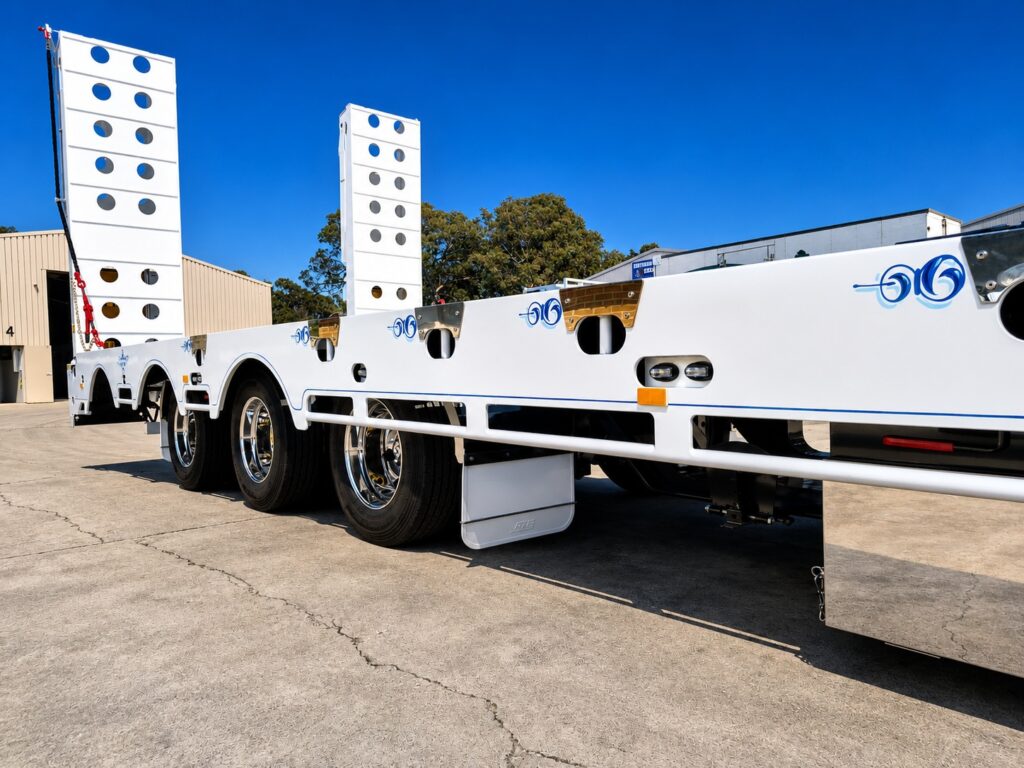

Running Gear

Suspension	Fuwa K-Hitch air suspension with raise/lower valve

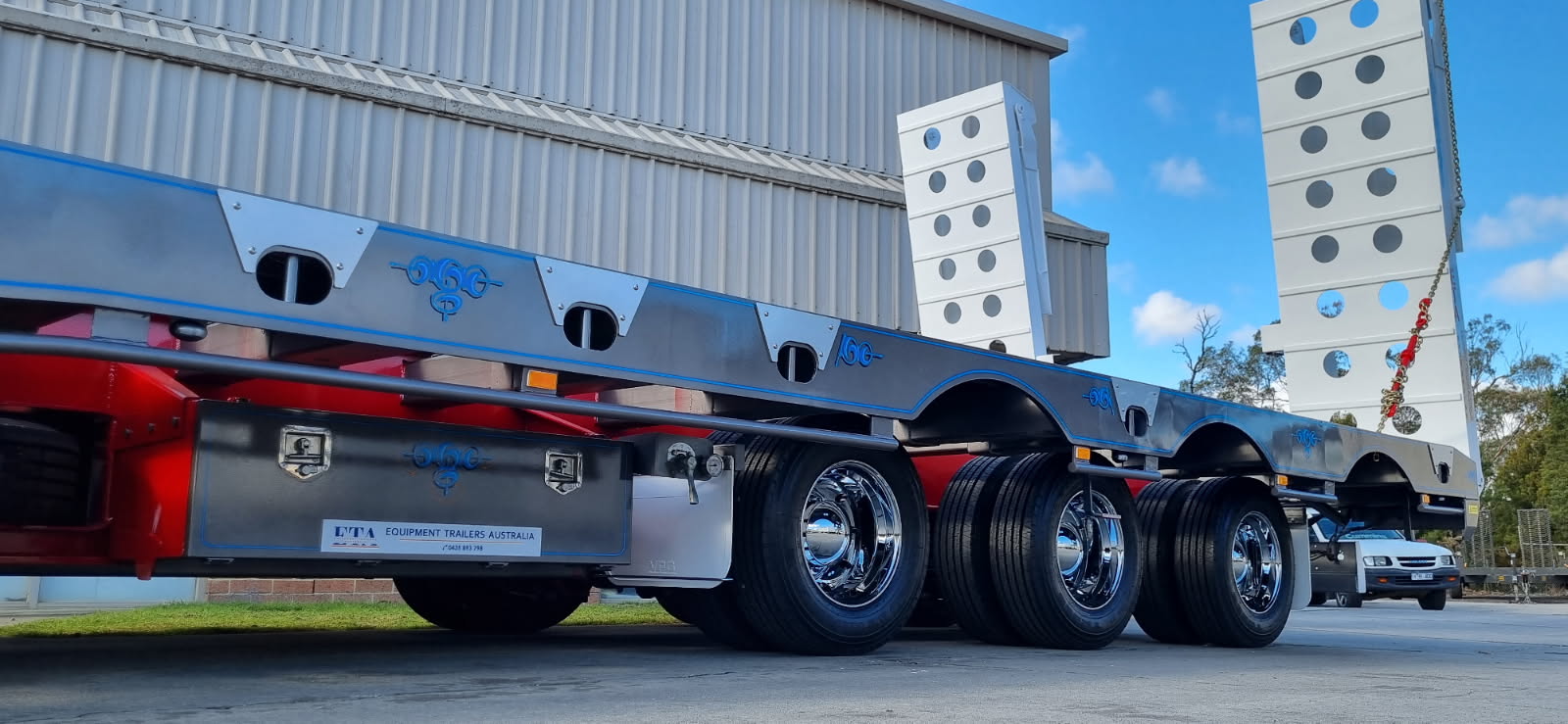

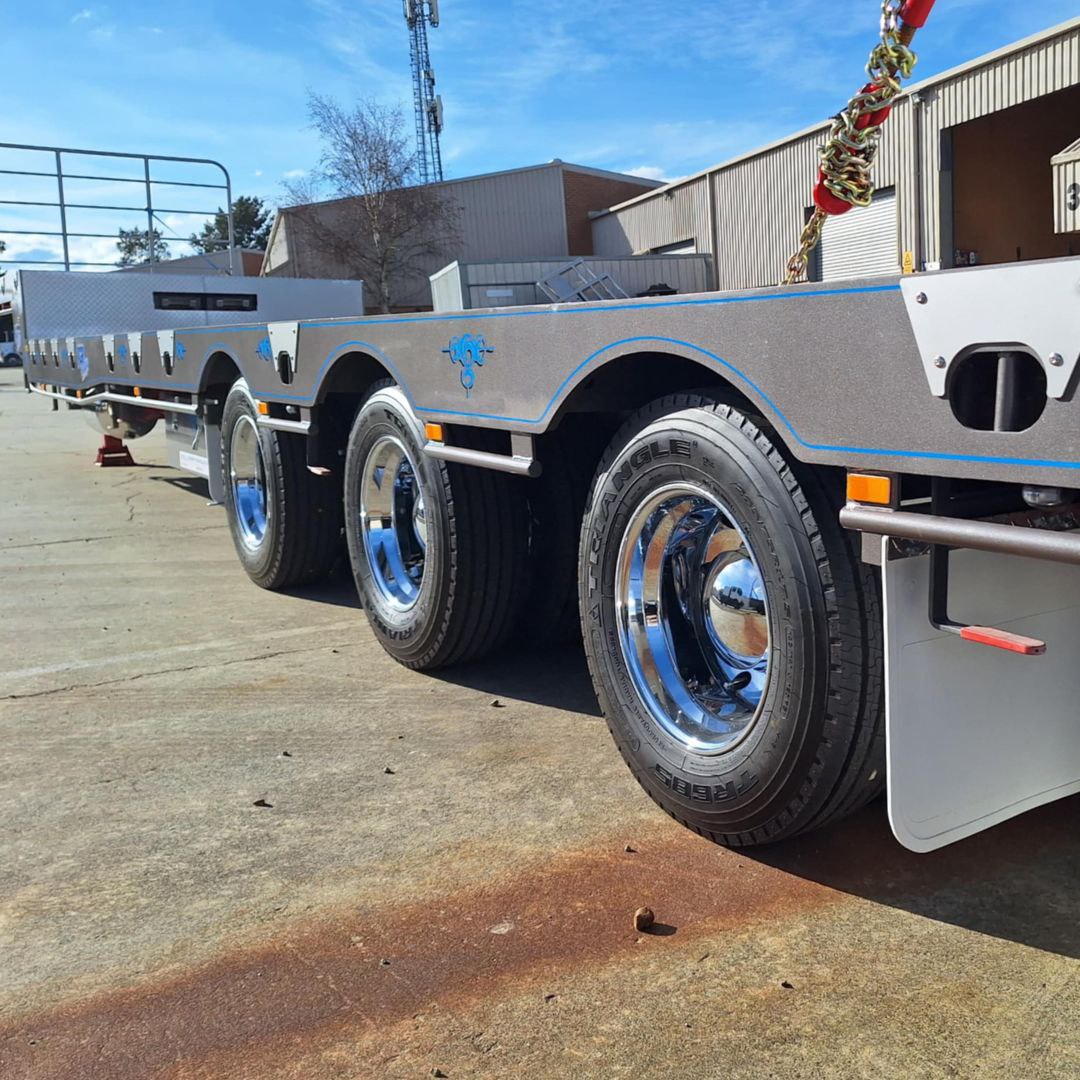

Axles	Fuwa KH 3×11.5T drum brake axles
Track	1850mm

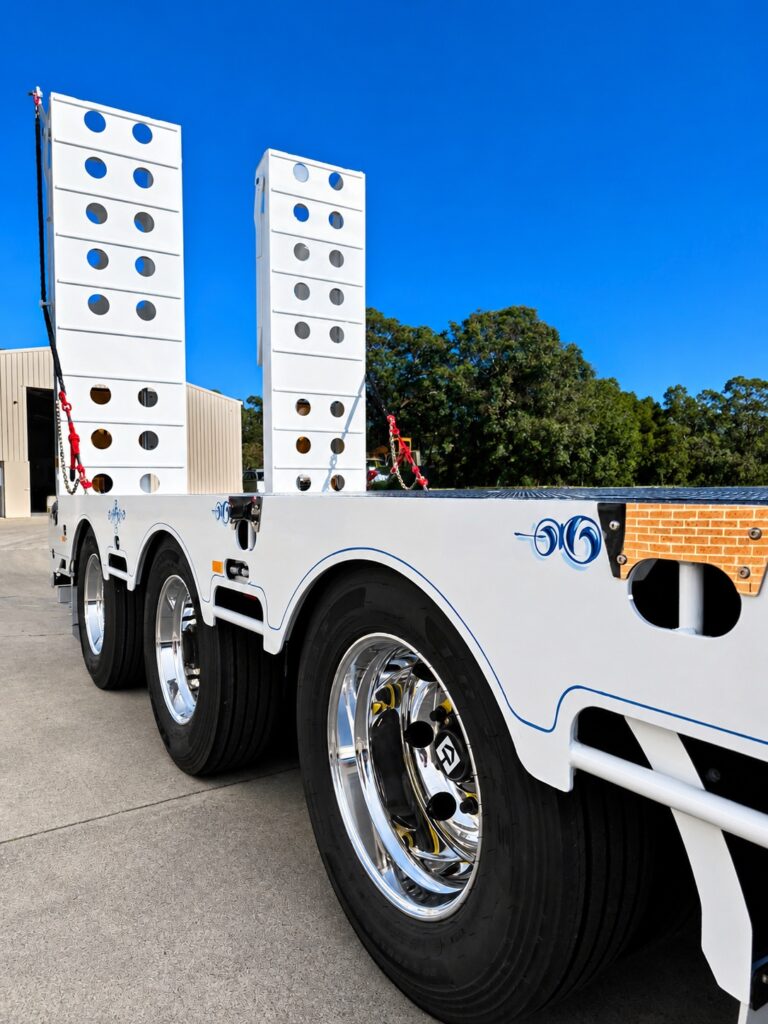

Tyres	Triangle 265/70 R19.5, 18PR – 13 supplied (includes spare)
Rims	Alloy 7.5×19.5 – 13 supplied (includes spare)

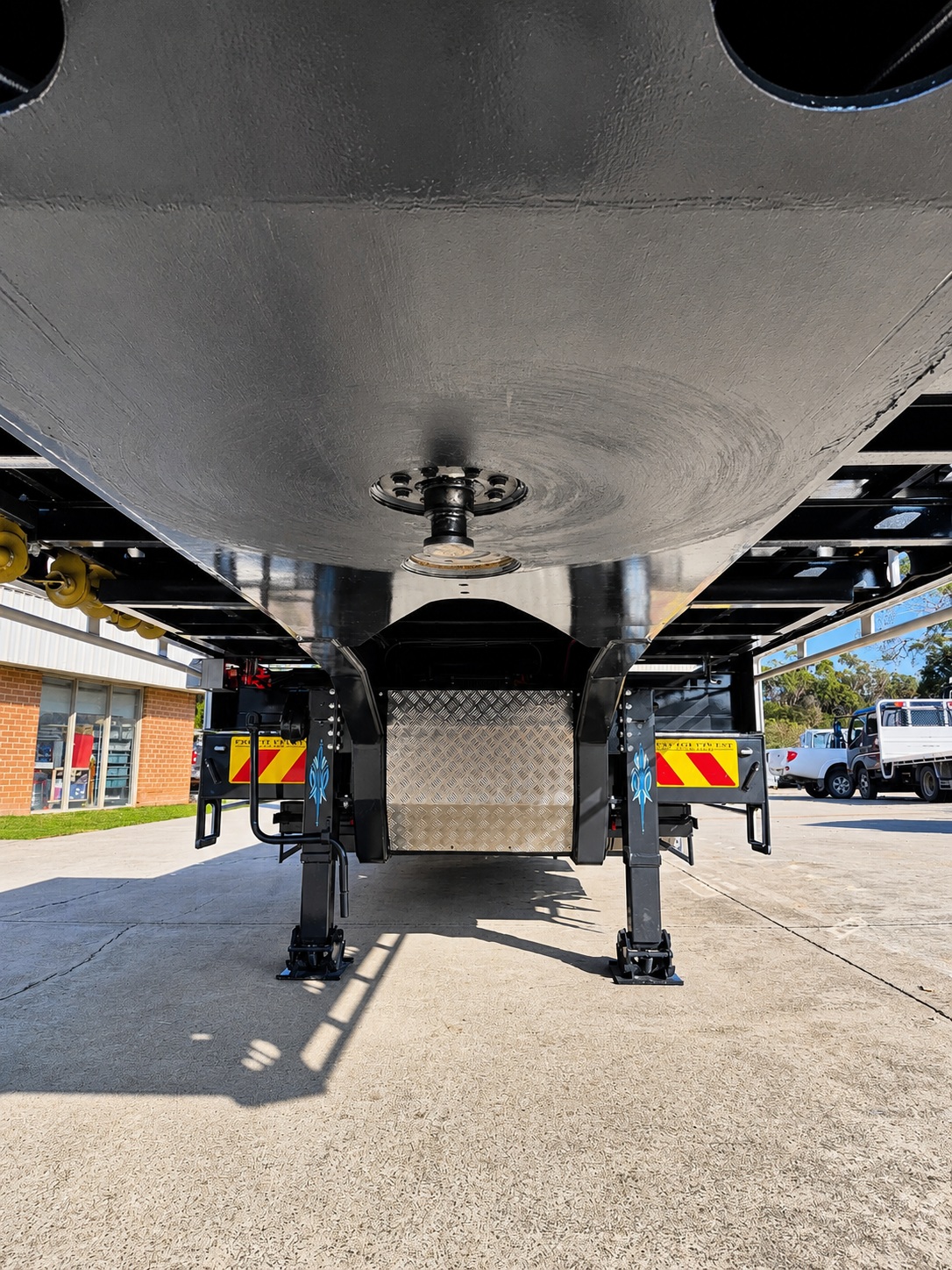

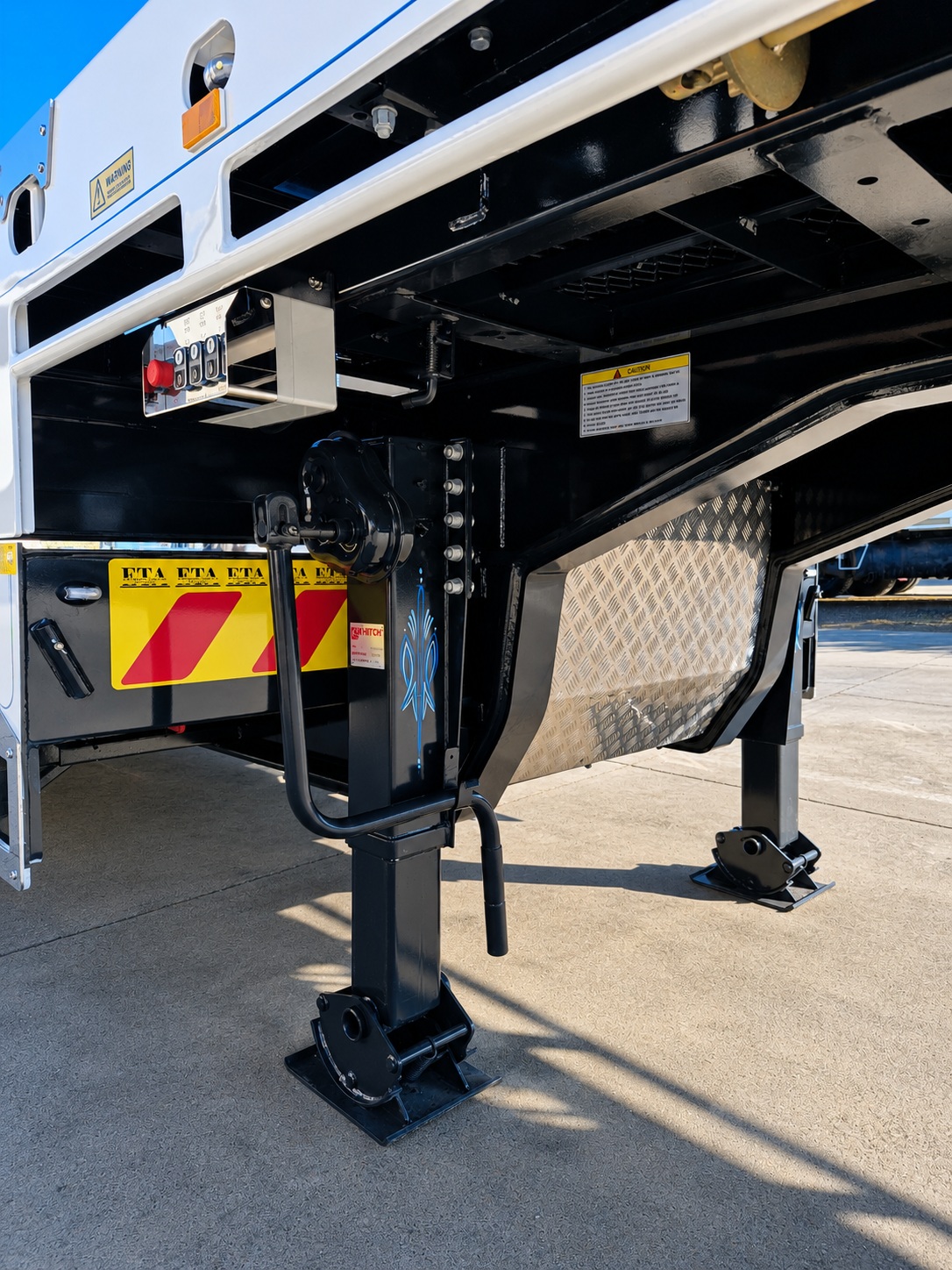

Landing Gear	Fuwa KH250002T, 19” T-foot
King Pin	50mm bolt-in, 2-position

Features

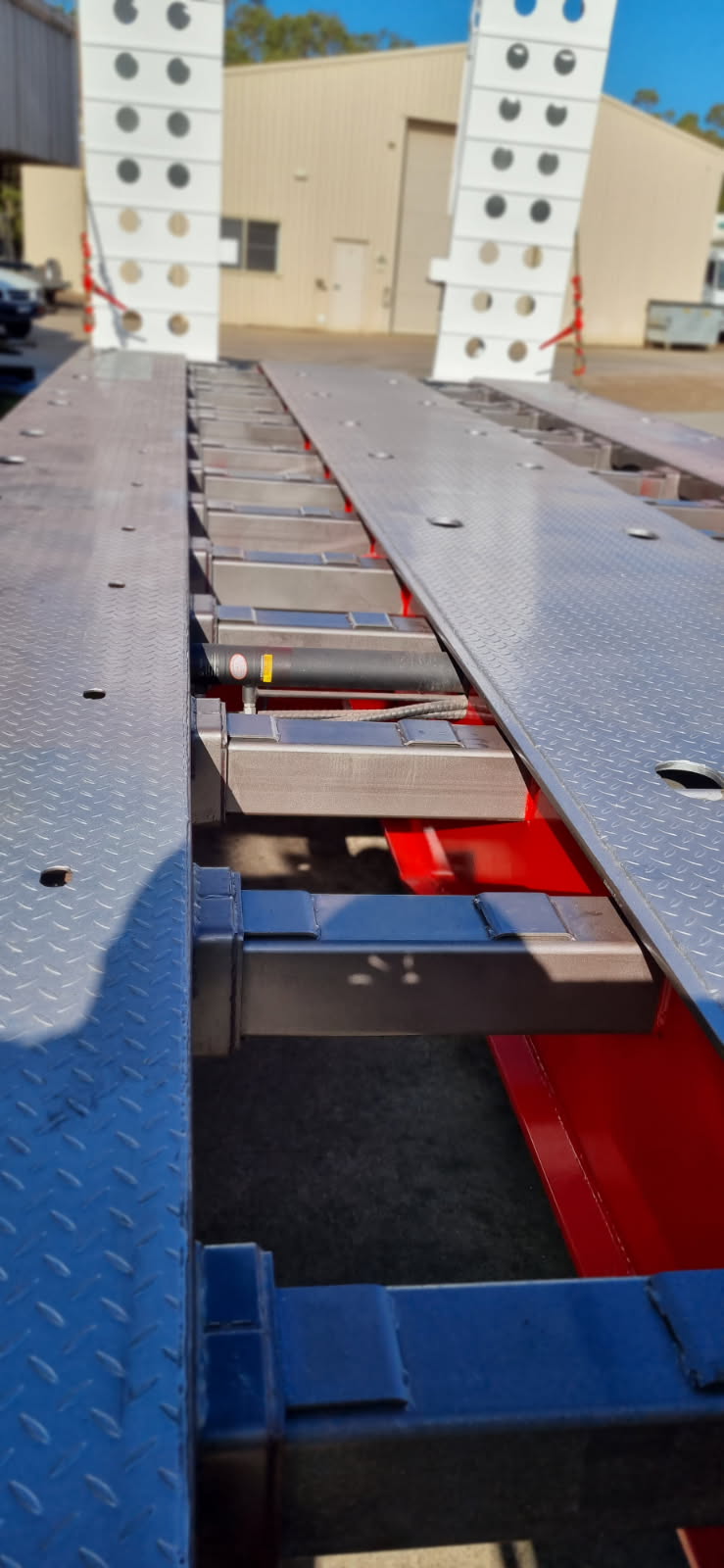

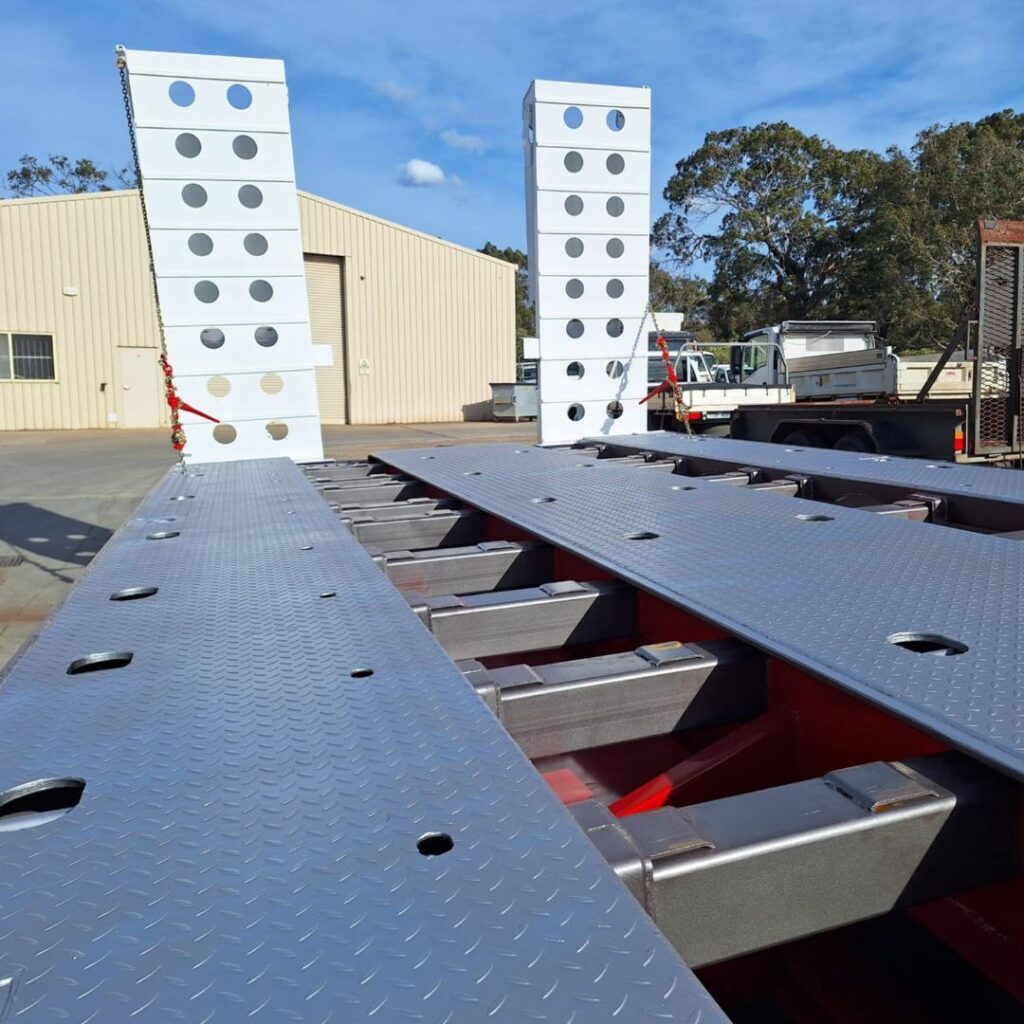

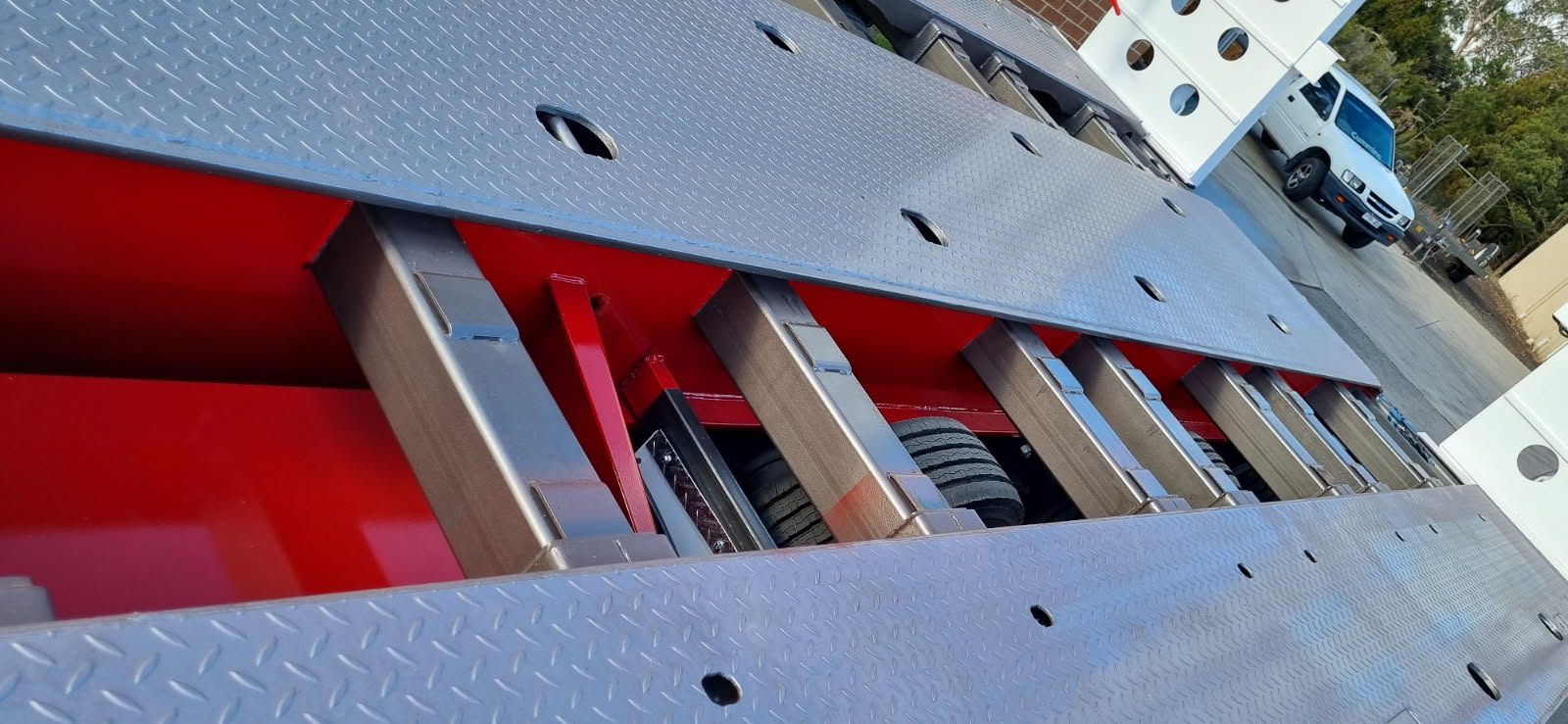

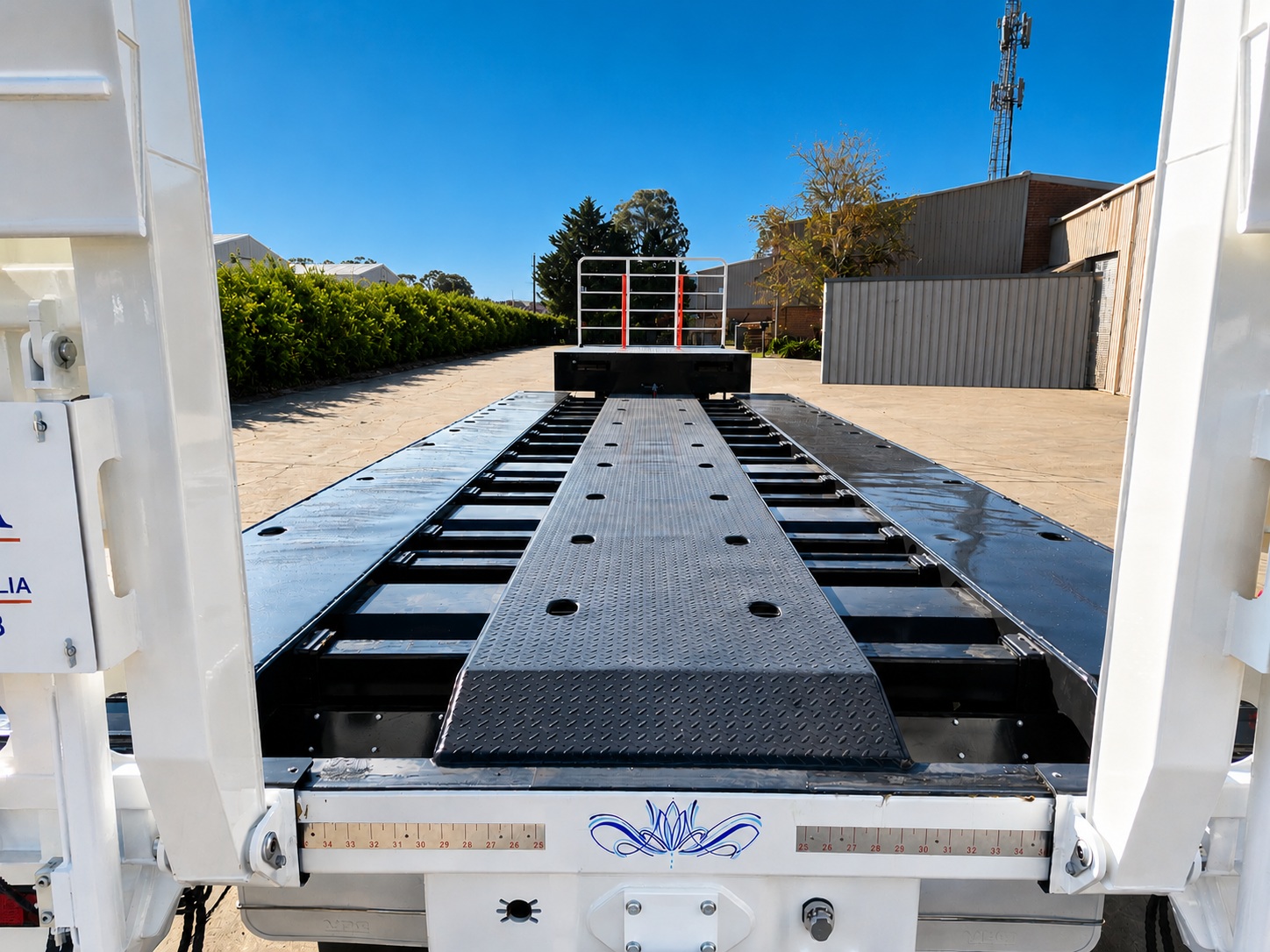

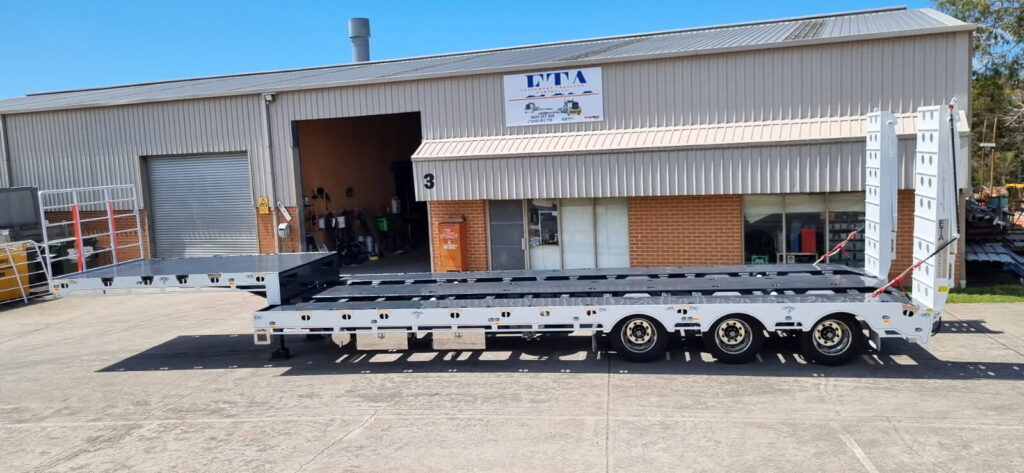

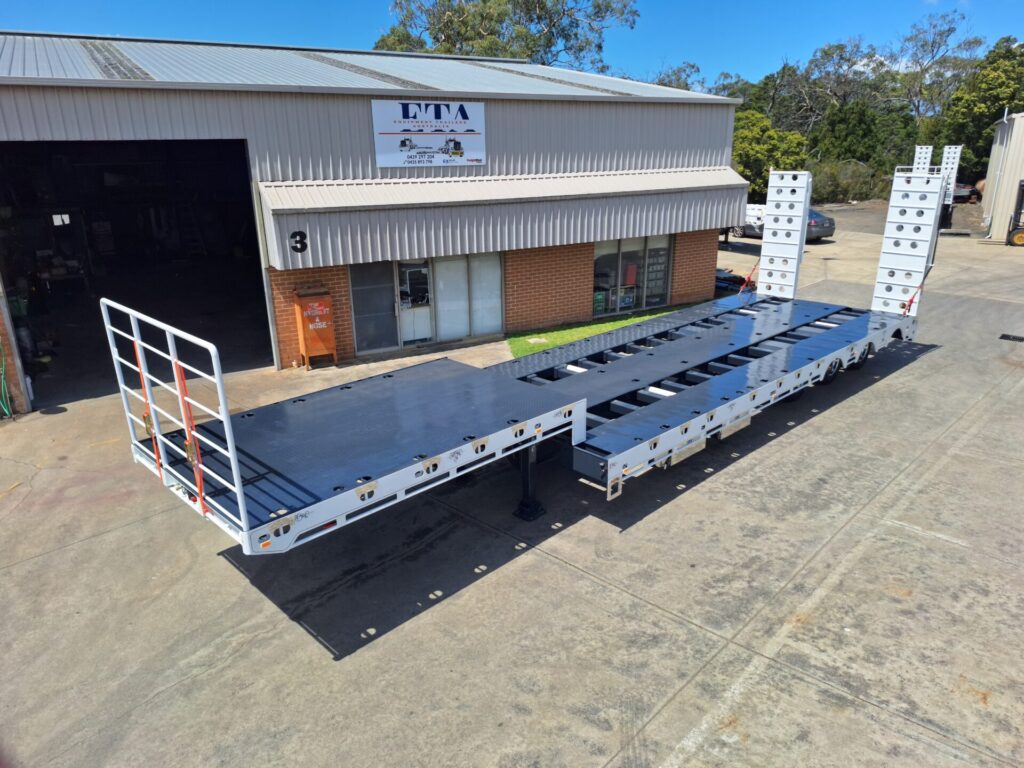

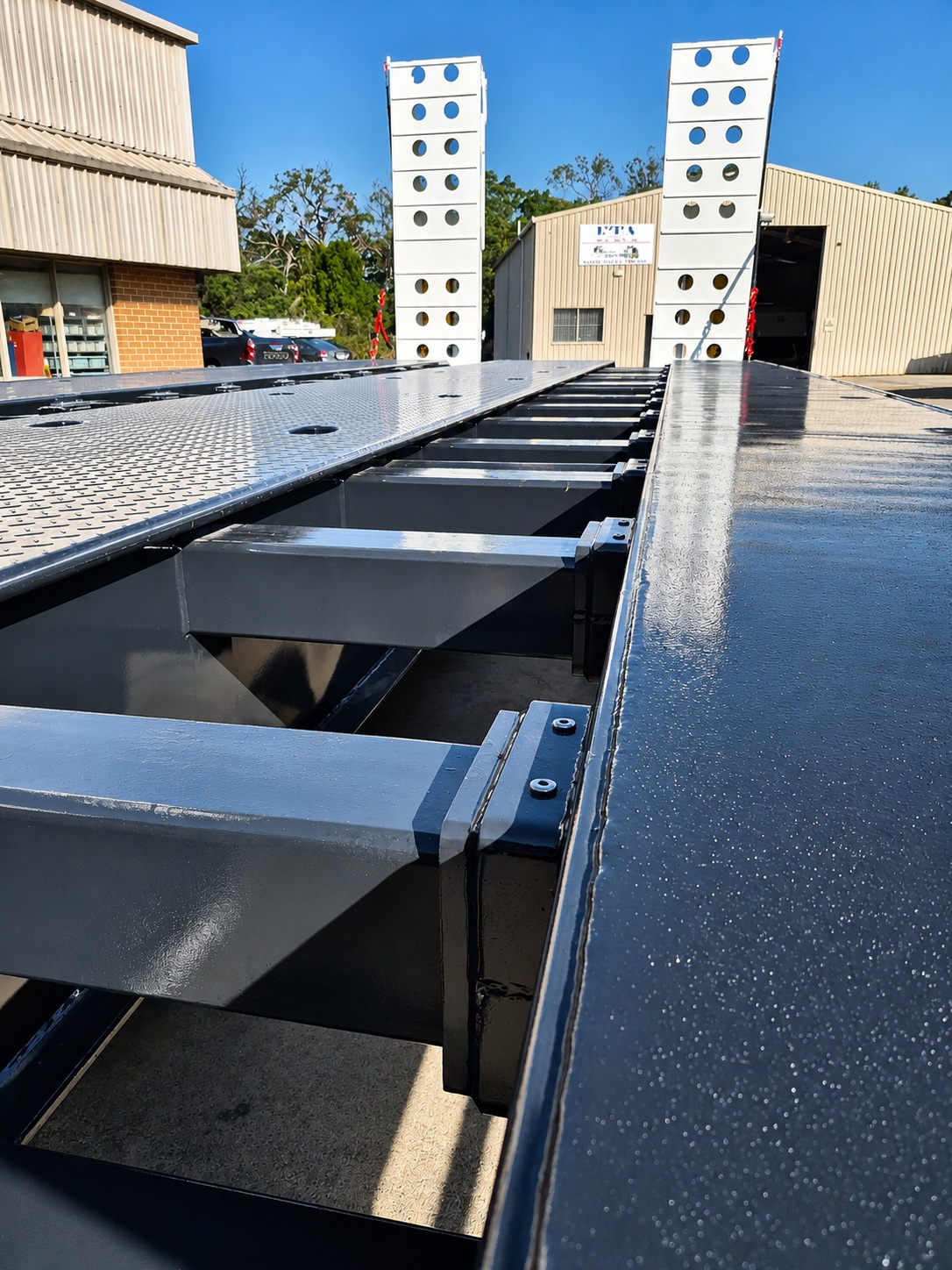

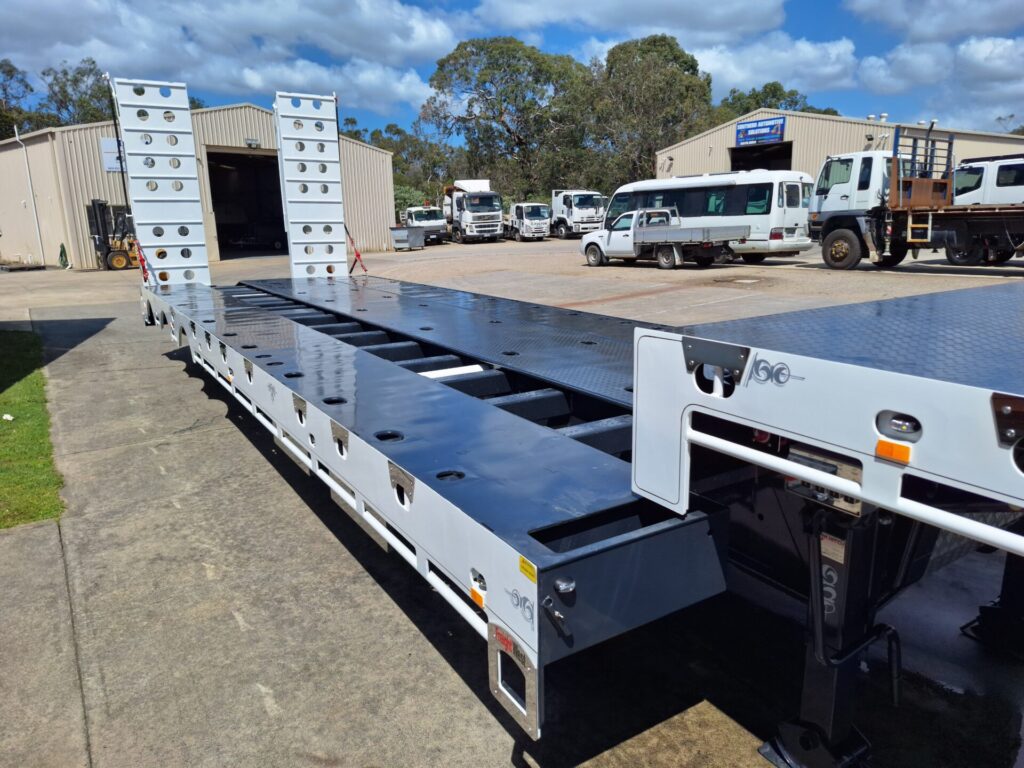

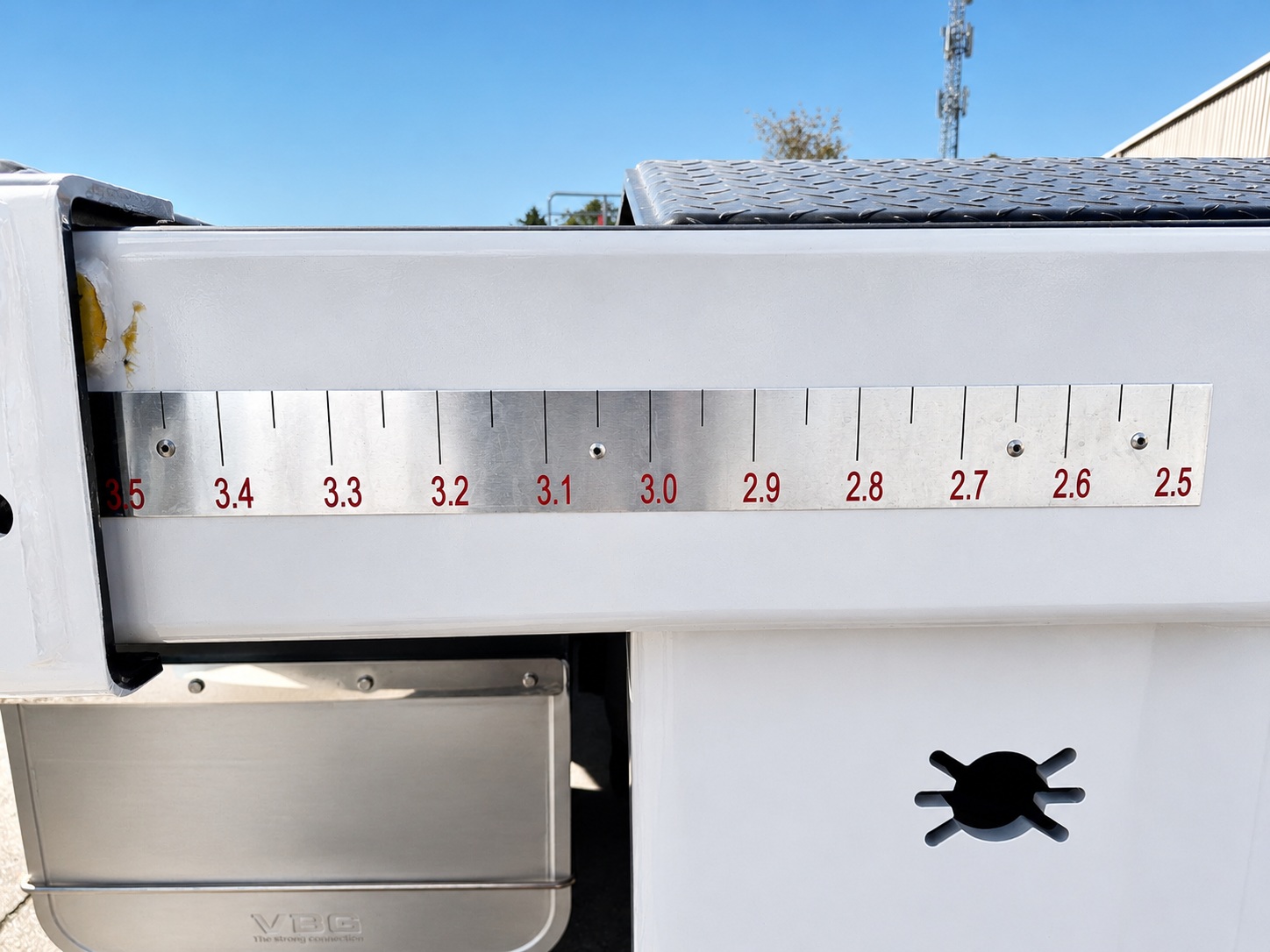

Widening Deck	Hydraulic, from 2,500mm to 3,500mm (4 cylinders)
Tie Downs	3x sliding tie downs (top deck)
Twist Locks	6 rows – suit 1x40ft, 2x20ft, or 1x20ft container
Toolboxes	4 total (1 houses enclosed power pack)
Water Tank	30L

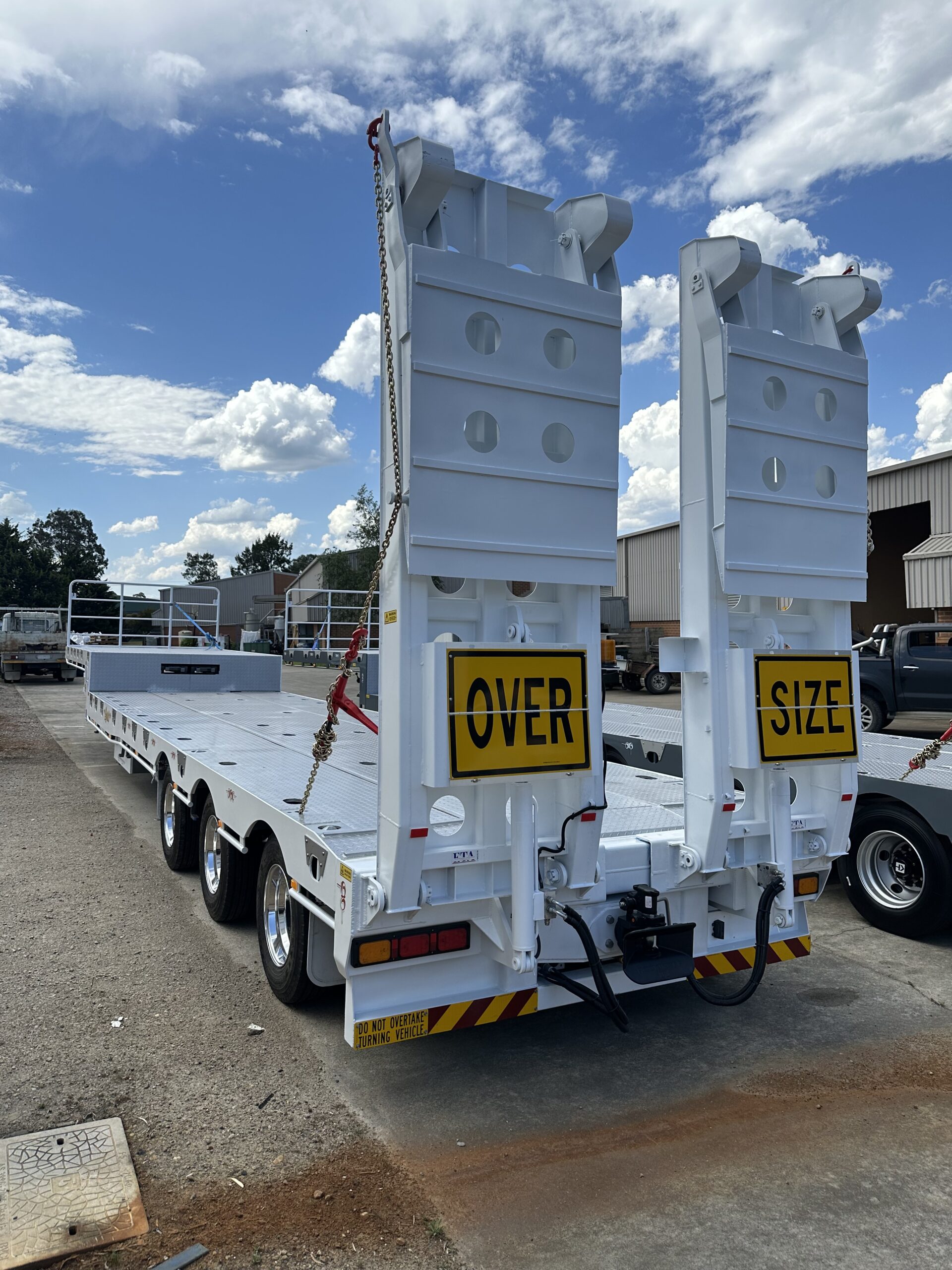

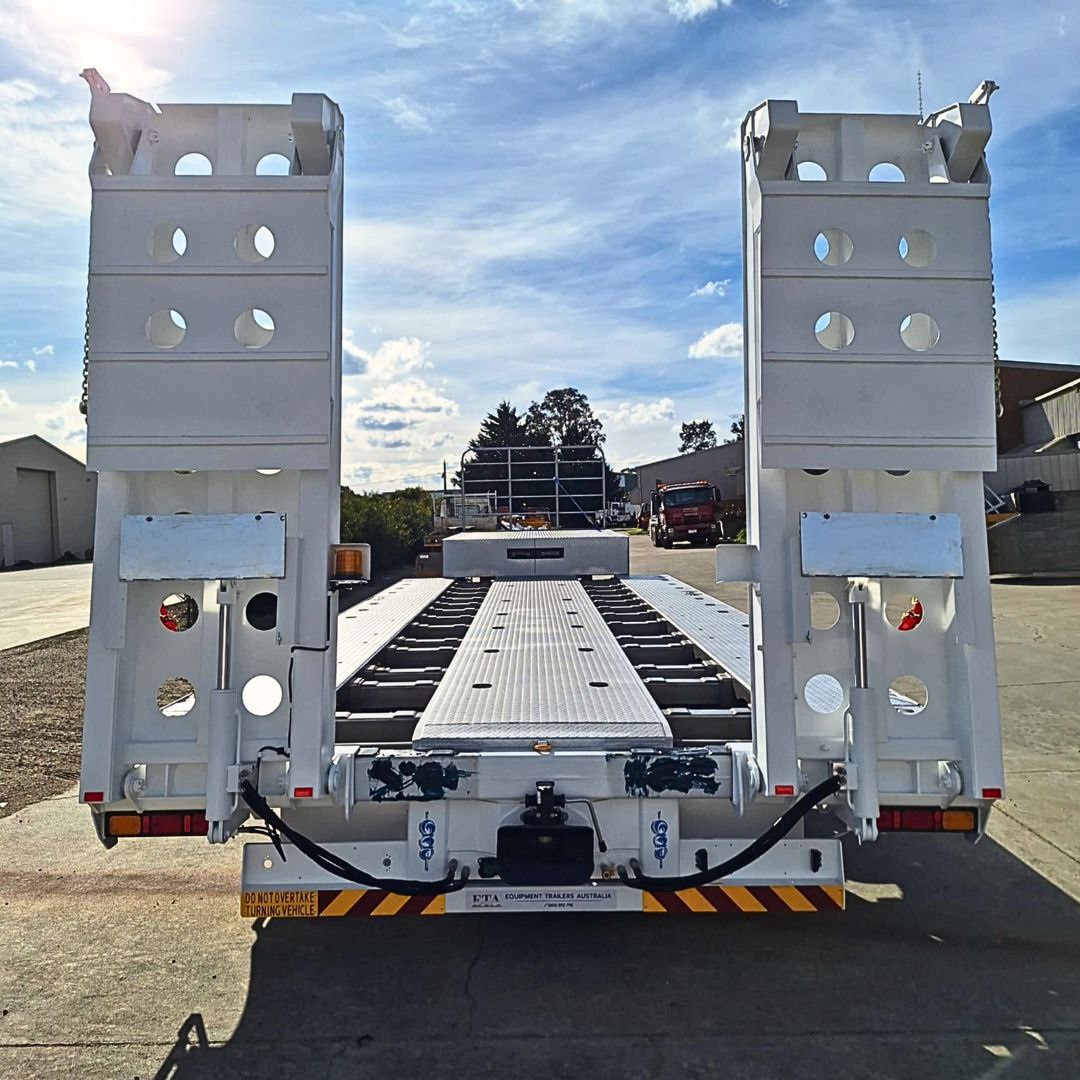

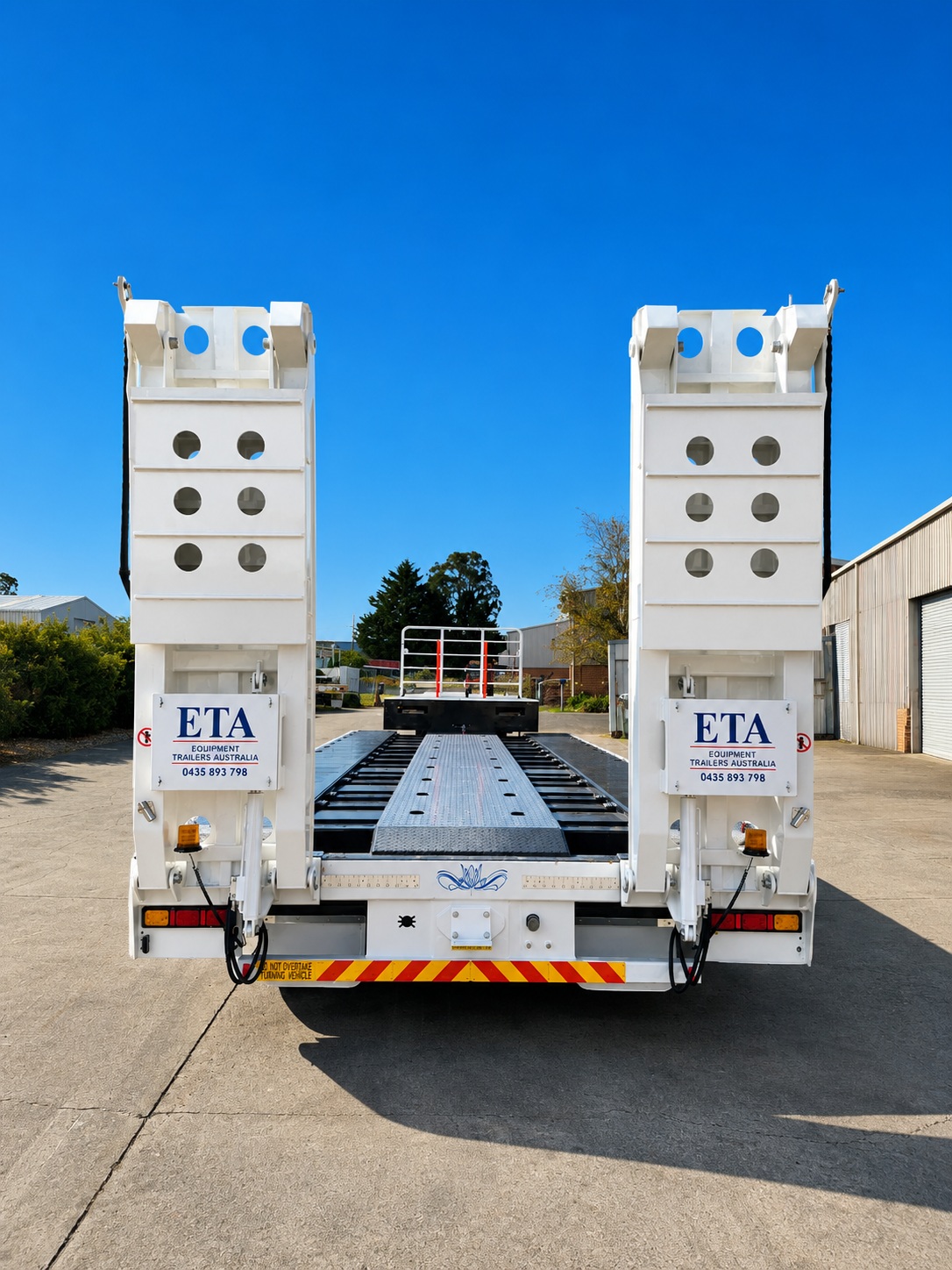

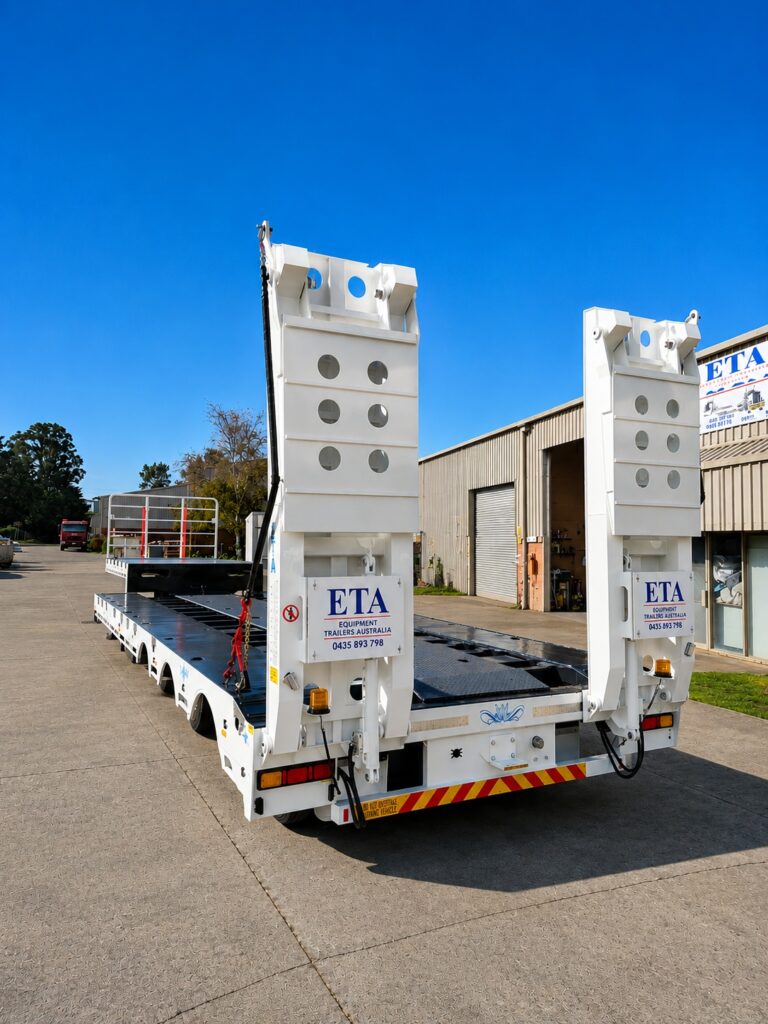

Ramps	Bi-fold, 840mm wide
Front Gate	Drop-in style
Tyre Carrier	2x cut-through beam

Safety & Braking

Brake System	WABCO EBS with emergency relay valve
Brake Chambers	T30/30 (all axles)

Lighting & Electrical

Lighting	Full LED ADR-approved (front, rear, side, license & beacon lamps)
Electrical	12V socket & heavy-duty cabling in conduit

Hydraulic System

Hydraulic Power Pack	12V electric with enclosed 200Ah battery
Hydraulic Cylinders	2x for ramps, 4x for deck widening
Control	Wireless remote
Winch	12V, 9000kg (first layer pull)
